GRACO HUSKY 1050 AODD PUMPS

Blacoh pulsation dampener Logo
Graco Husky 1050 air-operated double diaphragm pumps have 1-inch (25.4 mm) porting connections and feature a stall-free, low-pulsation air valve for smooth, rapid changeover and minimised downtime. The pumps also come with a one-piece centre section, eliminating leaks and reducing maintenance compared to other diaphragm pumps. Husky 1050 is available in aluminum, polypropylene, conductive polypropylene, PVDF, stainless steel and Hastelloy construction to cover a wider variety of working fluids.

KNOW MORE ABOUT GRACO
HUSKY 1050 AODD PUMPS

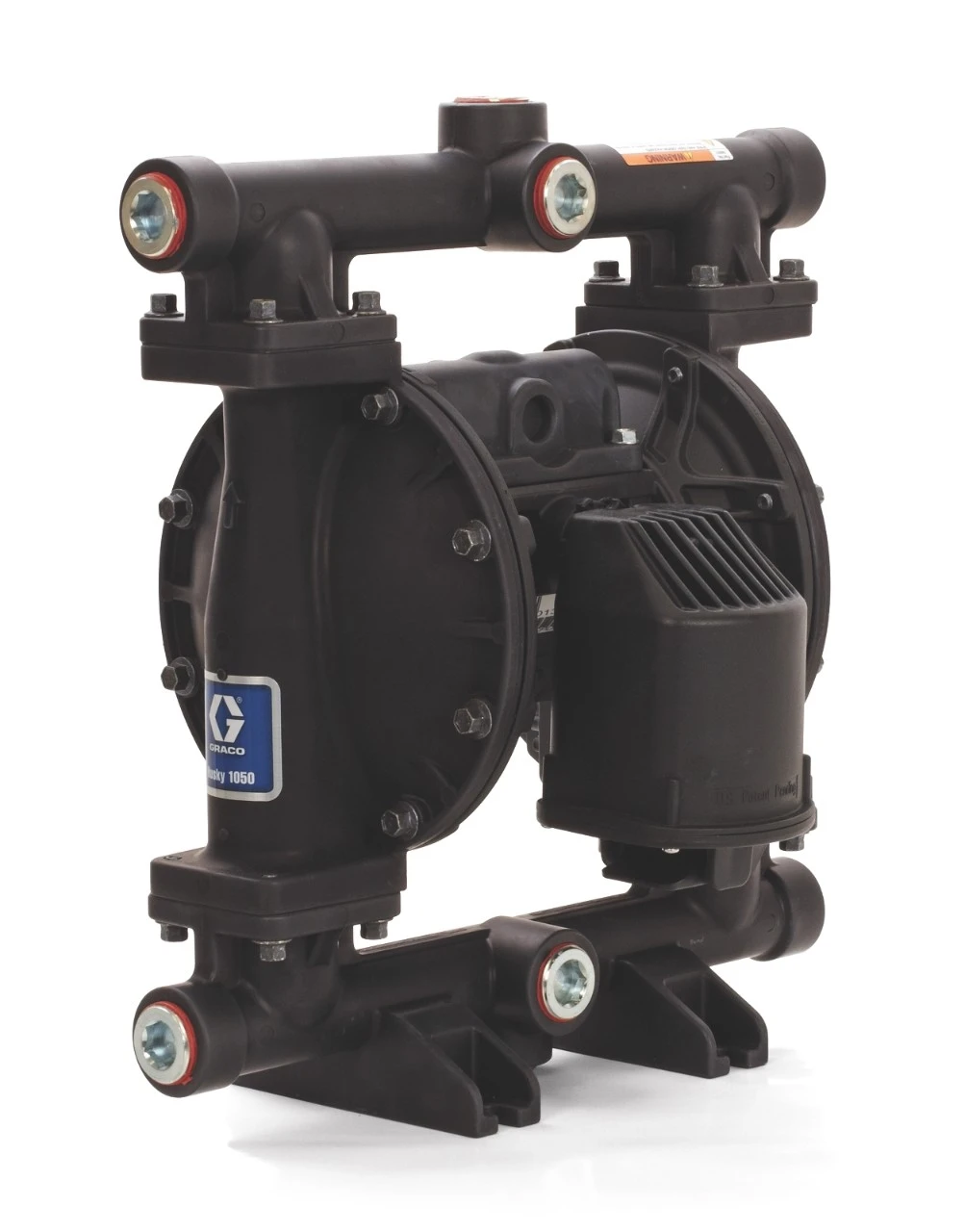

graco-husky-1050-aodd-pumps-02 (1)

Design Advantages

  • Up to 5 times longer diaphragm life compared to other AODDs in its class
  • Bolted design provides even sealing pressure for leak-free operation
  • 30% more efficient than other AODDs
  • Spring-loaded, externally serviceable pilot valves for faster changeover

Available Options

We customise pumps according to your specific application. Get in touch with us today to get a complete list of your options.

  • Material options: diaphragm, fluid section, ball, seat
  • ATEX models available
  • Spare parts and accessories
  • Baseplates/mounting options

Key Specifications

  • Flow: 189 lpm
  • Max Discharge Pressure: 8.6 bar
  • Viscosity: 10000 cps
  • Solid size: 3.175 mm

Applications

  • Antifreeze
  • Detergent
  • Resin
  • Polymer
  • Motor Oil
  • Gear Oil
  • Hydraulic Fluid
  • Automatic Transmission Fluid
  • Cutting Oil
  • Water - Wastewater Treatment
  • Ink and Colorant

Brochures & Manuals

PRINCIPLE OF OPERATION

Graco air-operated double diaphragm (AODD) pumps use compressed air as a power source. The compressed air is shifted from one chamber and then to the other side by a linked shaft. This movement allows the chambrs to move simultaneously. This back-and-forth motion forces liquid out of one chamber and into the discharge piping while simultaneously filling the other chamber with liquid. These pumps use reciprocating elastomeric diaphragms and check valves to pump fluid. The liquid chambers are filled and emptied by fluid that is drawn through a common inlet and discharged through a single outlet.
