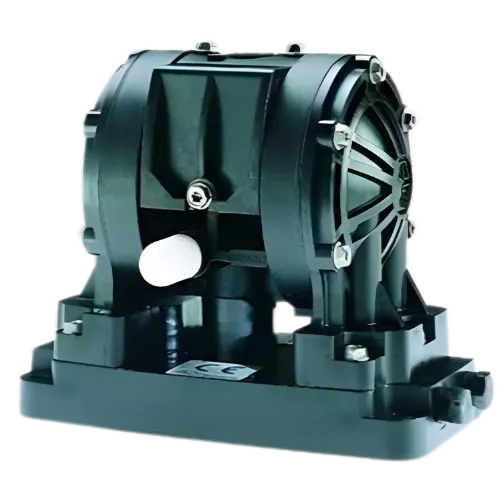

Graco Husky 205 AODD Pumps

Graco Husky 205 air-operated double diaphragm pumps are full of features that help get the job done and are built to save money. The pumps feature spring check valves for superior priming in any mounting configuration.

Husky 205 AODD pumps efficiently handle antifreeze, detergents, hydraulic fluid, motor oil, wastewater treatment, water and ink.

Features & Benefits

Know more about the features & benefits of using Graco Husky 205 AODD Pumps.

PTFE and Santoprene diaphragms for long life and enhanced performance
Spring check valves for priming and operation in any orientation
Interchangeable inlet and outlet
Can be operated remotely via external controller

Available Options

We customise pumps according to your specific application. Get in touch with us to know your options.

Material options: diaphragm, fluid section, ball, seat
Spare parts and accessories
Baseplates/mounting options

Key Specifications

Here are the key specifications of Graco Husky 205 AODD Pumps.

Flow: 19 lpm
Max Discharge Pressure: 7 bar
Viscosity: 500cps
Solid size: 1.5 mm

Applications

Here is a list of industrial applications for which Graco Husky 205 AODD Pumps are commonly utilized.

Paints, stains, coatings, inks and dyes
Chemicals
Acids
Corrosive and abrasive fluids
Lubricants
Ceramic glazes
Sludge, slurry and waste fluid
Soaps, detergents and solvents

PRINCIPLE OF OPERATION

Graco air-operated double diaphragm (AODD) pumps use compressed air as a power source. The compressed air is shifted from one chamber and then to the other side by a linked shaft. This movement allows the chambers to move simultaneously. This back-and-forth motion forces liquid out of one chamber and into the discharge piping while simultaneously filling the other chamber with liquid. These pumps use reciprocating elastomeric diaphragms and check valves to pump fluid. The liquid chambers are filled and emptied by fluid that is drawn through a common inlet and discharged through a single outlet.
