Graco Husky 716 AODD Pumps

Graco Husky 716 AODD Pumps

Graco Husky 716 pumps are 3/4-inch air-operated double diaphragm pumps featuring remote controller capabilities. Like any other Husky pumps, the 716 AODDs are designed to prevent leaks and failures during operation.


They are available in aluminum and 316 stainless steel construction for different transfer applications.


Features & Benefits
Know more about the features & benefits of using Graco Husky 716 AODD Pumps.
  • No mechanical seals to cause fluid leaks or failures
  • Runs quietly at less than 85 dBa with easy-to-use remote muffler
  • Easy-to-service air valve and ball checks
  • Reliable air valve for years of dependable performance
Available Options
We customise pumps according to your specific application. Get in touch with us to know your options.
  • Material options: diaphragm, fluid section, ball, seat
  • Center and end porting options
  • Spare parts and accessories
  • Baseplates/mounting options
Key Specifications
Here are the key specifications of Graco Husky 716 AODD Pumps.
  • Flow: 61 lpm
  • Max Discharge Pressure: 7 bar
  • Viscosity: 5000 cps
  • Solid size: 2.5 mm
Applications
Here is a list of industrial applications for which Graco Husky 716 AODD Pumps are commonly utilized.
  • Lubrication
  • Chemical Transfer
  • Oil Transfer
  • Low-Viscosity Material Transfer

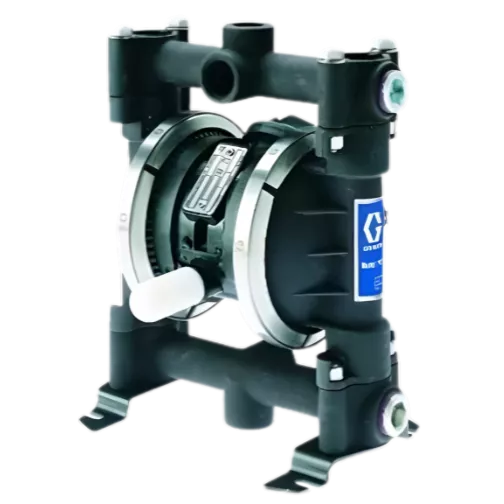

Graco Husky 716 air-operated double diaphragm pump with black housing and stainless-steel components.

Principle of Operation

Graco air-operated double diaphragm (AODD) pumps use compressed air as a power source. The compressed air is shifted from one chamber and then to the other side by a linked shaft. This movement allows the chambers to move simultaneously. This back-and-forth motion forces liquid out of one chamber and into the discharge piping while simultaneously filling the other chamber with liquid. These pumps use reciprocating elastomeric diaphragms and check valves to pump fluid. The liquid chambers are filled and emptied by fluid that is drawn through a common inlet and discharged through a single outlet.
