Quantm i120LP EODD Pumps

The i120 LP, the latest addition to Graco’s revolutionary QUANTM range of electric-operated double diaphragm pumps, is engineered for maximum efficiency. Designed to handle large particles, this model features 2-inch (51 mm) wide ports that allow solids and line-sized particles to pass through smoothly.

By combining Graco’s advanced electric motor technology with the reliable performance of flap-valve systems, the QUANTM i120 LP offers an ideal solution for managing wastewater while meeting sustainability goals. Its electric motor delivers up to 8 times more continuous torque at low speeds compared to traditional motors, ensuring reduced energy consumption. With up to 80% greater efficiency than air-operated double diaphragm (AODD) pumps, the QUANTM i120 LP sets a new standard for performance and energy savings.

Talk to our Experts

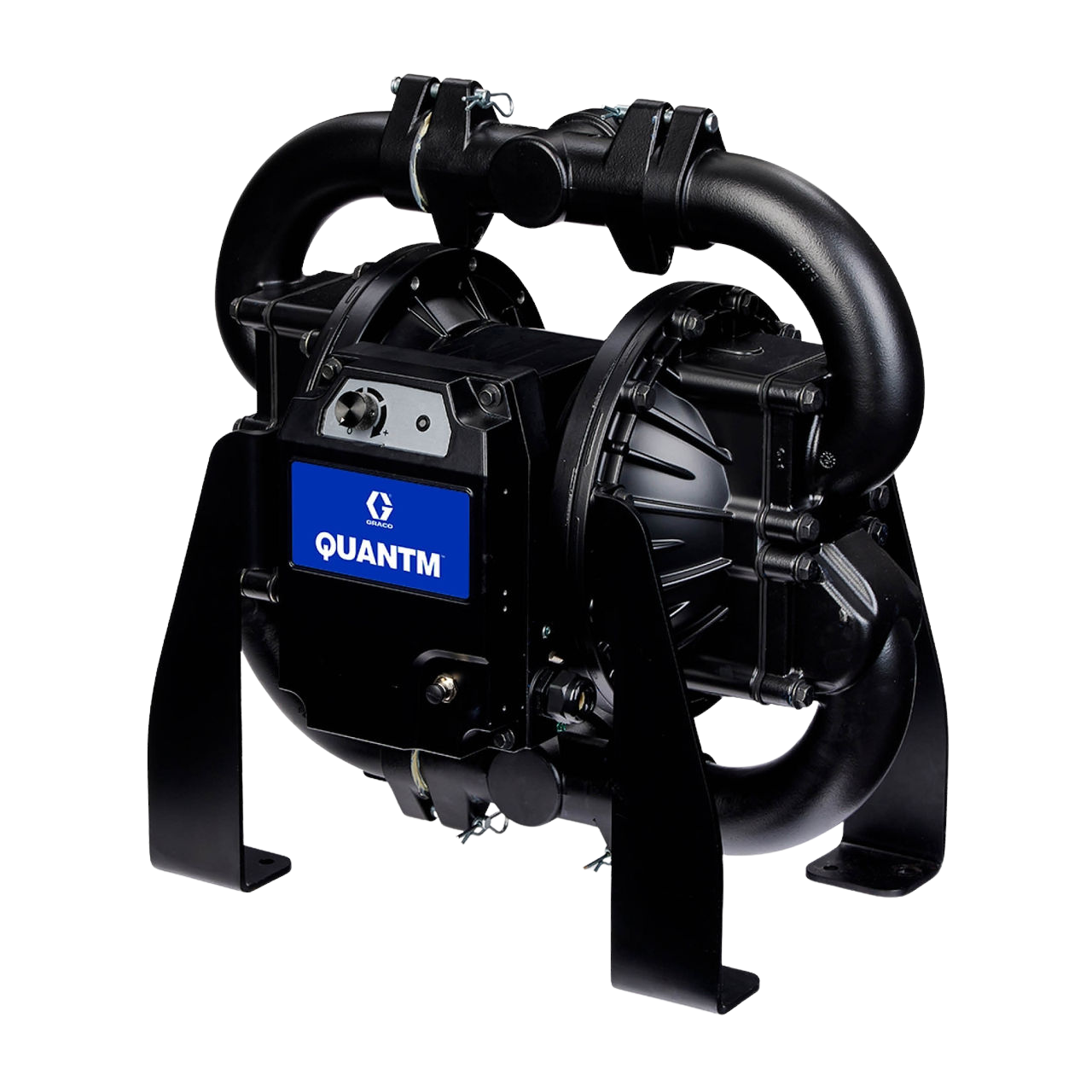

QUANTM i120LP ELECTRIC DOUBLE DIAPHRAGM PUMP
Features
Options
Technical Specifications
Applications

Design Features of Quantm i120LP Pumps

QUANTM pumps feature an efficient electric motor with a simple one-touch knob and an LED indicator that displays system status and onboard diagnostics, making it easy to adjust pump speed and pressure.
QUANTM pumps provide a broad operating range and are available in various materials to handle a wide range of media, including abrasives, solids, and shear-sensitive fluids.
QUANTM pumps are comparable in size to existing AODD pumps, ensuring easy replacement or installation.
The self-priming and seal-less design of QUANTM pumps minimises maintenance and spare parts costs.
QUANTM operates quietly at under 75 dB, helping to reduce plant noise and enhance employee safety and well-being.
QUANTM features intelligent pump control that offers more accurate flow set points and built-in I/O capabilities.
QUANTM is the only electric diaphragm pump on the market that stalls under pressure, eliminating the need for pressure sensors and additional controls. This design reduces downtime by preventing failures caused by clogged lines or closed valves.

Available Options

Optional leak detector for enhanced safety and improved reliability
Diaphragm materials: Buna-N, G.E.T. (Graco Engineered Thermoplastic), Polychloroprene, Santoprene, TPE (Hytrel)
Fluid inlet thread types: NPT, BSPT
Hazardous approval available: ATEX, IECEX, Class1-Division 1
Spare parts and custom accessories

Technical Specifications

Fluid inlet size: 2 inch (51 mm)
Maximum flow rate: 454 l/min
Maximum fluid operating temperature: 82 °C
Maximum fluid pressure: 4.1 bar
Volate: 200-240 VAC 3Ph

Transfer of waste and trash in:

Mines
Sumps
In-plant
