Griswold's 811 ANSI Series

The 811 ANSI Pumps from Griswold are designed for versatility and lasting performance. They are also engineered to be easy to maintain and repair. Many of the pump components are interchangeable with other ANSI models to simplify inventory and reduce costs. The series is available in a variety of sizes, capacities, and materials to accommodate practically every fluid transfer application.

Each ANSI pump is subjected to Griswold’s strict quality assurance programs to ensure the highest standard and most accurate tolerances.

Features & Benefits

Know more about the features & benefits of using Griswold's 811 ANSI Series.

ASME (ANSI) B73.1 compliant
Certified testing per Hydraulic Institute (HI) standards
Extra-large capacity epoxy-coated oil sump
Registered alignment between frame and adapter
Fully open impellers with rear adjustment
Dynamically-balanced impellers

Available Options

We customise pumps according to your specific application. Get in touch with us to know your options.

Extensive range of models
Mechanical seal options
Design options for abrasive and chemicals
Accessories and spare parts
Power frame option
Baseplate

Key Specifications

Here are the key specifications of Griswold's 811 ANSI Series.

MAX FLOW 1,590 m³/h
MAX HEAD 275 m
MAX TEMPERATURE 260°C

Applications

Here is a list of industrial applications for which Griswold's 811 ANSI Series are commonly utilized.

Food and beverage
Dairy
Pharmaceutical
Chemical
Water and wastewater
Transportation

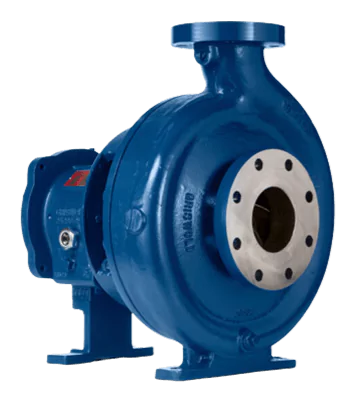

griswold-centrifugal-process-pumps-811-ansi-series transp

PRINCIPLE OF OPERATION

Centrifugal pumps are used to induce flow or raise a liquid from a low level to a high level. These pumps work on a very simple mechanism. A centrifugal pump converts rotational energy, often from a motor, into energy in a moving fluid.

The two main parts that are responsible for the conversion of energy are the impeller and the casing. The impeller is the rotating part of the pump, and the casing is the airtight passage that surrounds the impeller. In a centrifugal pump, fluid enters the casing, falls on the impeller blades at the eye of the impeller, and is whirled tangentially and radially outward until it leaves the impeller into the diffuser part of the casing. While passing through the impeller, the fluid is gaining both velocity and pressure.
