Grundfos’ Booster Sets

Grundfos offers a range of extremely reliable centrifugal booster sets for hospitals, high-rise apartment blocks, irrigation systems and other commercial and district purposes where there is a need for constant pressure to meet varying demands on the water supply. The boosters are suitable for pressure boosting from above ground rainwater tanks or from mains water. Available in single equipment or an assembly of several booster pumps, these products ensure a constant supply of freshwater while offering different features and benefits in relation to performance, comfort, and convenience.

industrial

Know more about GRUNDFOS
BOOSTER SETS Series

Design Advantages
  • Constant pressure
  • Low-energy consumption
  • Many advanced control functions
  • Intuitive control interface
  • Wetted parts in stainless steel
  • Hard-wearing seals
Available Options

We customise pumps according to your specific application. Get in touch with us today to get a complete list of your options.



  • Materials options
  • Accessories and spare parts
  • Baseplate/mounting
Key Specifications

MODELS

MAX FLOW

MAX HEAD

LIQUID TEMP

MAX PRESSURE

Hydro Solo-S

24 m³/h

133 m

0 .. 70 °C

16 bar

Hydro Multi-E

105 m³/h

161 m

0 .. 60 °C

25 bar

Hydro MPC

893 m³/h

161 m

0 .. 60 °C

16 bar

CMB, CMBE

17 m³/h

98 m

0 .. 60 °C



SCALA

7 m³/h

55 m

0 .. 45 °C

10 bar

JP

6 m³/h

50 m

0 .. 60 °C

6 bar

Applications
  • Pressure boosting
  • Water transfer
  • Water supply systems
  • Irrigation systems
  • Water treatment systems
  • Fire fighting systems
  • Industrial plants
  • HVAC systems
  • Wash and clean
  • Drip/Micro Spray
  • Frost protection
  • Pivot
  • Agricultural Surface Water
crne
INDUSTRIAL

Our range of available
booster pumps

HYDRO SOLO-S

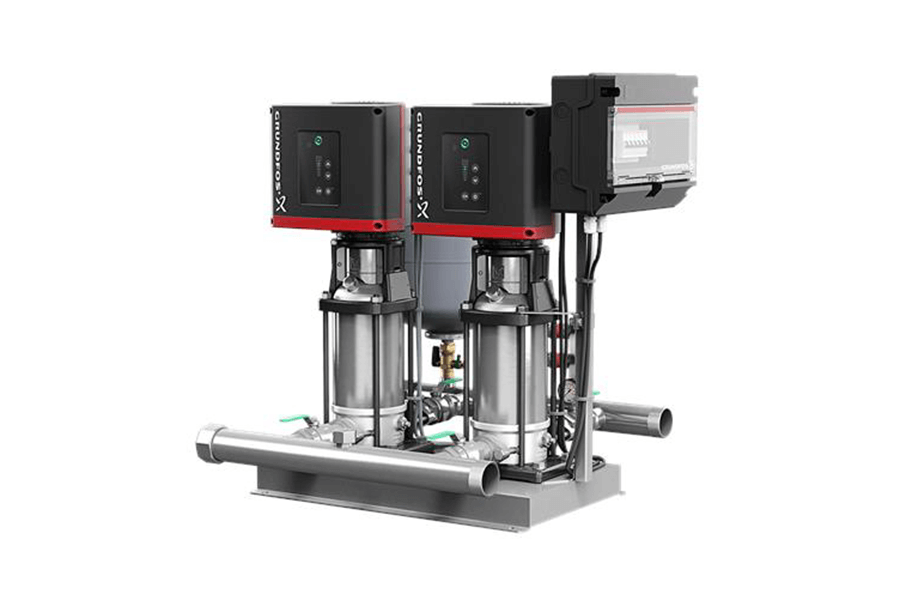

HYDRO MULTI-E

HYDRO MPC

CMB, CMBE

SCALA

JP

PUMP

Principle of Operation

Grundfos range of booster pumps are centrifugal type hence use the same working principle. Booster pumps boost water pressure and, in many cases, improves the flow rate. They rely upon one or more impellers to draw the pumped fluid into the intake of the pump, and to boost its pressure as the fluid passes through the impeller and the volute or diffuser casing. Some are single-stage, meaning that they have a single impeller. These are generally used in applications where the amount of additional pressure (head) that is required is not significant. There are also multi-stage configurations involving more than one impeller, which are used to deliver higher heads such as would be required to move water up to substantially higher elevations or through much longer pipelines.
