Grundfos’ Circulator

Grundfos circulator pumps are designed for best-in-class efficiency with low maintenance. Compared to conventional circulators, these rotor pumps can cut your energy costs by up to 80 % while delivering noise-free performance. The stainless steel and bronze pumps are good for moving potable water in open-loop circulation due to their excellent rust and corrosion resistance. Meanwhile, the cast iron pumps are the standard choice for close-looped circulation due to the material’s low cost and good performance in handling de-oxygenated water.

industrial

Know more about GRUNDFOS
CIRCULATOR Series

Design Advantages
  • 3 speed variations: single-speed, three-speed, variable speed
  • Can be equipped with Isolation valve option for easier servicing
  • Circulator pump timer to operate unit at pre-set times
  • Some models have check valves for preventing water backflow
  • Can be installed horizontally or vertically
  • Excellent reliability and efficiency
Available Options

We customise pumps according to your specific application. Get in touch with us today to get a complete list of your options.



  • Materials options
  • Aqua stat kit
  • Connection options
  • Accessories and spare parts
  • Baseplate/mounting
Key Specifications

SERIES/VARIANTS

MAX FLOW

MAX HEAD

LIQUID TEMP

MAX PRESSURE

UPS (SINGLE-SPEED)

14 m³/h

10 m

-25 .. 110 °C

10 bar

UPS SERIES 200

63 m³/h

17 m

-10 .. 120 °C

10 bar

UPS (N)

14 m³/h

10 m

-25 .. 110 °C

10 bar

UPS (B)

29 m³/h

9 m

-10 .. 120 °C

10 bar

UPS (THREE-SPEED)

63 m³/h

17 m

-10 .. 120 °C

10 bar

ALPHA

4 m³/h

8 m

0 .. 110 °C

10 bar

MAGNA

81 m³/h

18 m

-10 .. 110 °C

16 bar

COMFORT

0.50 m³/h

1 m

0 .. 95 °C

10 bar

Applications
  • Commercial heating
  • Domestic heating
  • Industrial heating
  • Commercial air conditioning
  • Domestic and commercial hot water re-circulation
  • District cooling
  • District heating

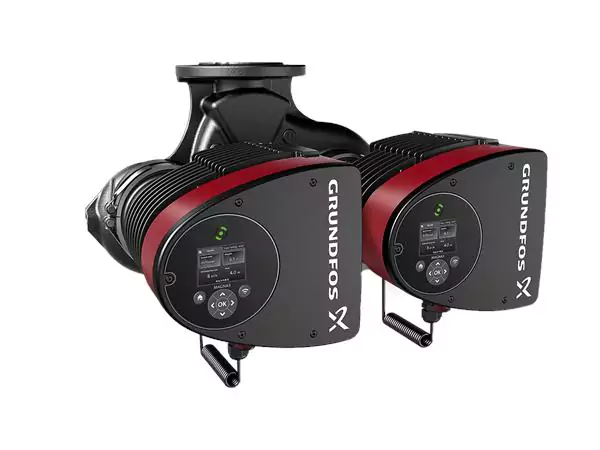

magna3d
INDUSTRIAL

Our range of available
Circulator pumps

UPS (SINGLE-SPEED)

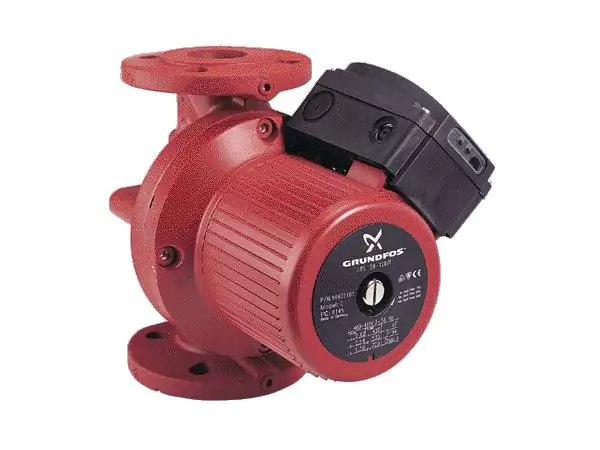

UPS SERIES 200

UPS (N)

UPS (B)

UPS (THREE-SPEED)

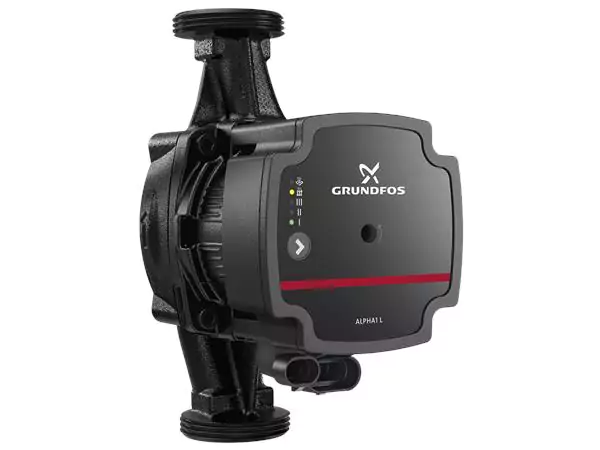

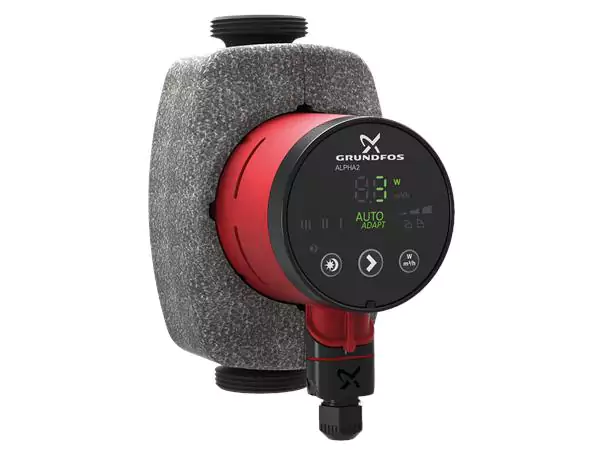

ALPHA

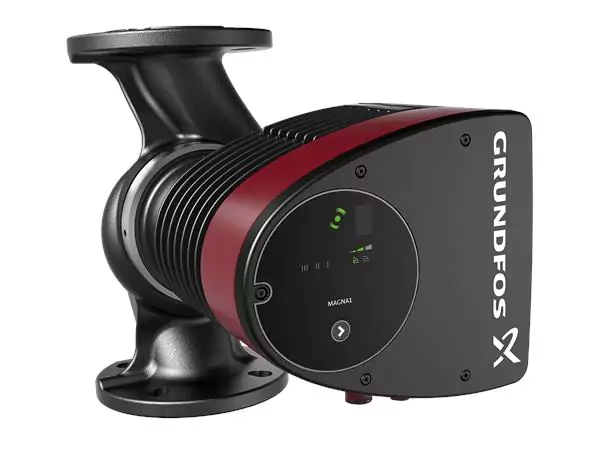

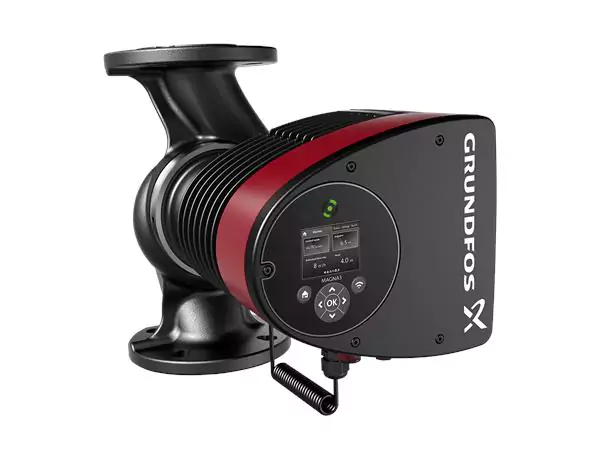

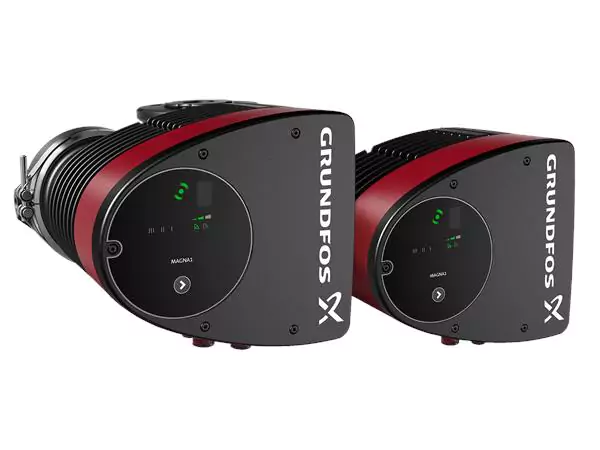

MAGNA

COMFORT

PUMP

Principle of Operation

Circulator pumps are inline centrifugal type pumps and are heavily used in HVAC applications. Fluid from source enters the pump via the inlet and enters the eye of the impeller, this water will be trapped between the blades of the impeller within the pump housing.

The motor rotates the shaft and the impeller. Kinetic energy is formed as the impeller rotates and this energy is transferred to the fluid. The kinetic energy and fluid velocity continue to increase as the fluid is forced to the edge of the impeller vanes. By the time the water reaches the edge of the impeller, it has already reached a very high velocity. Fluid then falls into the volute, hitting the pump casing walls. As the water moves outwards and off the impeller, a low-pressure region is created at the center of the impeller, pulling more water into the pump. This now creates the continuous flow in a centrifugal pump.

OBJECTIVES

SERVICING YOU ANYWHERE
IN AUSTRALIA

All-Pumps offers bespoke solutions to your manufacturing processes. Whether you need a new pump, replacement part, repair services, system design, or monthly maintenance, call our professionals!

Our customer support services set us apart, we take responsibility to give you the best experience possible.

How our experts can help you:

  • Design and cost a system or project
  • Customise and engineer solutions for your specific application
  • Provide spare parts and maintenance services
  • Conduct Site-Wide Pump Health Audits with our Nexus Program
  • Pump Manuals and Technical Guides

And so much more!
