Grundfos Inline Single Stage

Grundfos is deemed the largest pump manufacturer in the world with more than 19,000 employees globally and an annual production of over 16 million pump units.
A Grundfos inline single-stage pump is a compact, close-coupled centrifugal pump designed for applications such as heating, cooling, and commercial air conditioning. It offers several benefits, including a space-saving design, robust construction, and high efficiency, which lead to lower operating costs and a reduced environmental impact. The close-coupled design and easy installation simplify both operation and maintenance, while advanced features like frequency converters enhance efficiency and reliability.

Design Advantages

  • The inline design allows for easy installation within existing pipework, minimizing space requirements.
  • Constructed from durable materials such as stainless steel, these pumps ensure longevity and resistance to corrosion.
  • They are equipped with energy-efficient motors and optimized hydraulics to minimize energy consumption and reduce operating costs.
  • Some models feature built-in frequency converters and integrated motor protection for improved performance and reliability.

KEY SPECIFICATIONS

  • Liquid temperature: -40 - 150 °C
  • Max. flow: 1787 m³/h
  • Max. head: 72 m
  • Max. operating pressure: 25 bar

Applications

  • Heating and Cooling
  • District Energy
  • Commercial Air Conditioning
  • Water Pressure Boosting
Talk to our experts
Abaque Peristaltic Pump HD25 model

Grundfos Inline Single StageAvailable Product Range

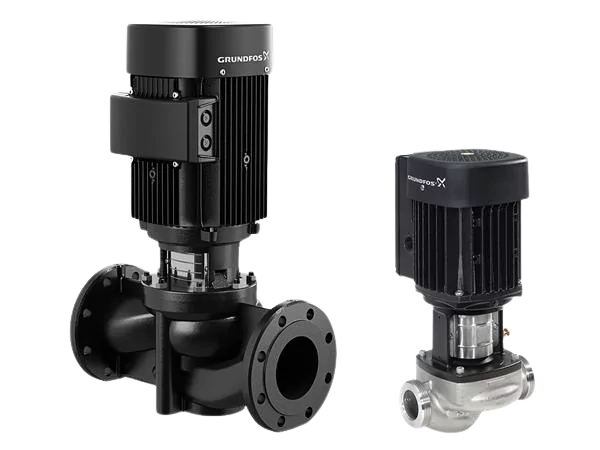

Grundfos Inline Single Stage - TP (B), (I) model

TP (B), (I)

The TP (B) (I) vertical in-line pump series features a pump housing made of bronze or stainless steel, designed to resist corrosion in hot water recirculation systems and lightly acidic industrial applications. The specially constructed shaft seal chamber optimizes water circulation without the need for external piping, thereby extending the life of the shaft seal.

ADVANTAGES

  • TP (B)/(I) pumps effectively resist corrosion, ensuring long-lasting, high performance.
  • Enhanced efficiency and extended shaft seal life with the use of robust pump shaft and replaceable wear ring.
  • The close-coupled design decreases system sensitivity to impurities in the pumped liquid.
  • These pumps are highly efficient, with low energy consumption and minimal noise.

Key Specifications

  • Liquid temperature: -25 - 140 °C
  • Max. flow: 48 m³/h
  • Max. head: 10 m
  • Max. operating pressure: 16 bar

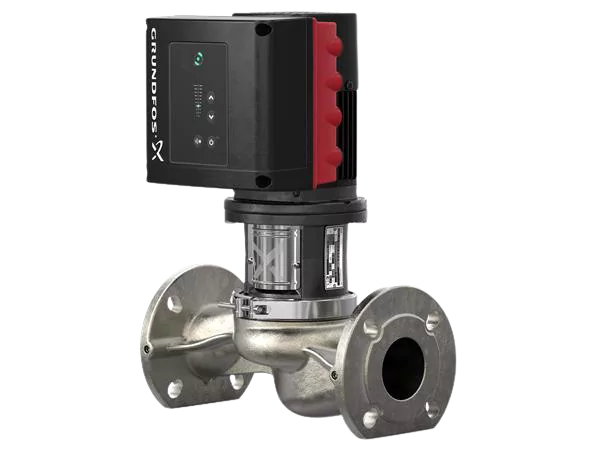

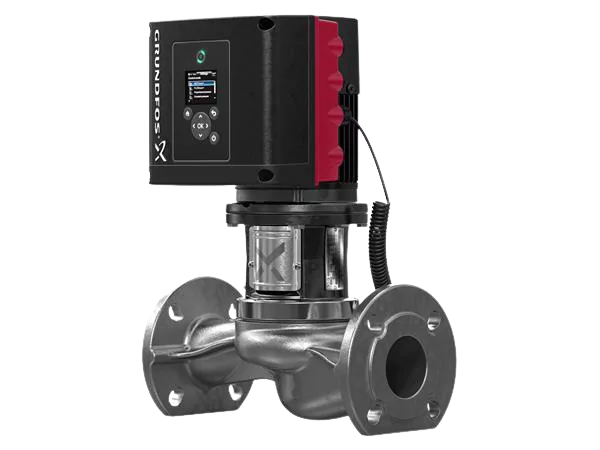

Grundfos Inline Single Stage - TPE2 (I) model

TPE2 (I)

The TPE2 (I) stainless steel inline pump is equipped with a frequency converter that significantly optimises energy consumption, preventing wasteful operation and extending pump life. This durable unit is suitable for various applications, including hot water recirculation, domestic and commercial water supply, as well as heating and cooling systems.

ADVANTAGES

  • TPE2 (I) automates flow and pressure management using external sensor inputs.
  • Integration is straightforward with the option to mount the CIM (Communication Interface Module) for connections to building management systems (BMS).
  • The front-mounted wiring box provides easy access for quick installation.
  • Electro-coated surfaces offer protection against corrosion, enhancing the pump's lifespan.

Key Specifications

  • Liquid temperature: -25 - 120 °C
  • Max. flow: 36 m³/h
  • Max. head: 25 m
  • Max. operating pressure: 10 bar

PRINCIPLE OF OPERATION

Grundfos inline single-stage pumps are centrifugal pumps where the impeller rotates to move fluid through a closed system. Initially, the pump casing is filled with the liquid. The motor-driven impeller then rotates, forcing the liquid to flow to the volute and into the discharge.

KNOW MORE ABOUT GRUNDFOS
INLINE SINGLE STAGE SERIES

Grundfos’ inline single-stage range highlights the TP/TPE series which are robust and reliable vertical centrifugal pumps with a mechanical shaft seal.Talk to Experts

Design Advantages

  • Close-coupled design reduces the system’s sensitivity to impurities
  • Unique shaft seal chamber design ensures optimum water circulation
  • Energy-efficient motors for more operational cost savings
  • Robust construction using stainless steel with superior corrosion-resistance
  • The TPD twin-head pumps are designed to maximize uptime
  • The TPE pumps are integrated with a frequency converter or inverter control

Available Options

We customise pumps according to your specific application. Get in touch with us today to get a complete list of your options.

  • Materials options
  • Shaft options
  • Accessories and spare parts
  • Baseplate/mounting

Key Specifications

MODELS MAX FLOW MAX HEAD LIQUID TEMP MAX PRESSURE
TP 1148 m³/h 56 m -40 .. 150 °C 25 bar
TPE SERIES 1000 376 m³/h 46 m -40 .. 140 °C 25 bar
TPE SERIES 2000 263 m³/h 74 m -25 .. 140 °C 16 bar
TPED SERIES 2000 81 m³/h 36 m -25 .. 140 °C 16 bar
TPD 228 m³/h 41 m -25 .. 140 °C 16 bar

Applications

  • Commercial air conditioning
  • Commercial heating
  • Commercial hot water recirculation
  • District cooling
  • District heating
  • Drinking water treatment
  • Irrigation
  • Cooling
  • Desalination
  • Industrial heating
  • Water distribution

OUR RANGE OF AVAILABLE INLINE SINGLE STAGE PUMPS

Talk to Experts
Abaque Peristaltic Hose Pump HD100 model

TP

Abaque Peristaltic Hose Pump HD100 model

TPE SERIES 1000

Abaque Peristaltic Hose Pump HD100 model

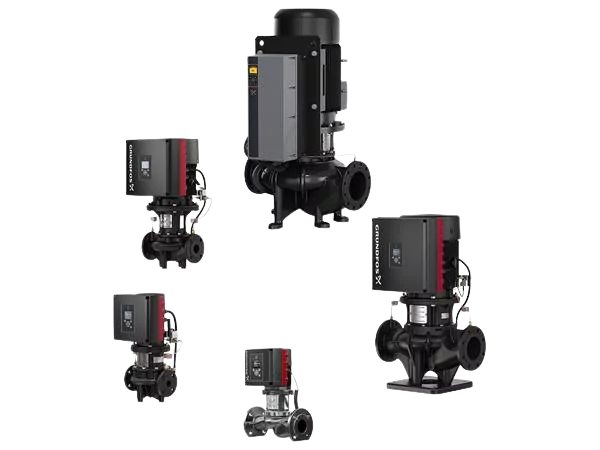

TPE SERIES 2000

Abaque Peristaltic Hose Pump HD100 model

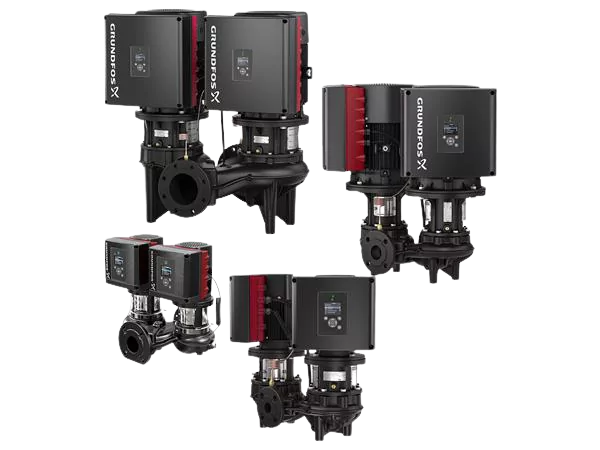

TPED SERIES 2000

Abaque Peristaltic Hose Pump HD100 model

TPD

PRINCIPLE OF OPERATION

In-line pumps are centrifugal type pumps, and flow of fluid does not change inside the inline pumps. Before the single-stage centrifugal pump is started, the pump casing is filled with the liquid to be transported for priming. The impeller is then driven by the shaft to rotate at a high speed, and the liquid between the blades must also rotate. Under the action of centrifugal force, the liquid is thrown from the center of the impeller to the outer edge of the vanes and obtains energy. Liquid leaves the impeller with high speed and enters the volute casing. Here, the liquid decelerates due to the gradual expansion of the flow path, and part of the kinetic energy is converted into static pressure energy. Liquid then flows into the discharge pipe at a relatively high pressure.
