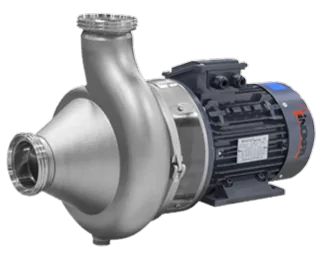

RV Helicoidal Impeller Pump

Inoxpa Pumps Logo
The Inoxpa RV is a range of close-coupled centrifugal pumps fitted with a helicoidal impeller. They boast high efficiencies going over 70 per cent, veryhigh considering their semi open impeller. The pumps incorporate a compact design, high capacity, low shear and gentle action, making them perfect for food & beverage applications. They are commonly used as a wine or beerwort pump, but are also suited for passing large soft solids.

KNOW MORE ABOUT INOXPA RV PUMP

Abaque Peristaltic Pump HD25 model

Design Advantages

  • Space-saving close-coupled design
  • Helicoidal impeller ensures gentle pumping without clogging
  • Pump casing with volute and drain port
  • High efficiency and low power consumption
  • Silicon carbide stationary and rotary parts
  • Passes solids up to 75 mm in diameter

Available Options

We customise pumps according to your specific application. Get in touch with us to know all your options.

  • Remote Start and Variable Speed Controller
  • Adjustable Legs or Trolley Configuration
  • Pump port fitting/connection options
  • Spare parts

Key Specifications

  • flow 180 m³/h
  • differential head: 22 m
  • working pressure: 10 bar

Applications

  • Food processing
  • Beverage
  • Breweries and distilleries
  • Craft food

BROCHURES & MANUALS

PRINCIPLE OF OPERATION

An RV pump follows the operation of a standard centrifugal pump where flow is created due to the kinetic energy imparted by the impeller vane and the pressure at the discharge. However, unlike a regular centrifugal pump, the helicoidal shape of an RV pump’s impeller and its optimised flow prevent clogging, allowing solid particles to pass through without difficulties preventing damage to both the pump and product.
