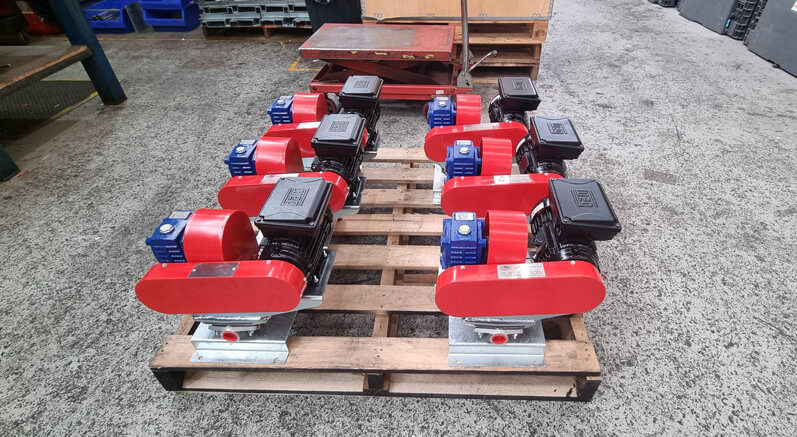

KDP are a range of mechanical diaphragm pumps, manufactured, sold and supported by All Pumps. They incorporate a heavy duty gearbox coupled to an eccentric block to actuate the diaphragm, making them appropriate for heavy-duty applications.

The pump is belt-driven by pulleys which enables it to use a variety of drive options, including electric motors and petrol and diesel engines for 2” and 3” pumps. With the ability to self-prime, handle solids and run dry, they have a wide range of applications.

All Pumps have been installed, servicing and supporting KDP pumps throughout Australia for many years

FEATURES

  • Suction lifts to 7.5m
  • Rapid self priming
  • Will run dry without damage
  • Heavy duty
  • TEFC electric motors fitted as standard
  • Special electric motor enclosures as options
  • Will operate on snore
  • Will handle abrasive liquids
  • Will pass solids up to 80% port size
  • Compact construction

APPLICATIONS

  • Dewatering excavation
  • Raw sewage
  • Pool maintenance and construction
  • Waste treatment plants
  • Oil skimming
  • Bore desludging
  • Oil/Water separators
  • Machine sumps
  • Priming large centrifugal pumps
  • Industrial wastes
  • Liquid manure
  • Septic tank cleaning
  • Drum emptying
  • Abattoirs and poultry processing
  • Spillage mop up

DOWNLOADS

KDP DIAPHRAGM PUMPS

Leading Specialist Pump Supplier to Industry Since 1972

SPEAK TO SOMEONE FROM THE ALL PUMPS TEAM

KDP MECHANICAL DIAPHRAGM PUMP PRODUCTS

banner-kdp-25-mechanical-diaphragm-pumps
banner-kdp-32-mechanical-diaphragm-pumps
banner-kdp-38-mechanical-diaphragm-pumps
banner-kdp-50-mechanical-diaphragm-pumps
banner-kdp-76-mechanical-diaphragm-pumps

KDP OVERVIEW

Materials of Construction
Component Standard Optional
Wetted (Casing and Ports) Aluminium Cast Iron / 316 Stainless Steel
Diaphragm Buna-N (NITRILE) Neoprene / Viton
Flap Valve / Gasket Buna-N (NITRILE) Polyutherene
Valve Seat 316 Stainless Steel
Carry Frame
All sizes can be fitted with a carry frame

KDP50 and KDP76 can be supplied with a petrol engine which enables increased portability in applications such as:

Petrol/Diesel
Site Dewatering
Excavation Dewatering
Pool Maintainence / Construction
Construction Sites

All pump sizes are available with the following electric motor options:

Electric
240V (Single Phase)
415V (Three Phase)
415V (Three Phase), Ex’e’
415V (Three Phase), Ex’d’

Leading Specialist Pump Supplier to Industry Since 1972

SPEAK TO SOMEONE FROM THE ALL PUMPS TEAM

KDP SERVICE KITS

Part No. Description
680090 KWIKFLO KDP-25 SERVICE KIT
680176 KWIKFLO KDP-32 SERVICE KIT
680250 KWIKFLO KDP-38 SERVICE KIT
680332 KWIKFLO KDP-50 SEVICE KIT
680412 KWIKFLO KDP-76 SEVICE KIT

KDP DRAWING

KDP Exploded View 1
KDP Exploded View 2
KDP Exploded View 3

*Dimensions may change at any time without notice, please contact your All Pumps representative for confirmation.

*Dimensions may change at any time without notice, please contact your All Pumps representative for confirmation.

Item No. Description
1 Aluminium Bowl
2 Diaphragm plate
3 Nitrile diaphragm
4 Aluminium suction port
5 Aluminium dishcharge port
6 Stainless steel valve seat
7 Nitrile valve seat gasket
8 Nitrile flap valve
9 Diaphragm plate bolt
10 Suction port stud
11 Connecting rod
12 Drive support housing
13 Worm gear speed reducer – Ratio 30:1
14 Eccentric block
15 Eccentric bearing housing
16 Bearing – 6305
17 Eccentric bolt & washer
Item No. Description
18 Circlip
19 Gearbox pulley
20 Motor pulley
21 V-Belt
22 Pulley guard backplate – SS 304
23 Pulley guard – Plastic
24 Electric motor
25 Nitrile O-Ring
26 Eccentric bolt spacer
27 Connecting rod nut
28 Eccentric guard – Plastic
29 Pulley guard backplate support bracket
30 Baseplate – Mild steel – Galvanised
31 Flanged hex nut
32 Hex head bolt
33 Grub screw
34 Washer
