MP Pumps Self-Priming Pumps

MP Pumps offers high-quality motor and hydraulic drive self-priming centrifugal pumps with over 20 different types to ensure that each industry gets the perfect pump for its applications. MP Pumps use highly engineered seals in their self-priming pumps to guarantee efficient and safe operation when handling toxic fluids.

They consume low energy despite varying atmospheric pressures and liquid densities, making them more competitive than others on the market.

Features & Benefits

Know more about the features & benefits of using MP Pumps Self-Priming Pumps.

Advanced sealing technology to prevent leaks and ensure efficient operation
Energy-efficient design
High flow rates, pressures, and heads
Excellent at handling difficult fluids like toxic liquids, slurries, corrosive liquids, suspended solids

Available Options

We customise pumps according to your specific application. Get in touch with us to know your options.

Material options
Seal options
Impeller design and material options
Motor options
Gas engine-driven option
Hydraulic version
Pedestal-mounted drive
Spare parts and accessories
Baseplates/mounting options

Key Specifications

Here are the key specifications of MP Pumps Self-Priming Pumps.

Flow: Up to 170 m3/h
Head: Up to 92 m

Applications

Here is a list of industrial applications for which MP Pumps Self-Priming Pumps are commonly utilized.

Agricultural
Commercial
Industrial
Marine
OEM
Transportation

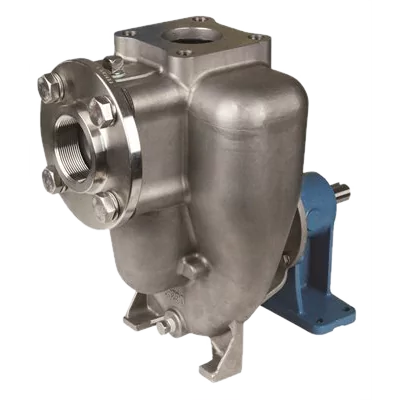

MP Pumps Self-Priming Pumps product slide

Principle of Operation

Self-priming centrifugal pumps should evacuate air out of the system to stay primed and ready to run. This eliminates the priming stage – the first stage in operating standard centrifugal pumps – making them more energy efficient. The centrifugal force coming from the rotating impeller creates an airtight seal that draws the air toward the discharge port. This continuous phenomenon causes the suction of liquid and the start of the pumping process.

PRODUCT RANGE AND TECHNICAL DATA

Talk to Experts

    SERIES
    FLOW
    HEAD
    SUCTION LIFT
    MAX SOLID SIZE



    FLOWMAX® 5 1-1/2" x 1-1/2"
    Up to 33 m3/h
    Up to 30 m
    Up to 7.6 m
    Up to 14 mm


    FLOWMAX® 5 1-1/2" x 1-1/2" HYDRAULIC DRIVE SELF PRIMING
    Up to 40 m3/h
    Up to 70 m
    Up to 7.6 m
    Up to 14 mm


    FLOMAX® 5 AND 8 DOUBLE SEAL
    Up to 39 m3/h
    Up to 31 m
    -
    -


    FLOMAX® 8 2”x2”
    Up to 34 m3/h
    Up to 30 m
    Up to 7.6 m
    Up to 14 mm


    FLOMAX® 8 2”x2” HYDRAULIC DRIVE SELF PRIMING
    Up to 45 m3/h
    Up to 84 m
    Up to 7.6 m
    Up to 14 mm


    FLOMAX® 8 2”x2” 316 SS
    Up to 34 m3/h
    Up to 30 m
    Up to 7.6 m
    -


    FLOMAX® 8 2”x2” 316 SS DOUBLE SEAL
    Up to 39 m3/h
    Up to 40 m TDH
    Up to 7.6 m
    -


    FLOMAX® 10
    Up to 51 m3/h
    Up to 44 m
    Up to 7.6 m
    Up to 15.8 mm


    FLOMAX® 10 2”x2” HYDRAULIC DRIVE SELF PRIMING
    Up to 45 m3/h
    Up to 60 m
    Up to 7.6 m
    Up to 15.8 mm


    FLOMAX® 15 3”x3”
    Up to 73 m3/h
    Up to 44 m
    -
    -


    FLOMAX® 15 3”x3” 316 SS
    Up to 68 m3/h
    Up to 42 m
    Up to 7.6 m
    -


    FLOMAX® 15 3”x3” HYDRAULIC DRIVE SELF PRIMING
    Up to 46 m3/h
    Up to 59 m
    Up to 7.6 m
    Up to 15.8 mm


    FLOMAX® 15 3”x3” SS DOUBLE SEAL
    AC - Up to 3.4 m3/h

DC – Up to 2.7 m3/h
    AC - Up to 4 m

DC – Up to 5 m
    -
    -


    FLOMAX® 30 3”x3”
    Up to 114 m3/h
    Up to 58 m
    Up to 7.6 m
    Up to 15.2 mm


    FLOMAX® 30 3”x3” SS
    Up to 114 m3/h
    Up to 61 m
    -
    -


    FLOMAX® 35 4”x3” SS
    Up to 114 m3/h
    Up to 55 m
    -
    -


    FLOMAX® 40 4”x4”
    Up to 170 m3/h
    Up to 69 m
    Up to 7.6 m
    Up to 16.5 mm


    FMX 100 1”x1”
    Up to 12.5 m3/h
    Up to 18 m
    Up to 5 m
    -


    FMX 75 3/4" x 3/4"
    Up to 4.8 m3/h
    Up to 7 m
    -
    -


    FMX 75 3/4" x 3/4" HYDRAULIC DRIVE SELF PRIMING
    Up to 10.5 m3/h
    Up to 38 m
    Up to 3.7 m
    -


SERIES	FLOW	HEAD	SUCTION LIFT	MAX SOLID SIZE
FLOWMAX® 5 1-1/2" x 1-1/2"	Up to 33 m3/h	Up to 30 m	Up to 7.6 m	Up to 14 mm
FLOWMAX® 5 1-1/2" x 1-1/2" HYDRAULIC DRIVE SELF PRIMING	Up to 40 m3/h	Up to 70 m	Up to 7.6 m	Up to 14 mm
FLOMAX® 5 AND 8 DOUBLE SEAL	Up to 39 m3/h	Up to 31 m	-	-
FLOMAX® 8 2”x2”	Up to 34 m3/h	Up to 30 m	Up to 7.6 m	Up to 14 mm
FLOMAX® 8 2”x2” HYDRAULIC DRIVE SELF PRIMING	Up to 45 m3/h	Up to 84 m	Up to 7.6 m	Up to 14 mm
FLOMAX® 8 2”x2” 316 SS	Up to 34 m3/h	Up to 30 m	Up to 7.6 m	-
FLOMAX® 8 2”x2” 316 SS DOUBLE SEAL	Up to 39 m3/h	Up to 40 m TDH	Up to 7.6 m	-
FLOMAX® 10	Up to 51 m3/h	Up to 44 m	Up to 7.6 m	Up to 15.8 mm
FLOMAX® 10 2”x2” HYDRAULIC DRIVE SELF PRIMING	Up to 45 m3/h	Up to 60 m	Up to 7.6 m	Up to 15.8 mm
FLOMAX® 15 3”x3”	Up to 73 m3/h	Up to 44 m	-	-
FLOMAX® 15 3”x3” 316 SS	Up to 68 m3/h	Up to 42 m	Up to 7.6 m	-
FLOMAX® 15 3”x3” HYDRAULIC DRIVE SELF PRIMING	Up to 46 m3/h	Up to 59 m	Up to 7.6 m	Up to 15.8 mm
FLOMAX® 15 3”x3” SS DOUBLE SEAL	AC - Up to 3.4 m3/h DC – Up to 2.7 m3/h	AC - Up to 4 m DC – Up to 5 m	-	-
FLOMAX® 30 3”x3”	Up to 114 m3/h	Up to 58 m	Up to 7.6 m	Up to 15.2 mm
FLOMAX® 30 3”x3” SS	Up to 114 m3/h	Up to 61 m	-	-
FLOMAX® 35 4”x3” SS	Up to 114 m3/h	Up to 55 m	-	-
FLOMAX® 40 4”x4”	Up to 170 m3/h	Up to 69 m	Up to 7.6 m	Up to 16.5 mm
FMX 100 1”x1”	Up to 12.5 m3/h	Up to 18 m	Up to 5 m	-
FMX 75 3/4" x 3/4"	Up to 4.8 m3/h	Up to 7 m	-	-
FMX 75 3/4" x 3/4" HYDRAULIC DRIVE SELF PRIMING	Up to 10.5 m3/h	Up to 38 m	Up to 3.7 m	-

Self-Priming Trash Pumps

    SERIES
    FLOW
    HEAD
    SUCTION LIFT
    MAX SOLID SIZE

    2 CT 2”x2”
    Up to 51 m3/h
    Up to 38 m
    -
    Up to 38 mm

    2 CT-3 3”x3”
    Up to 91 m3/h
    Up to 38 m

    Up to 38 mm

    2 CT 3”x3” HYDRAULIC DRIVE SELF PRIMING
    Up to 80 m3/h
    Up to 28 m

    Up to 38 mm

SERIES	FLOW	HEAD	SUCTION LIFT	MAX SOLID SIZE
2 CT 2”x2”	Up to 51 m3/h	Up to 38 m	-	Up to 38 mm
2 CT-3 3”x3”	Up to 91 m3/h	Up to 38 m		Up to 38 mm
2 CT 3”x3” HYDRAULIC DRIVE SELF PRIMING	Up to 80 m3/h	Up to 28 m		Up to 38 mm

Self-Priming High Pressure Water Pumps


    SERIES
    FLOW
    HEAD
    SUCTION LIFT
    MAX SOLID SIZE

    1-1/2" or 2" x 1-1/2" or 2" HHLF
    Up to 32 m3/h
    Up to 58 m
    -
    -

    2"x2" HHLF HIGH OUTPUT
    Up to 34 m3/h
    Up to 76 m TDH
    -
    -

    1-1/2" or 2" x 1-1/2" or 2" HHLF HYDRAULIC DRIVE SELF PRIMING
    Up to 41 m3/h
    Up to 92 m
    -
    -

SERIES	FLOW	HEAD	SUCTION LIFT	MAX SOLID SIZE
1-1/2" or 2" x 1-1/2" or 2" HHLF	Up to 32 m3/h	Up to 58 m	-	-
2"x2" HHLF HIGH OUTPUT	Up to 34 m3/h	Up to 76 m TDH	-	-
1-1/2" or 2" x 1-1/2" or 2" HHLF HYDRAULIC DRIVE SELF PRIMING	Up to 41 m3/h	Up to 92 m	-	-

Submersible Pumps

    SERIES
    FLOW
    HEAD
    SUCTION LIFT
    MAX SOLID SIZE



    HYDRASUB20 2”
    Up to 68 m3/h
    Up to 23 m
    -
    Up to 12.7 mm


    HYDRASUB25 2-1/2”
    Up to 98 m3/h
    Up to 30 m

    Up to 12.7 mm


    HYDRASUB30 3”
    Up to 91 m3/h
    Up to 33 m
    -
    Up to 12.7 mm





SERIES	FLOW	HEAD	SUCTION LIFT	MAX SOLID SIZE
HYDRASUB20 2”	Up to 68 m3/h	Up to 23 m	-	Up to 12.7 mm
HYDRASUB25 2-1/2”	Up to 98 m3/h	Up to 30 m		Up to 12.7 mm
HYDRASUB30 3”	Up to 91 m3/h	Up to 33 m	-	Up to 12.7 mm
