ProMinent Peristaltic Metering Pumps

Prominent Dosing Pump Logo
Peristaltic metering pumps are used in a capacity range of between 10 ml/h and 410 l/h. They pump against a pressure of up to 8 bar. The incredible durability and wide range of chemical compatibility of the high-performance hoses used by ProMinent are particularly impressive.

Our DULCOFLEX peristaltic metering pumps ideally combine the benefits of peristaltic pumps and metering pumps. They therefore support batch or proportional flow dosing, for example. Depending on the medium, they meter with a precision of up to ±1 %. They can be networked with our fluid management platform using DULCONNEX, making remote monitoring possible. They are just as reliable as our other metering pumps, are self-priming and can handle outgassing media with ease. Thanks to the ingenious hose replacement processes, this task is completed in no time and requires very little material.

KNOW MORE ABOUT PROMINENT PERISTALTIC METERING PUMPS

  • Prominent PERISTALTIC METERING PUMPS
  • peristaltic metering pump dulcoflex dfya
  • peristaltic pump dulcoflex dfxa

Key Features & Benefits

  • Adjustment of the metering rate directly in l/h
  • Simple, menu-guided hose change
  • No problems with very gaseous media or air locks
  • IoT capable and can be connected to the DULCONNEX IIoT solution developed by ProMinent
  • Product/working fluid protection: Sole contact with media in the hose
  • Illuminated 3” LCD and 3-LED display for operating, warning and error messages, visible from all sides

Available Options

  • Hose materials options
  • Spare parts kit
  • Connectivity options for DFYa pumps
  • Mounting options

We customise pumps according to your specific application. Get in touch with us today to get a complete list of your options.

Key Specifications

  • Feed rates up to 410 li/hr
  • Back pressures up to 8 bar

Applications

  • Wastewater treatment: Metering high-viscosity media/polymer solutions
  • Potable water treatment: Metering of disinfectants
  • Foodstuffs industry: shear-sensitive media, aromas, additives
  • Paper industry: Metering of additives
  • Cooling circuits: Metering of corrosion inhibitors and biocides
  • Plastics production: Metering of additives
  • General: Chemical metering up to 410 l/h
  • Mining

OUR RANGE OF AVAILABLE PROMINENT PERISTALTIC METERING PUMPS

DULCOFLEX DFXa Peristaltic Pumps

DULCOFLEX DFXa meters outgassing, viscous, abrasive or shear-sensitive media and is setting new standards in metering. Linear and reproducible metering (± 1 %) is guaranteed with this peristaltic pump under all process conditions. Hose replacement is a very simple process. Valve-free metering with the accuracy of a diaphragm metering pump, tapping into all the properties of a peristaltic pump. A brushless direct current motor forms the heart of the DULCOFLEX DFXa. Its ingenious control provides for precise metering and reduced pump capacity with continuous metering up to 10 ml/h.

Benefits
Technical Data
  • Reliable metering and simple to operate
  • Suitable for viscosities of up to 200,000 mPas (with VPT0530/VPT0565)
  • Many different control options, such as using an analogue 0/4-20 mA signal, contact controller, timer or via process control systems
  • Reverse flow possible
  • CIP-enabled system
  • The high-performance hoses used guarantee exceptional chemical resistance and a long service life.
  • Feed Rate up to 65 li/h
  • Max Back Pressure up to 7 bar
  • Suction Lift up to 9 m WC
  • Connection Size: 12x9
  • Adjustable feed rate of between 65 li/h and 10 ml/h
  • Metering reproducibility: ±1% with retracted hose (after approx. 200 revolutions)
peristaltic pump dulcoflex dfxa

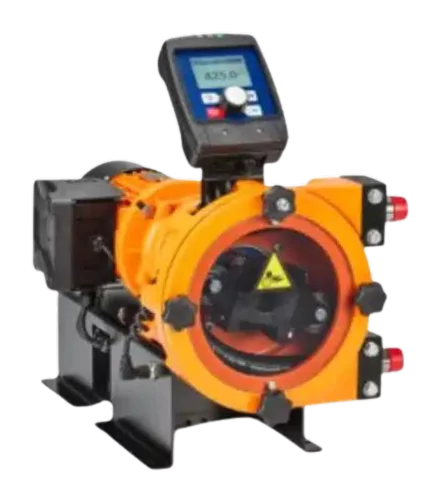

DULCOFLEX DFYa Peristaltic Metering Pumps

The valveless peristaltic pump DULCOFLEX DFYa guarantees precise, linear and reproducible metering in all process conditions. It meters gaseous, viscose, shear-sensitive media, possibly containing particles, with ease – ProMinent is therefore setting new standards in metering with peristaltic pumps.

The new metering pump DFYa, the big brother of the DFXa, adds an intelligent peristaltic pumpThis is how they work: The feed chemical is pumped by the rotor clamping the hose ...more in the glossary to the top capacity range of the ProMinent portfolio.

The new generation of peristaltic metering pumps can now be controlled electronically. It meters without the need for a valve and with a level of precision not previously possible. And yet it retains all the benefits of a peristaltic pump, which is why highly outgassing, high-viscosity, abrasive or shear-sensitive fluids, sometimes containing particles, can also be perfectly metered with the DFYa.

Benefits
Technical Data
  • Operation by contact, batch, manual, analogue or BUS control
  • Connection to process control systems via a BUS interface, such PROFIBUS or CANopen
  • Reversible direction of rotation
  • Simple to operate from the intuitive user interface with 4 keys and the click wheel
  • Feed Rate up to 410 l/h ±10 %
  • Max Back Pressure up to 8 bar
  • Suction Lift up to 8 m WC
  • Connection Size: ¾”
  • Adjustable feed rate between 5.1 l/ and 410 l/h
  • Batch operation with max. 999.9 l/pulse
  • Self-priming up to 8 m
  • Metering reproducibility: ± 2 % ±25ml with retracted hose after 500 revolutions
peristaltic metering pump dulcoflex dfya
These speciality pumps solve a range of applications so reach out to our team to confirm the best suited role for your situation.

PRINCIPLE OF OPERATION

The hose in contact with the housing is disconnected by rollers sitting on a rotor. The rotary movement of the rotor moves the disconnected point in the desired pumping direction and the medium is pumped. Once the roller has pressed the medium through the hose in the dosing head, the hose is relieved again. The hose lines up again, produces negative pressure and fresh medium is drawn into the hose.

The feed rate can be increased in a linear fashion by increasing the rotor speed.

OUR RANGE OF AVAILABLE PROMINENT METERING PUMPS

Prominent DIAPHRAGM METERING PUMPSDIAPHRAGM
METERING PUMPS
Capacity: Up to 2100 l/h
Pressure: Up to 2.5 MPa
ProMinent HYDRAULIC DIAPHRAGM METERING PUMPSHYDRAULIC DIAPHRAGM
METERING PUMPS
Capacity: Up to 7400 l/h
Pressure: Up to 300 MPa
Prominent PLUNGER METERING PUMPSPLUNGER
METERING PUMPS
Capacity: Up to 6014 l/h
Pressure: Up to 60 MPa
Prominent PERISTALTIC METERING PUMPSPERISTALTIC
METERING PUMPS
Capacity: Up to 410 l/h
Pressure: Up to 0.8 MPa
