SOMA Pumps GmbH

From the inventor of sinusoidal pump technology, SOMA Pumps Gmbh boasts an improved range of sine pumps that meet the food and beverage industry's need for simple, gentle and reliable product handling. SOMA sine pumps feature an undulating action that gently moves the working fluid. Unlike other pumps, sine pumps don’t have an arduous fluid path and pulsation, enabling them to deliver constant volumetric displacement and minimise damage to shear-sensitive products. SOMA caters to other sanitary industries like dairy, confectionery, cosmetics, pharma, and the fine chemical sector.

Talk to our Experts

The SOMA Sine Pump Advantage

German-made, top-notch quality pumps

Application-specific solutions

Powerful suction capabilities with low shear and pulsation

Shear-sensitive conveyance of viscous media

High discharge pressures

Unique design ideal where product integrity is paramount

Few parts allow for easy cleaning and maintenance

Energy-efficient, consuming up to 50% less energy than comparable pumps

Applications

Food & Beverage

Dairy

Confectionery

Cosmetics

Pharma

Fine chemicals

Watch Video

The SOMA Sine Pump Product Range

SOMA SINUS SODIAL® Pump – SCN Series

SOMA SINUS SODIAL® SCN pumps are positive displacement pumps working on a unique operating principle of a sine wave. Their design incorporates a sine curve-shaped rotor mounted on a shaft drive. A scraper divides the suction and discharge side of the pump to prevent backflow and equalise pressure. As the sinus rotor operates, it creates four chambers where the product is transferred gently without shear or damage. Wear is minimised in SCN pumps with the rotor not running against the housing or cover.

Technical Specifications

Advantages

    SCN MODEL
    MAXIMUM VOLUME
    REV/MIN
    SOLID SIZE
    SUCTION PRESSURE
    WORKING PRESSURE



    SCN 10
    4800 L/h
    1000 rpm
    10 mm
    -0,85 bar
    10 bar max.


    SCN 20
    6900 L/h
    1000 rpm
    20 mm
    -0,85 bar
    15 bar max.


    SCN 25
    18000 L/h
    600 rpm
    30 mm
    -0,85 bar
    15 bar max.

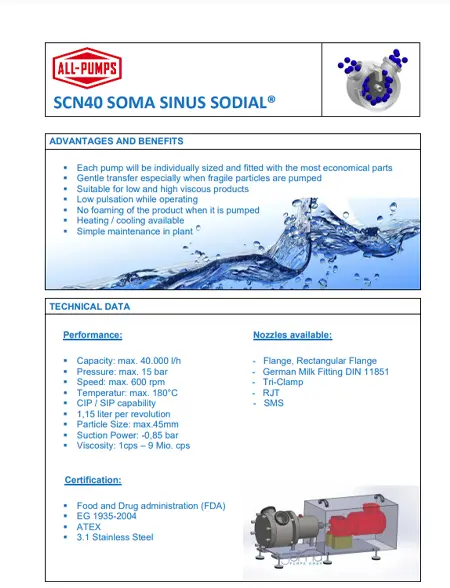

    SCN 40
    40000 L/h
    600 rpm
    45 mm
    -0,85 bar
    15 bar max.


    SCN 60
    90000 L/h
    600 rpm
    60 mm
    -0,85 bar
    15 bar max.


SCN MODEL	MAXIMUM VOLUME	REV/MIN	SOLID SIZE	SUCTION PRESSURE	WORKING PRESSURE
SCN 10	4800 L/h	1000 rpm	10 mm	-0,85 bar	10 bar max.
SCN 20	6900 L/h	1000 rpm	20 mm	-0,85 bar	15 bar max.
SCN 25	18000 L/h	600 rpm	30 mm	-0,85 bar	15 bar max.
SCN 40	40000 L/h	600 rpm	45 mm	-0,85 bar	15 bar max.
SCN 60	90000 L/h	600 rpm	60 mm	-0,85 bar	15 bar max.

Gentle product handling

Uniform and almost pulsation-free pumping action

Ideal for low and high-viscosity products

No foaming

FDA, EC 1935-2004, ATEX compliant

Durable 3.1 stainless steel

CIP/SIP or manual cleaning

Easy on-site maintenance

Withstands operating temperatures of up to 180°C

Heating or cooling available

Various seal systems: triple lip seal or mechanical seal

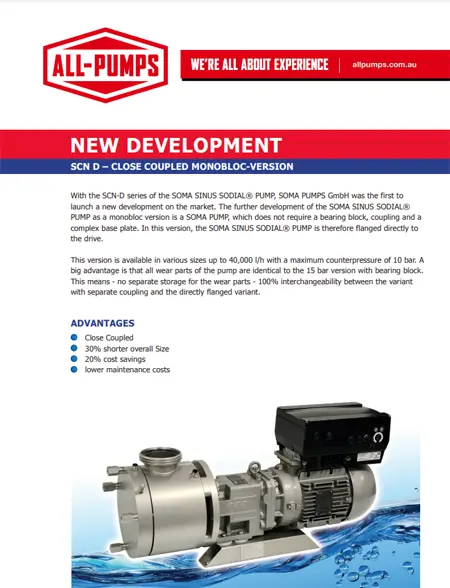

SOMA SINUS SODIAL® Pump – SCN-D Series

The SOMA SINUS SODIAL® SCN-D Series is the monoblock version of the SCN pumps, offering the same advantages. The SCN-D pumps are directly coupled with the drive, thus eliminating the need for a bearing block, coupling and complex baseplate. Available in various sizes, the SCN-D Series offers a maximum flow of 40000 litres per hour and a pressure of 10 bar. SOMA SCN-D pumps are 100% interchangeable with SCN pumps.

Technical Specifications

Advantages

    SCN-D MODEL
    MAXIMUM VOLUME
    REV/MIN
    SOLID SIZE
    SUCTION PRESSURE
    WORKING PRESSURE



    SCN 20-D
    4000 L/h
    600 rpm
    20 mm
    -0,85 bar
    10 bar max.


    SCN 25-D
    18000 L/h
    600 rpm
    30 mm
    -0,85 bar
    10 bar max.


    SCN 40-D
    40000 L/h
    600 rpm
    45 mm
    -0,85 bar
    10 bar max.


SCN-D MODEL	MAXIMUM VOLUME	REV/MIN	SOLID SIZE	SUCTION PRESSURE	WORKING PRESSURE
SCN 20-D	4000 L/h	600 rpm	20 mm	-0,85 bar	10 bar max.
SCN 25-D	18000 L/h	600 rpm	30 mm	-0,85 bar	10 bar max.
SCN 40-D	40000 L/h	600 rpm	45 mm	-0,85 bar	10 bar max.

Gentle product handling

Uniform and almost pulsation-free pumping action

Ideal for low and high-viscosity products

No foaming

FDA, EC 1935-2004, ATEX compliant

Durable 3.1 stainless steel

CIP/SIP or manual cleaning

Easy on-site maintenance

Withstands operating temperatures of up to 180°C

Heating or cooling available

Various seal systems: triple lip seal or mechanical seal

The SOMA Sine Pump Sample fluids handled

Food Industry

Beverage Industry

Cosmetic Industry

Meat Industry

Confectionery Industry

Dairy Industry

Chemical Industry

Food Industry

Mayonnaise

Ketchup

Sauces

Deli salads

Vegetables

Fruits

Convenience food

Chutney

Pasta

Beverage Industry

Juice concentrates

Syrups

Caramel

Chocolate

Pralines

Cocoa butter

Candy

Curd

Cream

Milk

Yogurt

Wine

Beer

Brewer's Yease

Smoothies

Tea

Coffee

Cosmetic Industry

Hair shampoo

Hair conditioner

Hair color

Shower gels

Skin cream

Makeup

Sunscreen

Toothpaste

Meat Industry

Minced meat

Meat paste

Boiled sausage

Emulsions

Meat pies

Confectionery Industry

Gummy mass

Dairy Industry

Ice cream

Whey drinks

Butter

Mouthwash

Chemical Industry

Laundry detergents

Cleaning agents

Solvents

Adhesives

Sealants

Soaps

Polymers

Silicones

SOMA Pumps GmbH How It works

A sine curve-shaped rotor mounted as a disk (rotor) on a drive shaft gently and evenly transports the product through four equally divided chambers. A sealing slide separates the suction and pressure sides of the sinus pump. The SINUS rotor works in two separate stators made of special plastic so that the pump housing and cover are not subject to too much wear. This structural advantage enables a lifelong guarantee of the pump housing and cover.

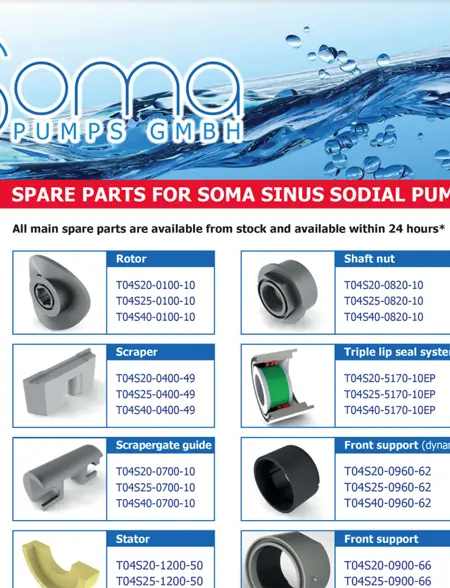

Available for SOMA Sinus Sodial®Spare Parts & Accessories

Original SOMA Sinus Sodial® Spare Parts

Original SOMA Sinus Sodial® Accessories

Servicing you anywhere in Australia

All-Pumps offers a bespoke solution to your pump problems. Call our professionals if you need a new pump, replacement part, repair services, system design, or monthly maintenance!

Our customer support services are the best in the field with 100% customer satisfaction ratings.

Free quote for installation.

Free quote for servicing.

Free quote for custom system design.

Free quote for pump or spare pricing.
