Sulzer Slurry Pump Range

Sulzer Pumps Australia Logo
Sulzer offers high-quality slurry pumps for the mining, metals, and fertiliser manufacturing industries and applications dealing with abrasive fluids. The pumps’ large cross sections provide extended wearability, which can be achieved by simply adjusting internal clearances. This also helps maintain efficiency and increases component wear life, leading to minimal downtime. The hydraulic components of Sulzer slurry pumps are mounted on a robust bearing frame and driven through a rigid overhung shaft to ensure reliability, while isolator seals protect the heavy-duty bearings.

KNOW MORE ABOUT SULZER SLURRY PUMPS

Ask the Experts

Features & Benefits

  • Optimised hydraulic design delivers superior performance
  • High-efficiency impellers and volute casing
  • Wide range of high-quality materials for extended wearability
  • Low spare part costs due to interchangeability between models
  • Heavy-duty bearings ensure operational reliability

Available Options

All-Pumps can customise pumps according to your requirements and applications. Get in touch with us today to find the right pump!

  • Wet material options: high-grade metal alloy or elastomeric materials
  • Gland sealing options: dynamic and single or double mechanical seals
  • Spare parts

Applications

  • Mining and mineral processing
  • Aggregates (sand and gravel)
  • Power (bottom ash, lime slurry for flue gas desulphurization (FGD))
  • Food industry
  • Wastewater
  • Chemical slurries
  • Abrasive and corrosive slurries
  • Ammonium nitrate
  • Froth pumping and self-regulating application

SULZER INDUSTRIAL SLURRY PUMP RANGE

BROCHURES & MANUALS

HEAVY DUTY SLURRY PUMPS:
ENSIVAL MORET EMW

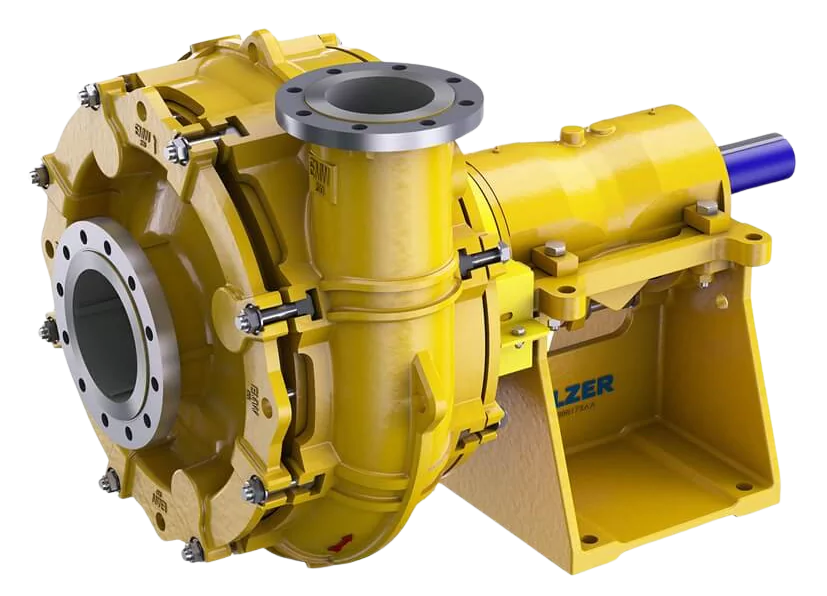

The extra heavy-duty Sulzer EMW slurry pumps offer high abrasion and corrosion resistance. They have high hydraulic efficiencies that help enhance wear-life performance in difficult solids handling applications.

  • Minimised total cost of ownership
  • Easy to install and maintain
  • Low energy consumption
  • Low spare cost due to high standardization between EMW-M and EMW-R
  • Extra high durability
Models EMW-M EMS-R
Capacity (m3/h) 4000 1450
Head (m) 95 55
Pressure (bar) 16 14
Temperatures up to 110 °C / 230 °F up to 110 °C / 230 °F
Maximum Speed of Rotation up to 3000 rpm up to 3000 rpm 2600 rpm
  • Mining and mineral processing
  • Aggregates (sand and gravel)
  • Power (bottom ash, lime slurry for flue gas desulphurization(FGD))
  • Food industry
  • Wastewater
  • Chemical slurries
EMV-M | EMV-R
Ask the Experts

PUMP PERFORMANCE CURVE

EMW: EMV-M

EMW: EMV-R

MAIN PUMP DESIGN FEATURES

  • Wide range of high quality materials (metallic as well as rubber)
  • Optimized high efficiency hydraulics ensure high efficiency and minimized wear in the largest operating range
  • Heavy-duty bearings offer LB10 bearing life of more than 50,000 hours
  • Vertical design with EMW-R and EMW-M hydraulics available
  • Fast and effective maintenance due to easy assembly and dismantling of main pump parts
Ask the Experts

KEY CHARACTERISTICS

Specifications
Capacities EMW-R: up to 1,450 m3/h / 6,385 USgpm
EMW-M: up to 4,000 m3/h / 17,600 USgpm
Heads EMW-R: up to 55 m / 180 ft
EMW-M: up to 95 m / 312 ft
Pressures EMW-R: up to 14 bar / 203 psi
EMW-M: up to 16 bar / 232 psi
Temperatures EMW-R: up to 110 °C / 230 °F
EMW-M: up to 110 °C / 230 °F
Maximum speed of rotation EMW-R: up to 2600 rpm
EMW-M: up to 3000 rpm

SULZER SLURRY PUMP: PLR

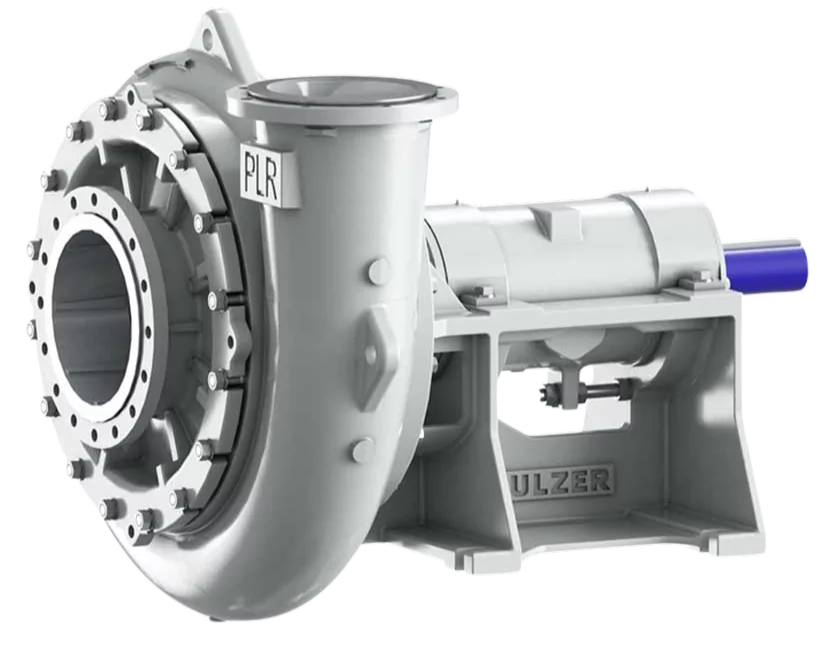

Sulzer PLR slurry pumps boast maximum reliability in handling liquids with high solid contents. They are manufactured using special materials with high hardness level to provide the best anti-abrasion characteristics.
  • Exceptional abrasion and corrosion resistance
  • Extended pump and parts lifetime
  • Maximum adaptability for specific duties

Capacity up to 3900 m3/h
Head up to 80 m
Pressure up to 50 bar

  • abrasive and corrosive slurries
  • ammonium nitrate
  • froth pumping and self-regulating application

PUMP PERFORMANCE CURVE

EMW: EMV-M

EMW: EMV-R

PUMP PERFORMANCE CURVE

PLR | CR

KEY CHARACTERISTICS

Specifications
Capacities up to 3,900 m3/h / 17,200 USgpm
Heads up to 80 m / 262 ft.
Pressures up to 50 bar / 735 psi
Temperatures up to 150°C / 300°F
Maximum speed of rotation up to 2,500 rpm / 2,500 rpm

MAIN PUMP DESIGN FEATURES

  • Wide range of high-quality materials to ensure exceptional resistance against wear
  • Special heavy-duty bearing unit for high reliability
  • Wide range of sealing arrangements to all applications
  • Optimized tangential design to minimize erosion
  • Modular design minimizes spare parts inventory cost
Ask the Experts

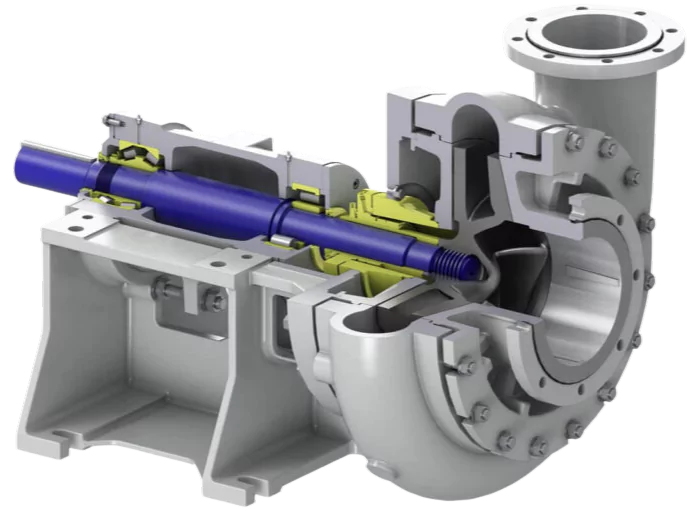

PRINCIPLE OF OPERATION

Industrial Slurry Pump

The horizontal slurry pump is centrifugal in type. Driven by a motor to start operation, the slurry enters the pump chamber through the feed port and is centrifuged inside the casing. The heavy-duty impeller pushes the slurry out to the discharge line.
