Trillium WEMCO® Torque-Flow®

The Wemco® Torque-Flow® is the toughest grit-handling vortex pump in the market. It features a fully recessed, cup-type impeller that efficiently handles pipe-size solids without clogging. The pump impeller is made extra thick for increased durability and economy. The two-piece pump casing comes with a sacrificial suction piece, allowing quick and easy replacement of wearing parts. The wet-end parts of Torque-Flow® are all constructed using Hi-Crome material, allowing greater hardness and endurance.

All-Pumps is an industrial distributor of WEMCO® Torque-Flow® vortex pumps in Australia. Get in touch with our team for complete options.

Features & Benefits

Know more about the features & benefits of using Trillium WEMCO® Torque-Flow®.

Original non-clog, fully recessed, cup-type impeller pump
Replaceable hard iron wear plate
Two-piece casing with an easily replaceable suction piece
Wet-end parts available in 650+ Brinell hardness
Stainless steel wet-end parts are available on some models

Key Specifications

Here are the key specifications of Trillium WEMCO® Torque-Flow®.

HEAD: 0 – 70.1 m
FLOW: 0 to 1,022 m³/h
SIZE RANGE & DIMENSIONS: 25.4 – 203 mm

Applications

Here is a list of industrial applications for which Trillium WEMCO® Torque-Flow® are commonly utilized.

Wastewater treatment
Grit & sludge
Chemicals
Abrasives
Fluids with large solids

Trillium WEMCO® Torque-Flow® slider image

OUR RANGE OF AVAILABLE TRILLIUM WEMCO® TORQUE-FLOW®

These speciality pumps solve a range of applications so reach out to our team to confirm the best suited role for your situation.

Talk to Experts

WEMCO® TORQUE-FLOW® MODEL C

Torque-Flow® Model C offers unmatched durability and performance in grit-handling applications. It is the standard of toughness in which all other sludge pumps are measured. It moves pipe-size solids without clogging, minimising downtime and maintenance costs.

Benefits

Abrasion-resistant alloy extends pump wear life
Generous wear allowances
Hydraulic design of the cupped impeller minimises wear
Extra-thick wet-end parts
Oversize shafts and 100,000-hour bearings

Performance Data

Maximum flow to 636 m³/hr
Maximum head to 47 m
Discharge sizes: 5, 7.6, 10, 15, 20.32 cm

WEMCO® TORQUE-FLOW® MODEL CE

Best for industrial or mining abrasive transfer

The Torque-Flow® Model CE pump outstands its competitors with its solid construction and highest hydraulic efficiency. It has a unique impeller that’s designed to work as a whole new impeller with like-new hydraulic performance when it wears out – ensuring your system maintains efficiency.

Benefits

Unique Rimmed Impeller

Highest hydraulic efficiency of any vortex design
Hydraulic performance improve with wear as rim lengthens with wear
The impeller converts into a full-diameter radial impeller with wear, offering like-new hydraulic performance
Relatively steep H/Q curve compared to straight radial vanes

2-Step Wear Mechanism

Hydraulic design evens out wear on component parts to maximise service life
Wear is directed by the impeller rim against the thick-sectioned suction area that is strengthened by 20-50% over competitive designs
Abrasion moves from the suction area of the casing to the area adjacent to the impeller tips – strengthened to 1” to handle abrasion – when the rim wears off
Only the impeller needs to be replaced when it wears off totally, as the casing is designed to absorb the wear of multiple impellers without being replaced.

Low Life Cycle Cost

The casing life is maximised by sacrificing the least expensive component - the impeller

Performance

Maximum flow to 636 m³/hr
Maximum head to 47 m
Discharge sizes: 5, 7.6, 10, 15, 20.32 cm

WEMCO® TORQUE-FLOW® MODEL EL

Best for sewage treatment and tight spaces with large solids clearance

Torque-Flow® Model EL is a light-duty pump for lower capacities and heads. It has a single-piece casing, is foot-mounted and is either belt-driven or directly connected. Bearings are grease-lubricated, and the impeller is threaded to the shaft. Face and drilled flanges are provided.

Benefits

Small, radial vaned recessed impeller pump
Can pass extremely large solids
Cast iron or stainless steel wet-end construction
Trimmable impeller
Motor-mounted option allows for smaller footprint

Performance Data

Maximum flow to 125 m³/hr
Maximum head to 43m
Discharge sizes: 2.5, 5, 7.6 cm

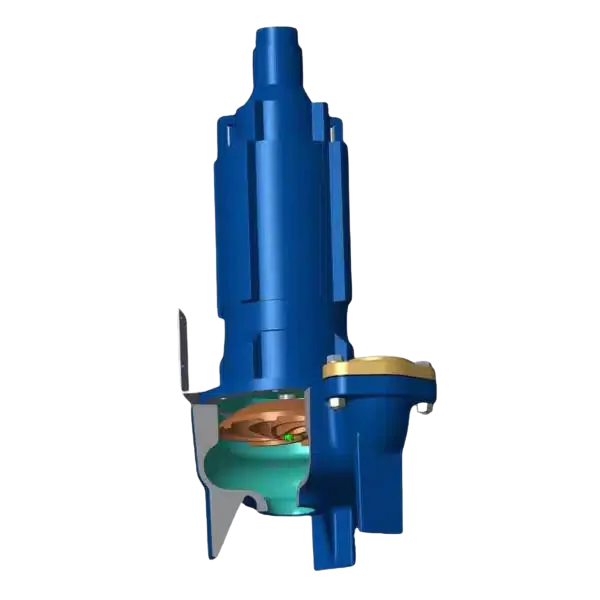

WEMCO® TORQUE-FLOW® MODEL S

Best for submersible applications

Torque-Flow® Model S features heavy-duty submersible pumps that offer low life-cycle costs and easy maintenance. This bottom suction, vertical discharge pump has a unique recessed impeller that easily pumps solids and stringy, fibrous materials without clogging.

Benefits

Tough enough to handle grit
Abrasion-resistant alloys extend wear life
Rimmed, recessed impeller
Hydraulic design evens out wear on component parts with its 2-piece wear mechanism to maximise service life
The casing life is maximised by sacrificing the least expensive component - the impeller
Cast Iron Construction
Up to 40 HP

Performance Data

Flow: Up to 182 m³/hr
Head: Up to 28 m
Discharge sizes: 7.6, 10 cm
