Tsurumi’s HS-HSZ Range 

Tsurumi’s HS-HSZ Range 

The HS series comprises tough single-phase submersible pumps that are ideal for handling slurries, residues, and other liquids containing solids. The solid cast aluminum body and urethane vortex impeller also offer excellent wear resistance in site applications where the water contains sand and silt in suspension, thus maintaining performance and reliability. The HSZ pumps are automatic models using single float switch. The HS-HSZ pumps can start operation with only 5 mm of water level. Along with the side discharge, spiral design, these pumps come with an agitator to ensure smoother suction of settled particles.

industrial

Know more about Tsurumi
HS-HSZ Range Series

Design Advantages
  • Cable Clip prevents unexpected water incursion
  • Agitator prevents air lock
  • Can operate at super low water levels
  • Equipped with Tsurumi original technologies
  • Single float switch for reduced power consumption
  • Rubber/resin-made stand to protect floor from scratches
Available Options

All-Pumps can customise pumps according to your requirements and specific applications. Get in touch with us today to find the right pump!



  • Wide range of sizes
  • Guide rail options
  • Spare parts
Key Specifications
  • Flows up to 0.58 m3/min
  • Heads up to 18 meters
  • Solids passage up to 7 mm
  • Bore up to 80 mm

Model

Max Flow (m3/min)

Head (m)

Solid Passage (mm)

HS2.4S

0.2 

12 

7 

HS2.75S

0.23 

18 

7 

HS3.75S

0.3 

18 

7 

HS3.75SL

0.58 

10.8 

7 

HSZ2.4S

0.2 

12 

7 

HSZ2.75S

0.23 

18 

7 

HSZ3.75S

0.3 

18 

7 

HSZ3.75SL

0.58 

10.8 

7 

Applications
  • Construction sites 
  • Dewatering 
  • Fixed installations 
  • Water features 
HSZ
INDUSTRIAL

Our range of available
HS-HSZ Range pumps

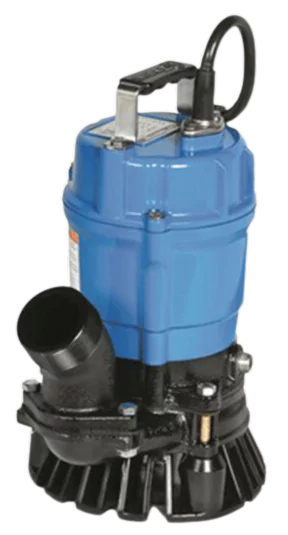

HS2.4S 

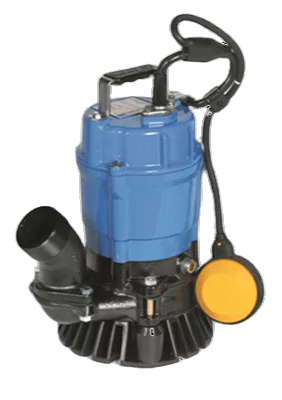

HS2.75S 

HS3.75S 

HS3.75SL 

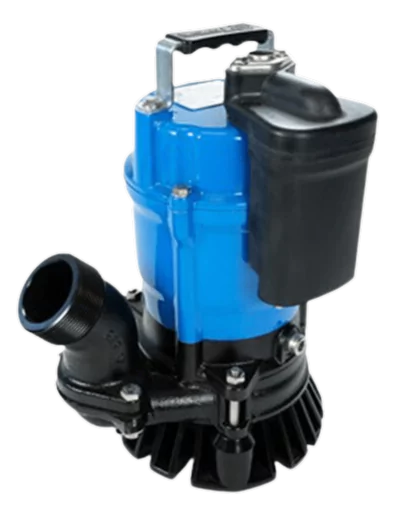

HSZ2.4S 

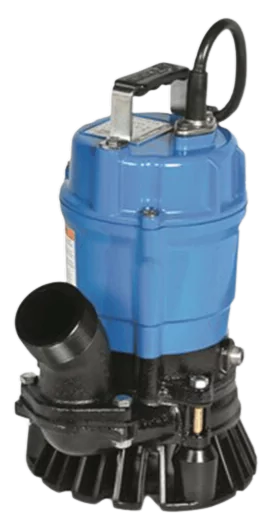

HSZ2.75S 

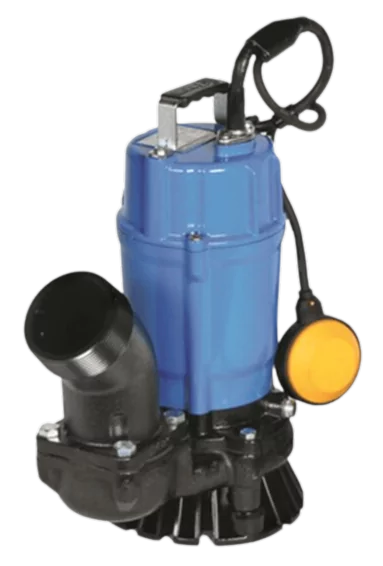

HSZ3.75S 

HSZ3.75SL 

PUMP

Principle of Operation

Tsurumi’s range of submersible pumps consist of vortex impeller and standard impeller types. Submersible centrifugal creates rotational energy to push liquid out to the discharge while vortex impeller pumps create vortex to pump liquid out. Generally, though, submersible pumps suck liquid into the pump as they sit at the bottom of a reservoir and push the fluid under pressure through the pipe out to the surface or a designated end location like a treatment facility.
