Tsurumi's KTV/KTVE/KTV Slurry Series

Tsurumi’s KTV range comes in standard, automatic and slurry versions. All series feature three-phase but lightweight dewatering pumps. These submersible pumps offer excellent wear resistance for maximum durability and minimum maintenance even during prolonged operation in the severest conditions. The KTVE pumps are equipped with an electrode type relay unit to eliminate dry-running and reduce power consumption. On the other hand, the KTV Slurry pumps incorporate an agitator to ensure smooth suction of settled matters.

All KTV pumps come with Tsurumi’s original technologies such as the patented oil lifter, double mechanical seal with silicon carbide faces, and anti-wicking cable block to optimise their performance.

Features & Benefits

Know more about the features & benefits of using Tsurumi's KTV/KTVE Series.

Cast aluminum body for portability
Hard-wearing Semi-vortex Impeller
Simple replacement of wearing parts
Supplied with 20 meters heavy-duty, H07RN-F rubber power cable
Top discharge, side flow design for efficient motor cooling
Slim body, lightweight, but powerful pumping

Available Options

All-Pumps can customise pumps according to your requirements and specific applications. Get in touch with us today to find the right pump!

Wide range of pump sizes
Impeller material
Guide rail options
Spare parts
Accessories

Key Specifications

Here are the key specifications of Tsurumi's KTV/KTVE Series.

Flows up to .98 m3/min
Heads up to 35 meters
Solids passage up to 8.5mm
Bore up to 100 mm

Applications

Here is a list of industrial applications for which Tsurumi's KTV/KTVE Series are commonly utilized.

Construction sites
Mines and quarries
Tunnelling
Dewatering
Hire fleets

Different options for a Peristaltic hose pumps tubing

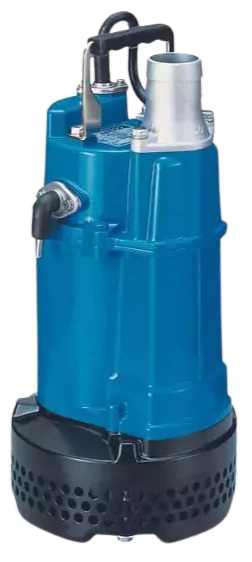

TSURUMI KTV/KTVE SERIES

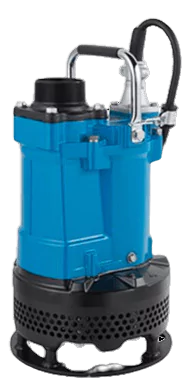

KTV Model

KTVE Energy-Saving Model

OUR RANGE OF AVAILABLE TSURUMI DEWATERING PUMP KTV/KTVE SERIES

Talk to Experts

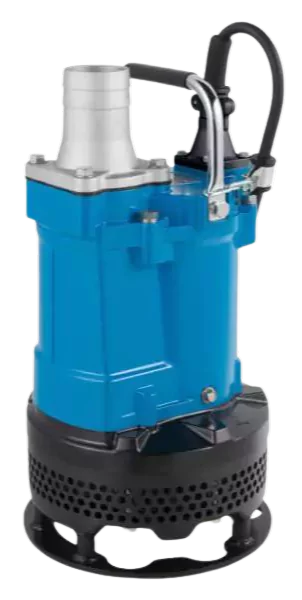

KTV Models

KTV2.75

KTV2-15

KTV2-22

KTV2-37H

KTV2-37

KTV2-55

KTVE Energy-Saving Models

KTVE2.75

KTVE21.5

KTVE22.2

KTVE33.7

PRINCIPLE OF OPERATION

Tsurumi’s range of submersible pumps consist of vortex impeller and standard impeller types. Submersible centrifugal creates rotational energy to push liquid out to the discharge while vortex impeller pumps create vortex to pump liquid out. Generally, though, submersible pumps suck liquid into the pump as they sit at the bottom of a reservoir and push the fluid under pressure through the pipe out to the surface or a designated end location like a treatment facility.

Download KTV Brochure

Download KTV Product Guide

Download KTVE Product Guide

    Model 
    Flow (m3/min)
    Solids (mm) 
    Head (mtrs) 



    KTV2-15 
    0.425 
    8.5 
    20 


    KTV2-22 
    0.525 
    8.5 
    24 


    KTV2-37 
    0.830 
    8.5 
    26 


    KTV2-37H 
    0.500 
    8.5 
    34 


    KTV3-55 
    0.980 
    8.5 
    35 


    KTVE2.75 
    0.320 
    8.5 
    15 


    KTVE21.5 
    0.425 
    8.5 
    20 


    KTVE22.2 
    0.525 
    8.5 
    24 


    KTVE33.7 
    0.830 
    8.5 
    26 


    KTVE35.5 
    0.980 
    8.5 
    35 


    KTV2-50
    0.425
    8.5
    20


    KTV2-80
    0.720
    8.5
    23


Model	Flow (m3/min)	Solids (mm)	Head (mtrs)
KTV2-15	0.425	8.5	20
KTV2-22	0.525	8.5	24
KTV2-37	0.830	8.5	26
KTV2-37H	0.500	8.5	34
KTV3-55	0.980	8.5	35
KTVE2.75	0.320	8.5	15
KTVE21.5	0.425	8.5	20
KTVE22.2	0.525	8.5	24
KTVE33.7	0.830	8.5	26
KTVE35.5	0.980	8.5	35
KTV2-50	0.425	8.5	20
KTV2-80	0.720	8.5	23
