Tsurumi's KTZ-KTZE Range 

Tsurumi's KTZ-KTZE Range 

Tsurumi’s flagship KTZ series features heavy-duty drainage pumps that provide exceptional wear resistance to maximise performance and minimise maintenance during operation in the worst transfer conditions.  Excellent durability is ensured with a cast iron pump casing, motor frame and open impeller. The motor is fitted with internal overloads, enabling simple installation and direct connection to the power supply.

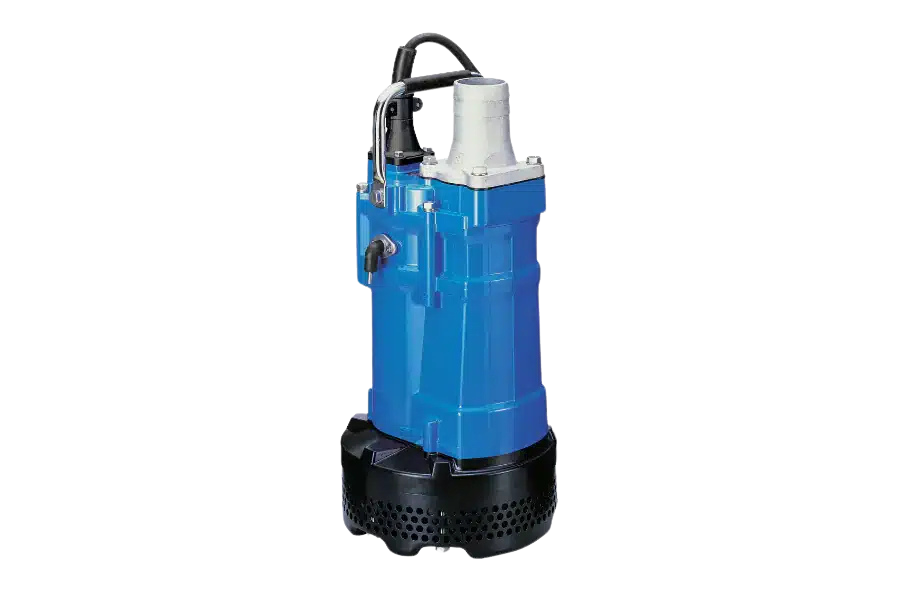

The KTZE pumps are equipped with an electrode type relay unit to eliminate dry-running and reduce power consumption. All KTZ and KTZE pumps come with Tsurumi’s original technologies such as the patented oil lifter, double mechanical seal with silicon carbide faces, and anti-wicking cable block to optimise their performance.


Features & Benefits
Know more about the features & benefits of using Tsurumi's KTZ-KTZE Range .
  • Compact, lightweight, robust construction
  • Top discharge, side flow design for efficient motor cooling
  • Seal pressure relief ports on motor to protect shaft seal
  • Rugged high-chromium cast iron open impeller
  • Easy conversion from high head to high volume performance
  • Multi-directional hose coupling
Available Options
All-Pumps can customise pumps according to your requirements and specific applications. Get in touch with us today to find the right pump!
  • Sea-water resistant version
  • High-temperature liquid version
  • High voltage version
  • All stainless steel version
  • Guide rail options
  • Spare parts
Key Specifications
Here are the key specifications of Tsurumi's KTZ-KTZE Range .
  • Flow: Up to 4 m3/min (66.6 l/sec)
  • Head: Up to 71 meters
  • Solid Diameter: Up to 20 mm
  • Bore: 50-150 mm
  • Motor Output: 2 to 22 kW
  • Motor Phase: Three
  • Starting Method: Direct On-Line (DOL)
Applications
Here is a list of industrial applications for which Tsurumi's KTZ-KTZE Range  are commonly utilized.
  • Construction sites
  • Mines and quarries
  • Tunnelling
  • Dewatering
  • Hire fleets

OUR RANGE OF AVAILABLE TSURUMI DEWATERING PUMP KTZ-KTZE SERIES

Abaque Peristaltic Hose PumpsTalk to Experts

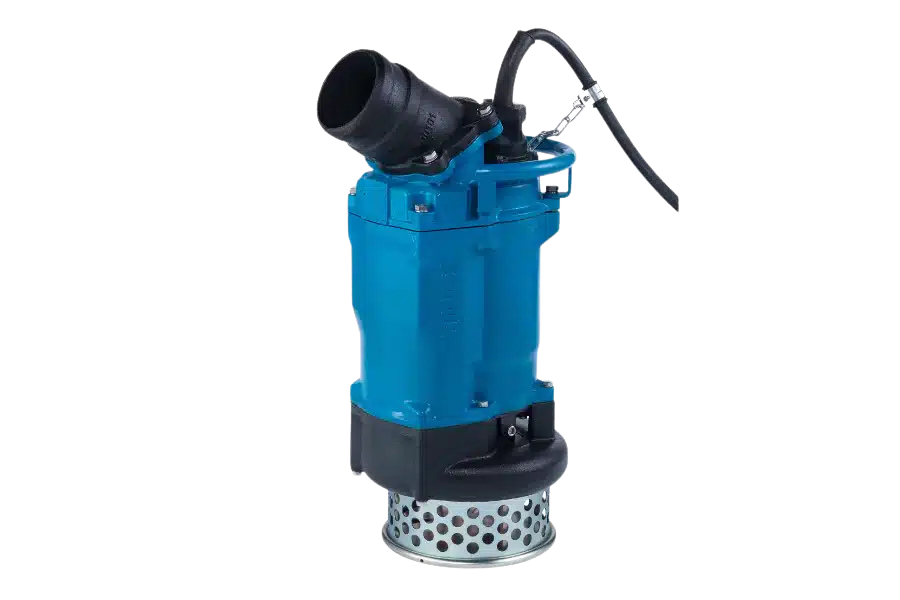

KTZ (1000V) MODELS

Render image for KTZ 1000 Volts model

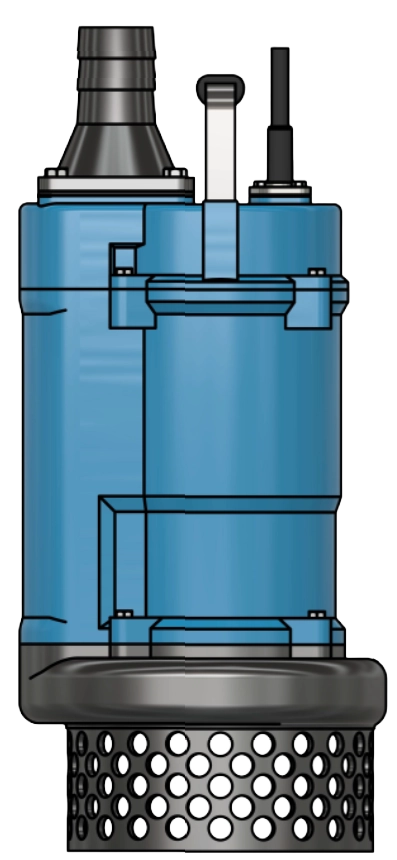

KTZ22.2 1000V
Render image for KTZ 1000 Volts model
KTZ23.7 1000V
Render image for KTZ 1000 Volts model
KTZ32.2 1000V
Render image for KTZ 1000 Volts model
KTZ33.7 1000V
Render image for KTZ 1000 Volts model

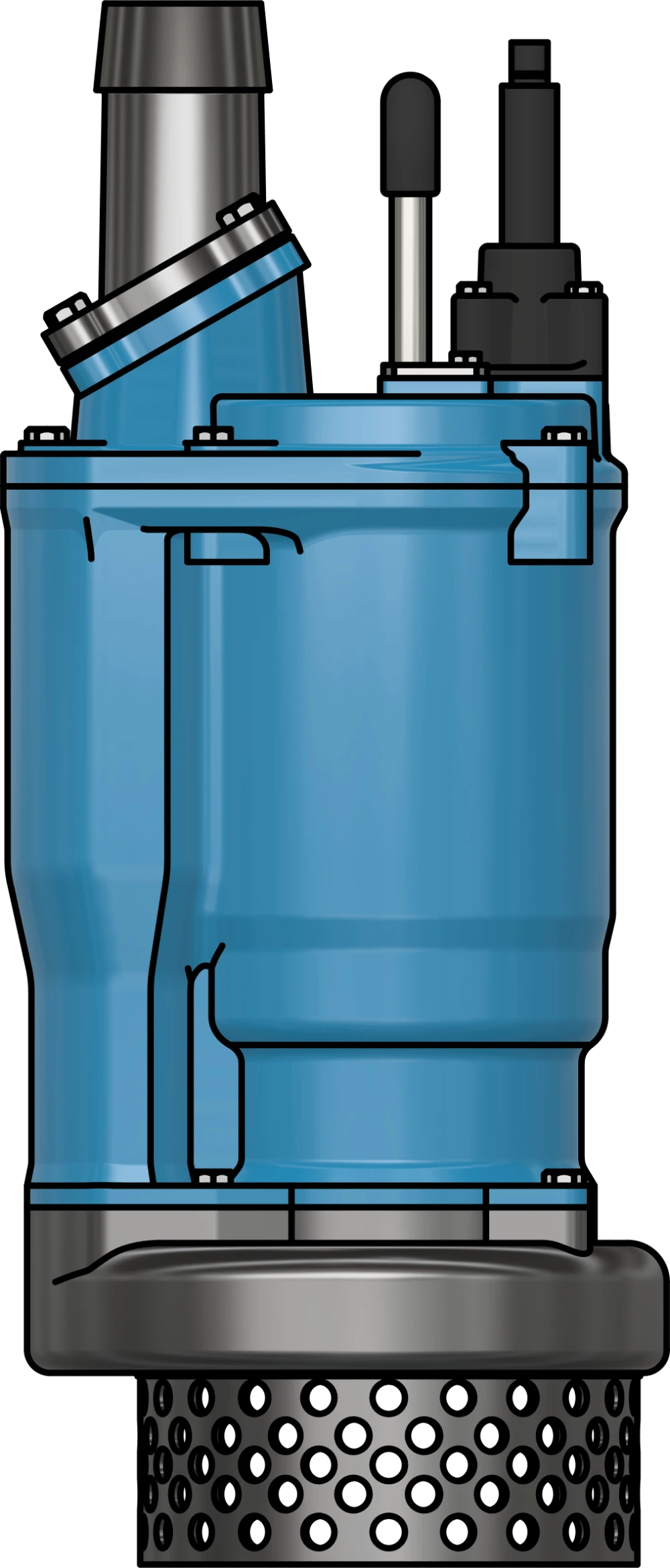

KTZ35.5 1000V
Render image for KTZ 1000 Volts model
KTZ43.7 1000V
Render image for KTZ 1000 Volts model
KTZ45.5 1000V
Render image for KTZ 1000 Volts model
KTZ47.5 1000V
Render image for KTZ 1000 Volts model
KTZ411 1000V
Render image for KTZ 1000 Volts model
KTZ415 1000V

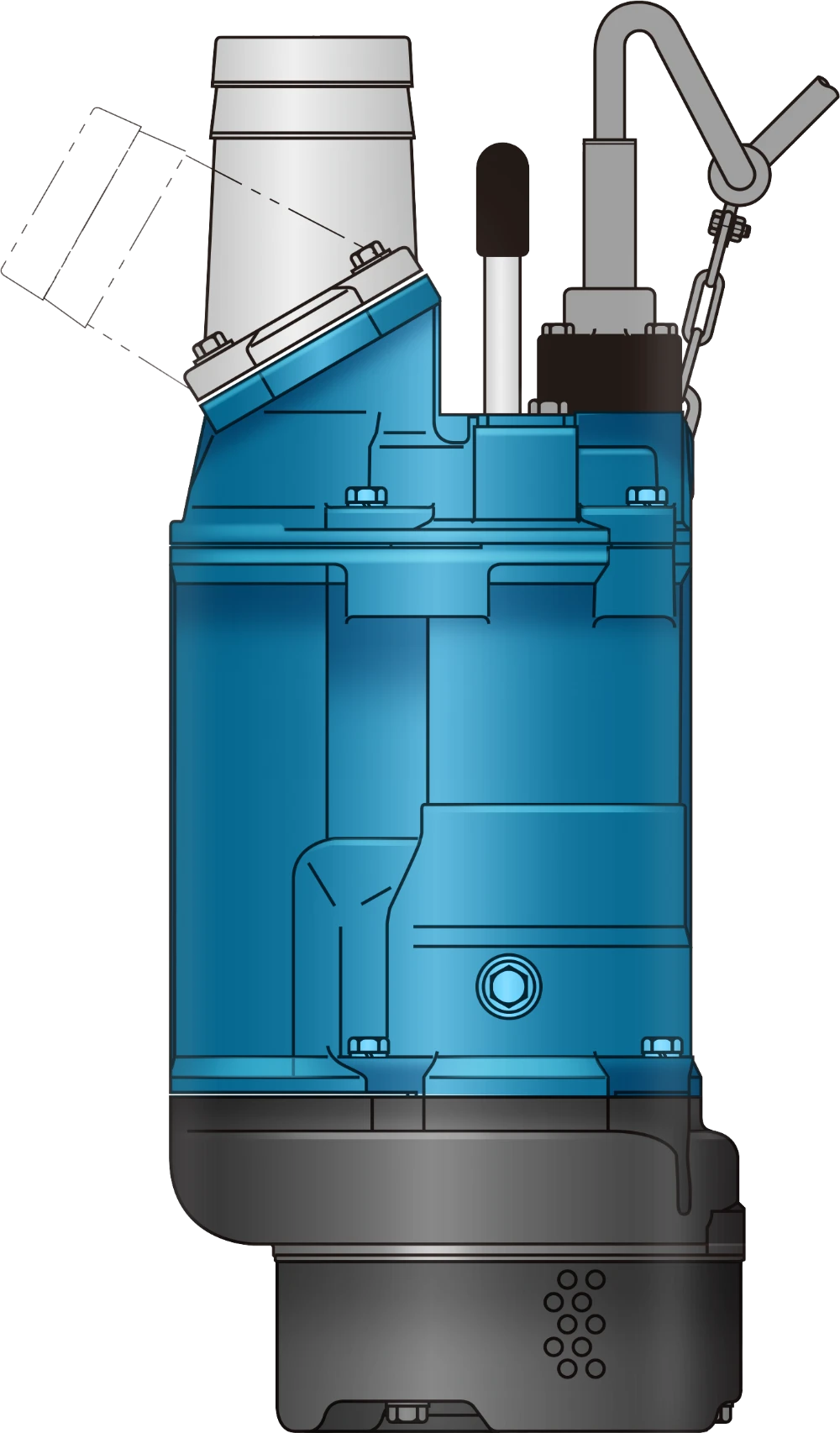

Render image for KTZ 422 Volts model
KTZ422
Render image for KTZ 1000 Volts model
KTZ67.5 1000V
Render image for KTZ 1000 Volts model
KTZ611 1000V
Render image for KTZ 1000 Volts model
KTZ615 1000V

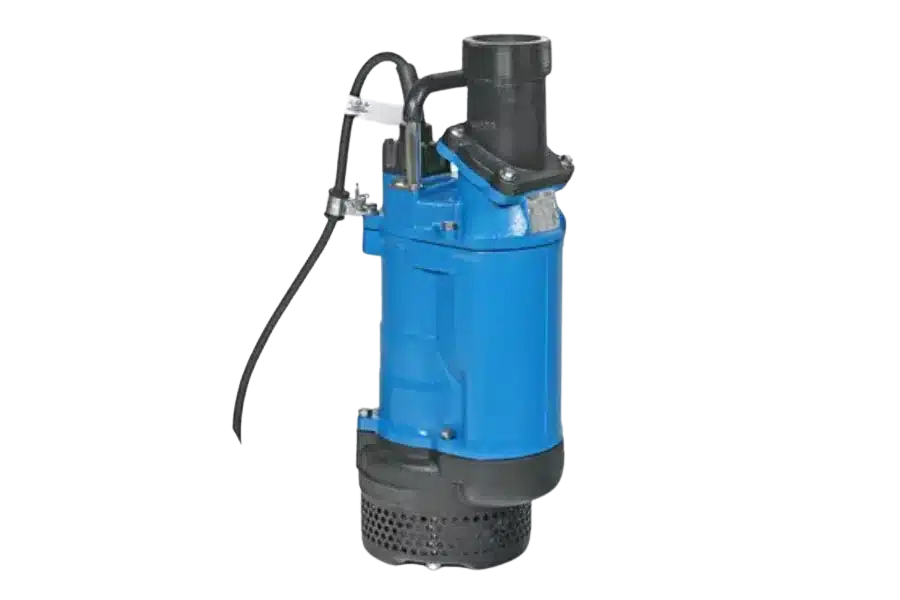

KTZ (415V) MODELS

Render image for KTZ 415 Volts model
KTZ21.5
Render image for KTZ 415 Volts model
KTZ22.2
Render image for KTZ 415 Volts model
KTZ23.7
Render image for KTZ 415 Volts model
KTZ31.5
Render image for KTZ 415 Volts model
KTZ32.2
Render image for KTZ 415 Volts model
KTZ33.7
Render image for KTZ 415 Volts model
KTZ35.5
Render image for KTZ 415 Volts model
KTZ43.7
Render image for KTZ 415 Volts model
KTZ45.5
Render image for KTZ 415 Volts model
KTZ47.5
Render image for KTZ 415 Volts model
KTZ411
Render image for KTZ 415 Volts model
KTZ415
Render image for KTZ 422 Volts model
KTZ422
Render image for KTZ 415 Volts model
KTZ67.5
Render image for KTZ 415 Volts model
KTZ611
Render image for KTZ 415 Volts model
KTZ615
Render image for KTZ 415 Volts model
KTZ622

PRINCIPLE OF OPERATION

Tsurumi’s range of submersible pumps consist of vortex impeller and standard impeller types. Submersible centrifugal creates rotational energy to push liquid out to the discharge while vortex impeller pumps create vortex to pump liquid out. Generally, though, submersible pumps suck liquid into the pump as they sit at the bottom of a reservoir and push the fluid under pressure through the pipe out to the surface or a designated end location like a treatment facility.

Model Capacity Head Max Solid Diam
KTZ22.2 1000V 0.48 26 8.5
KTZ23.7 1000V 0.45 36.5 8.5
KTZ32.2 1000V 0.82 20.5 8.5
KTZ33.7 1000V 0.9 29 8.5
KTZ35.5 1000V 18.7 32 8.5
KTZ43.7 1000V 1.12 18 8.5
KTZ45.5 1000V 1.74 22 8.5
KTZ47.5 1000V 1.38 40 12
KTZ411 1000V 1.44 48 12
KTZ415 1000V 1.98 55 12
KTZ422 1000V 2.82 71 8.5
KTZ67.5 1000V 2.04 31 20
KTZ611 1000V 2.46 33 20
KTZ615 1000V 2.88 39 20
KTZ622 1000V 4.08 55 12
