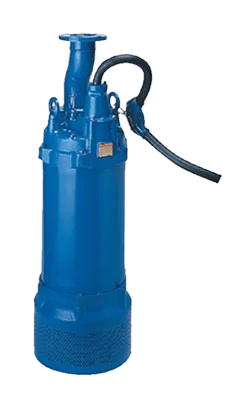

Tsurumi’s LH Range 

Tsurumi’s LH Range 

The Tsurumi LH range comprises high head submersible drainage pumps. The range is available in standard single impeller models, dual impeller models, and double suction impeller pumps. These pumps. Tsurumi’s LH Series features single impeller pumps that can handle medium to high flows at higher heads, yet its top discharge flow-thru design allows low water level operation for extended periods. The LH pumps are designed to provide increased wear resistance in demanding fluid transfer conditions found especially in the mines and construction sites.

industrial

Know more about TSURUMI
LH RANGE Series

Design Advantages
  • Reliable performance in high volume, high head applications
  • Wear-resistant parts and materials for long-lasting performance
  • Flow-thru design for motor cooling and extended dry-run capability
  • Inspection window to check on degraded insulation
  • Equipped with Tsurumi original technologies
  • Internal thermal overload protection
Available Options

All-Pumps can customise pumps according to your requirements and specific applications. Get in touch with us today to find the right pump!



  • All stainless steel version
  • Sea-water resistant version
  • High-temperature liquid version
  • High voltage version
  • Tandem unit – LH + LH-W
  • Guide rail options
  • Special impeller
  • Spare parts
Key Specifications
  • Flows up to 12 m3/min
  • Heads up to 35 meters
  • Solids passage up to 20 mm
  • Bore up to 300 mm

MODEL

FLOW RATE (m3/min)

HEAD (m)

MAX SOLID (mm)

LH33.0

1 

18 

6 

LH422

2.4 

67 

6 

LH430

2.25 

80 

6 

LH615

2.35 

54 

8.5 

LH619

4.4 

42 

12 

LH622

3.75 

54 

12 

LH637

2.4 

90 

6 

LH645

3 

90 

6 

LH675

2.45 

132 

8 

LH690

2.5 

150 

10 

LH6110

3 

178 

10 

LH837

5.4 

51 

20 

LH845

5.45 

50 

20 

LH855

5.75 

70 

20 

LH875

6.5 

70 

20 

LH890

6 

90 

20 

LH8110

6.5 

108 

20 

LH23.0W

0.6

39

6

LH25.5W

0.5

65

6

LH311W

0.7

80

8.5

LH322W

0.95

102

8.5

LH430W

1.22

123

8.5

LH4110W

2

215

8

LH10110D

12

56

20

LH12185D

14

85

20

Applications
  • Construction sites 
  • Mines and Quarries 
  • Dewatering 
  • Tunnelling 
  • Deep Excavations 
LH
INDUSTRIAL

Our range of available
LH Range pumps

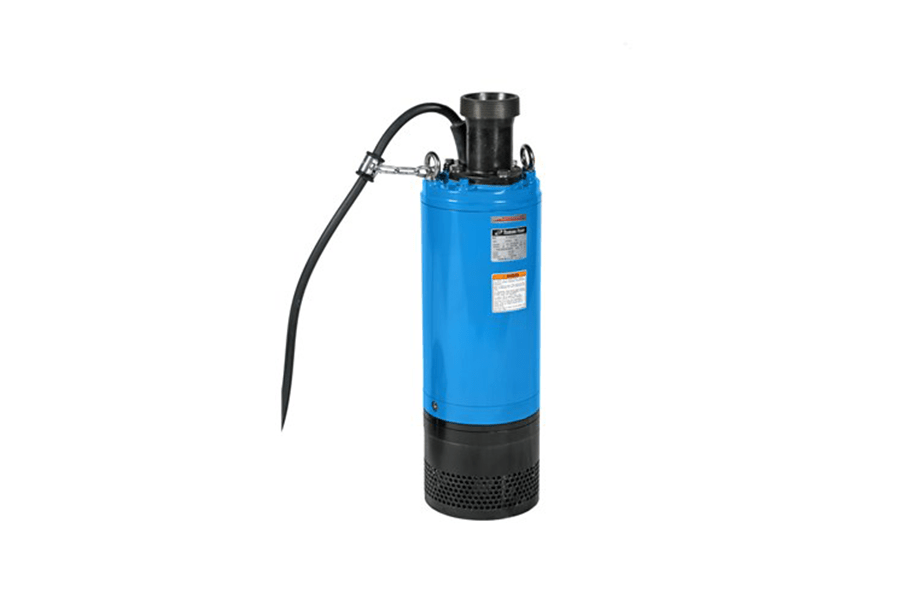

LH33.0 

LH422 

LH430 

LH615 

LH619 

LH622 

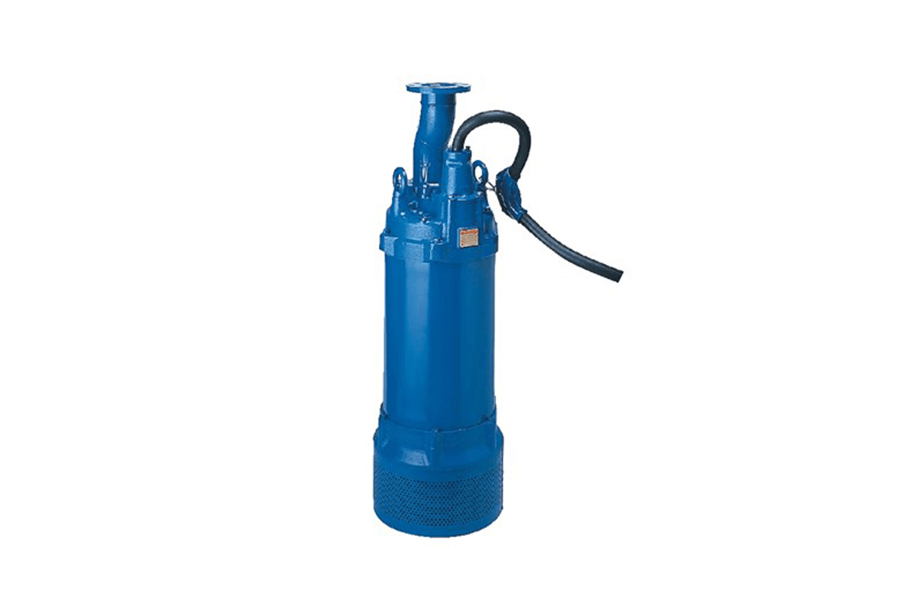

LH637 

LH645 

LH675 

LH690 

LH6110 

LH837 

LH845 

LH855 

LH875 

LH890 

LH8110 

LH23.0W

LH25.5W

LH311W

LH322W

LH430W

LH4110W

LH10110D

LH12185D

PUMP

Principle of Operation

Tsurumi’s range of submersible pumps consist of vortex impeller and standard impeller types. Submersible centrifugal creates rotational energy to push liquid out to the discharge while vortex impeller pumps create vortex to pump liquid out. Generally, though, submersible pumps suck liquid into the pump as they sit at the bottom of a reservoir and push the fluid under pressure through the pipe out to the surface or a designated end location like a treatment facility.
