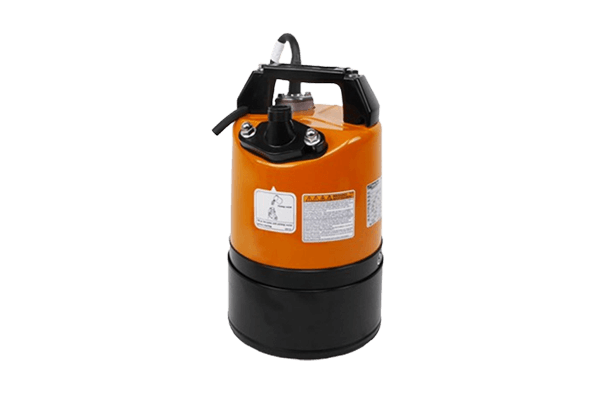

Tsurumi's LSC Pump

The LSC pump is a submersible single-phase portable residue drainage pump. Although compact, this pump conveys powerful pumping action that is complemented by Tsurumi’s host of original technologies such as the oil-lifter, dual mechanical seal with silicon carbide faces, and anti-wicking cable entry.

The LSC pump is equipped with a specially designed bottom plate that allows the pump to drain as low as 1 mm of water level. It also comes with a swing check valve to prevent the reverse flow of the sucked liquid. Finally, the discharge direction can either be vertical or inclined to prevent the discharge hose from bending.

Features & Benefits

Know more about the features & benefits of using Tsurumi's LSC Pump.

V-Ring/Oil Seal protects mechanical seal from abrasion
Valve seat and swing check valve prevent backflow
Compact and lightweight
Top discharge, flow-thru design for maximum motor cooling
Extended dry-run capabilities
Equipped with Tsurumi original technologies

Available Options

All-Pumps can customise pumps according to your requirements and specific applications. Get in touch with us today to find the right pump!

Spare parts

Key Specifications

Here are the key specifications of Tsurumi's LSC Pump.

Flow: 0.17 m3/min
Heads: 11 meters
Bore up to 25 mm

Applications

Here is a list of industrial applications for which Tsurumi's LSC Pump are commonly utilized.

General pumping and drainage
Household use
Commercial use
Slurries
Residue
Flood cleanup
Countermeasures against Dengue and Zika

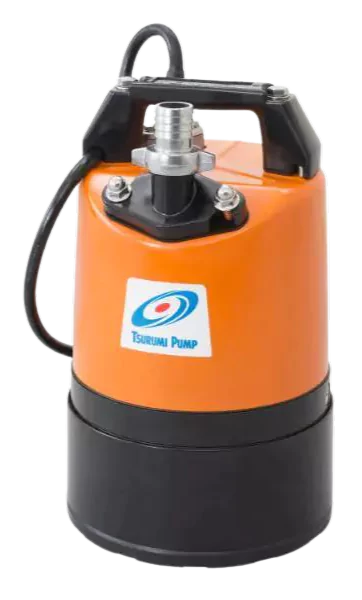

LSC1.4S

Discharge Bore (mm): 25
Motor Output (kW): 0.48
Phase: Single

PRINCIPLE OF OPERATION

Tsurumi’s range of submersible pumps consist of vortex impeller and standard impeller types. Submersible centrifugal creates rotational energy to push liquid out to the discharge while vortex impeller pumps create vortex to pump liquid out. Generally, though, submersible pumps suck liquid into the pump as they sit at the bottom of a reservoir and push the fluid under pressure through the pipe out to the surface or a designated end location like a treatment facility.
