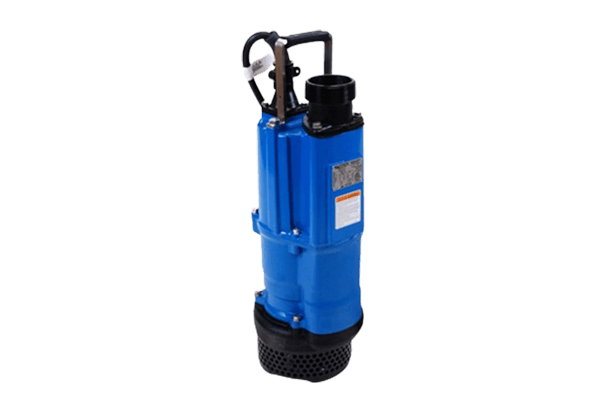

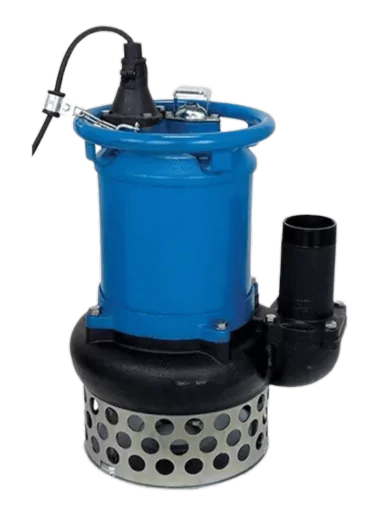

The Tsurumi NK range comprises the portable NK dewatering pumps and the heavy-duty NKZ slurry pumps. The standard NK pumps are single-phase but rugged submersible pumps that are constructed using wear-resistant materials. They have a top discharge, flow-thru design for motor cooling. Meanwhile, the NKZ pumps are three-phase units driven by 4-pole motor. Unlike the standard NK pumps, NKZ pumps have side discharge, spiral design but incorporate a water jacket to cool their motor. Additionally, the NKZ pumps are equipped with agitators to ensure smooth flow of sucked solids and prevent clogging.


industrial

Know more about TSURUMI
NK, NKZ RANGE Series

Design Advantages
  • Single and three-phase models to cover wider range of applications
  • Equipped with Tsurumi original technologies
  • High-strength materials for longer pump life
  • Durable ductile iron semi-open impeller NKZ pumps
  • Durable ductile iron semi-vortex impeller NK pumps
  • Simple replacement wear parts, straightforward maintenance
Available Options

All-Pumps can customise pumps according to your requirements and specific applications. Get in touch with us today to find the right pump!



  • Wide range of sizes
  • Guide rail options
  • Spare parts
Key Specifications
  • Flows up to 4 m3/min
  • Heads up to 29 meters
  • Solids passage up to 30 mm
  • Bore up to 150 mm

MODEL

Flow (m3/min)

Head (m)



Max Solid (mm)

NK3-15

0.42 

20 

8.5 

NK4-22

0.53 

24 

8.5 

NK3-22L

0.8 

18 

8.5 

NKZ3-C3/A3

0.9

12.5

30

NKZ3-D3/B3

1.55

17

30

NKZ3-80H

2

25

20

NKZ3-C4/A4

1.55

17

30

NKZ3-D4/B4

1.55

19

30

NKZ3-100H

2.4

29

20

NKZ3-D6/B6

4

22

30

Applications
  • Construction sites 
  • Quarries 
  • Drainage / dewatering 
  • Concrete mixing plants 
  • Mining / drilling 
  • Bentonite 
NK
INDUSTRIAL

Our range of available
NK, NKZ Range pumps

NK3-15 

NK4-22

NK3-22L 

NKZ3-C3/A3

NKZ3-D3/B3

NKZ3-80H

NKZ3-C4/A4

NKZ3-D4/B4

NKZ3-100H

NKZ3-D6/B6

PUMP

Principle of Operation

Tsurumi’s range of submersible pumps consist of vortex impeller and standard impeller types. Submersible centrifugal creates rotational energy to push liquid out to the discharge while vortex impeller pumps create vortex to pump liquid out. Generally, though, submersible pumps suck liquid into the pump as they sit at the bottom of a reservoir and push the fluid under pressure through the pipe out to the surface or a designated end location like a treatment facility.
