Verderair Hi-Clean AODD Pumps

The Verderair Hi-Clean is a series of food-grade and food-safe polished diaphragm pumps, according to EC 1935/2004, FDA, and 3A. These pumps are designed for food processing applications, as well as cosmetics, personal care, pharmaceutical, and other hygienic industries. The Hi-Clean AODD pumps are designed with fewer clamps, making them faster to disassemble during service.

They are C.I.P compatible and offer added security with optional leak detection and higher-grade surfaces, which meet even the most stringent of pharmaceutical demands. When compressed air is unavailable at the site, the Hi-Clean also comes in electrically driven models with all the benefits of the normal AODD pumps.

Features & Benefits

Verderair Hi-Clean AODD Pumps Features

According to EN1935/2004 & FDA
Strip cleaning: Fast disassemble
DIN 11851 or Tri-Clamp connections
3.2 µm – 0.8 µm polished surface finish
Air valves are quick-acting and non-stalling for higher efficiency
Number of repair parts is limited
Low noise level

Key Specifications

Here are the key specifications of Verderair Hi-Clean AODD Pumps

Max. flow: 870 l/min
Max. discharge pressure: 8 bar

Applications

Here is a list of industrial applications for which Verderair Hi-Clean AODD Pumps are commonly utilized.

Beverage
Biotech
Dairy
Food
Personal Care
Pharmaceutical
Hygienic & Sanitary
Chemical and Industrial

Verdair Hi-Clean AODDProduct Range

Technical Specifications

Options

    MODEL
    MAX FLOW
    MAX DISCHARGE PRESSURE
    MAX PARTICLE SIZE
    VISCOSITY
    CERTIFICATES
    CONNECTION



    VA H20 FD
    61 l/min
    7 bar
    2.4 mm
    5000 cP
    EN 1935. FDA. ATEX
    Tri-clamp and DIN


    VA H25 FD
    156 l/min
    8 bar
    3.2 mm
    12000 cP
    EN 1935. FDA. ATEX


    VA H40 FD
    443 l/min
    8 bar
    4.8 mm
    15000 cP
    EN 1935. FDA. ATEX


    VA H50 FD
    606 l/min
    8 bar
    6.3 mm
    20000 cP
    EN 1935. FDA. ATEX


    VA-2H25 SB
    155.2 l/min
    8 bar
    10.7 mm
    10.0000 cP
    ATEX. EC1935/2004. FDA. USP Class VI. CE. EN 2.1. EN 3.1


    VA-2H40 SB
    397.5 l/min
    8 bar
    12.7 mm
    15.000 cP
    ATEX. EC1935/2004. FDA. USP Class VI. CE. EN 2.1. EN 3.1


    VA-2H52 SB
    681 l/min
    8 bar
    12.7 mm
    20.000 cP
    ATEX. EC1935/2004. FDA. USP Class VI. CE. EN 2.1. EN 3.1


    VA-2H80 SB
    870 l/min
    8 bar
    19 mm
    25.000 cP
    ATEX. EC1935/2004. FDA. USP Class VI. CE. EN 2.1. EN 3.1


    VA-2H40 3A
    397.5 l/min
    8 bar
    12.7 mm
    15.000 cP
    ATEX. EC 1935/2004. FDA. 3A. USP Class VI. CE. EN2.1. EN3.1


    VA-2H52 3A
    681 l/min
    8 bar
    12.7 mm
    20.000 cP
    ATEX. EC 1935/2004. FDA. 3A. USP Class VI. CE. EN2.1. EN3.1


    VA-2H80 3A
    870 l/min
    8 bar
    19 mm
    25.000 cP
    ATEX. EC 1935/2004. FDA. 3A. USP Class VI. CE. EN2.1. EN3.1


    VA-2H40 SF
    302.8 l/min
    8 bar
    30.5 mm
    15.000 cP
    ATEX. EC 1935/2004. FDA. USP Class VI. CE. EN 2.1. EN 3.1


    VA-2H53 SF
    492 l/min
    8 bar
    62.5 mm
    20.000 cP
    ATEX. EC 1935/2004. FDA. USP Class VI. CE. EN 2.1. EN 3.1


    VA-2H54 SF
    340 l/min
    8 bar
    96.5 mm
    20.000 cP
    ATEX. EC 1935/2004. FDA. USP Class VI. CE. EN 2.1. EN 3.1




MODEL	MAX FLOW	MAX DISCHARGE PRESSURE	MAX PARTICLE SIZE	VISCOSITY	CERTIFICATES	CONNECTION

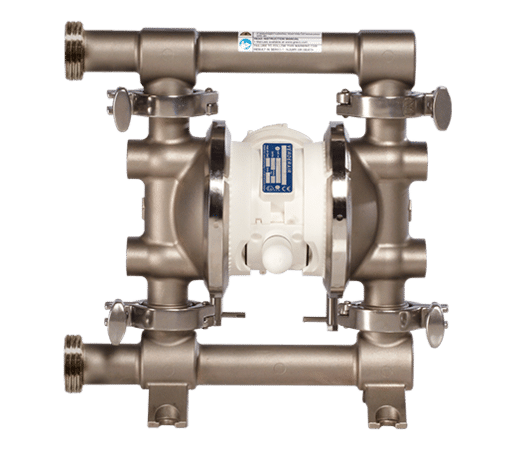

VA H20 FD	61 l/min	7 bar	2.4 mm	5000 cP	EN 1935. FDA. ATEX	Tri-clamp and DIN

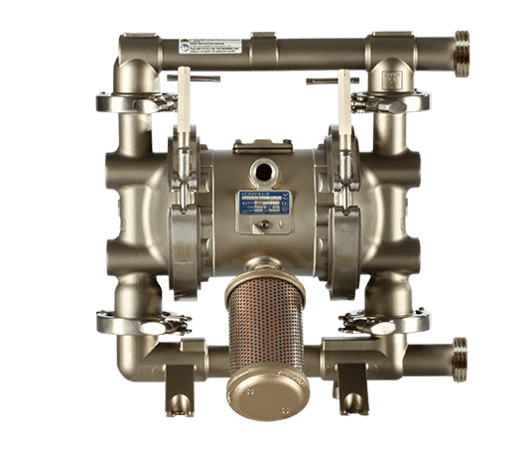

VA H25 FD	156 l/min	8 bar	3.2 mm	12000 cP	EN 1935. FDA. ATEX
VA H40 FD	443 l/min	8 bar	4.8 mm	15000 cP	EN 1935. FDA. ATEX

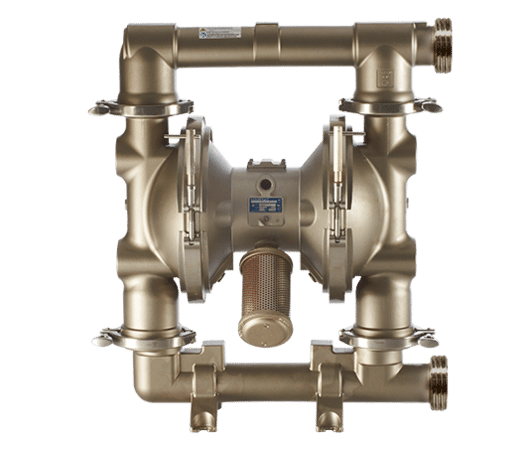

VA H50 FD	606 l/min	8 bar	6.3 mm	20000 cP	EN 1935. FDA. ATEX
VA-2H25 SB	155.2 l/min	8 bar	10.7 mm	10.0000 cP	ATEX. EC1935/2004. FDA. USP Class VI. CE. EN 2.1. EN 3.1

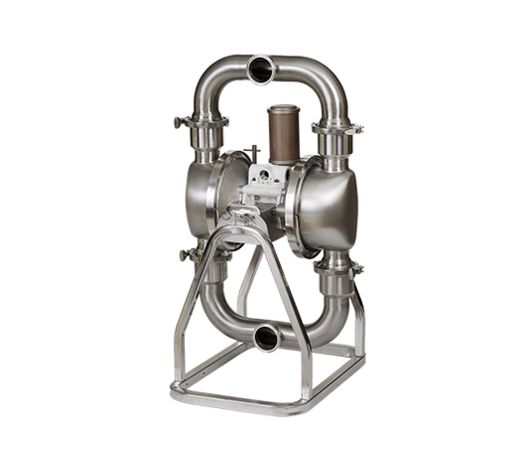

VA-2H40 SB	397.5 l/min	8 bar	12.7 mm	15.000 cP	ATEX. EC1935/2004. FDA. USP Class VI. CE. EN 2.1. EN 3.1
VA-2H52 SB	681 l/min	8 bar	12.7 mm	20.000 cP	ATEX. EC1935/2004. FDA. USP Class VI. CE. EN 2.1. EN 3.1
VA-2H80 SB	870 l/min	8 bar	19 mm	25.000 cP	ATEX. EC1935/2004. FDA. USP Class VI. CE. EN 2.1. EN 3.1
VA-2H40 3A	397.5 l/min	8 bar	12.7 mm	15.000 cP	ATEX. EC 1935/2004. FDA. 3A. USP Class VI. CE. EN2.1. EN3.1
VA-2H52 3A	681 l/min	8 bar	12.7 mm	20.000 cP	ATEX. EC 1935/2004. FDA. 3A. USP Class VI. CE. EN2.1. EN3.1
VA-2H80 3A	870 l/min	8 bar	19 mm	25.000 cP	ATEX. EC 1935/2004. FDA. 3A. USP Class VI. CE. EN2.1. EN3.1

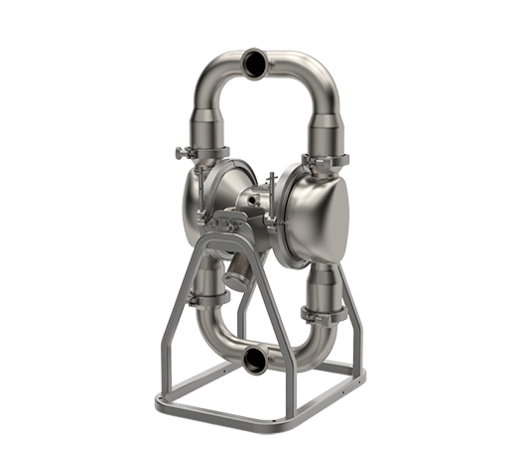

VA-2H40 SF	302.8 l/min	8 bar	30.5 mm	15.000 cP	ATEX. EC 1935/2004. FDA. USP Class VI. CE. EN 2.1. EN 3.1
VA-2H53 SF	492 l/min	8 bar	62.5 mm	20.000 cP	ATEX. EC 1935/2004. FDA. USP Class VI. CE. EN 2.1. EN 3.1
VA-2H54 SF	340 l/min	8 bar	96.5 mm	20.000 cP	ATEX. EC 1935/2004. FDA. USP Class VI. CE. EN 2.1. EN 3.1
