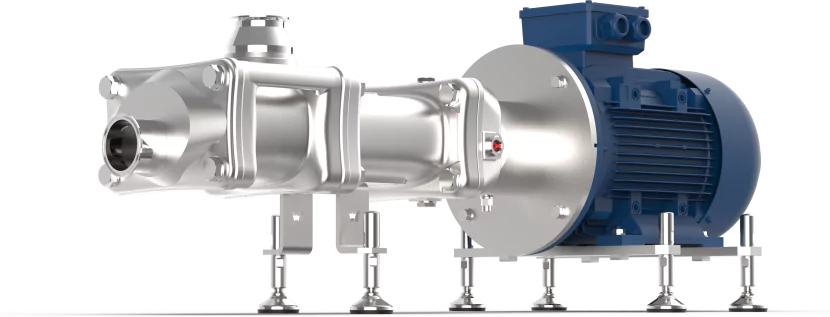

Wangen's Twin NG Pumps

The WANGEN Twin NG twin screw pump series features ingenious pumping technology that can eliminate all the common centrifugal pump problems, including time-consuming cleaning, frequent repairs, excessive wear, and costly facility downtime through its excellent CIP capability. In addition, the Twin NG is designed to move low to high viscosity, volatile, or gaseous fluids for applications that require maximum hygiene and efficiency.

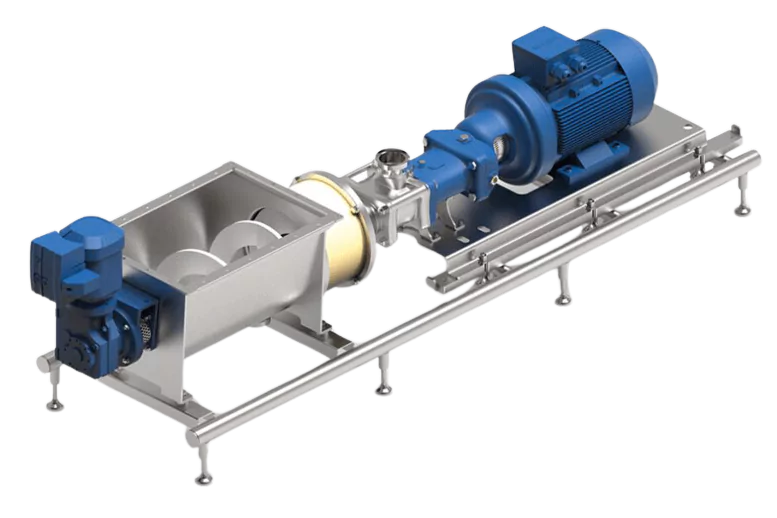

Wangen also designed the Vario Twin add-on module with hopper and screw conveyor to enable the Twin NG pumps to handle more viscous and not flowable media for the standard twin screw pump.

Features & Benefits

Know more about the features & benefits of using Wangen's Twin NG Pumps.

No need for re-synchronisation, thanks to Fast-X-change® technology
Cartridge design for simple and quick seal replacement
Coupling alignment by self-centring flange housing
Higher pump capacity and differential pressure
Gentle pumping and CIP cleaning in a single pump
High suction lift with axial pumping and slow acceleration of media

Available Options

We customise pumps according to your specific application. Get in touch with us to know your options.

Add-on module
Variety of sizes
Mounting options
Spare parts

Key Specifications

Here are the key specifications of Wangen's Twin NG Pumps.

Output up to 200 m³/h
Temperature max. +130 °C
Viscosity up to 1.000.000 mPas

Applications

Here is a list of industrial applications for which Wangen's Twin NG Pumps are commonly utilized.

alcohol
flavourings
beer
chili sauce
cremes
ice cream
protein
paint
fat
meat loaf
liquid sugar
fruit juice
gelatine
glycerin
hot wine lees
yeast
raspberries
honey
hop extract
yoghurt
glue
jam
mayonnaise
milk
olive paste
pectin
processed cheese
chocolate
shampoo
soap
mustard
soybean oil
soup flavours
tomato puree
tofu
vaseline
sausage meat

Different options for a Peristaltic hose pumps tubing

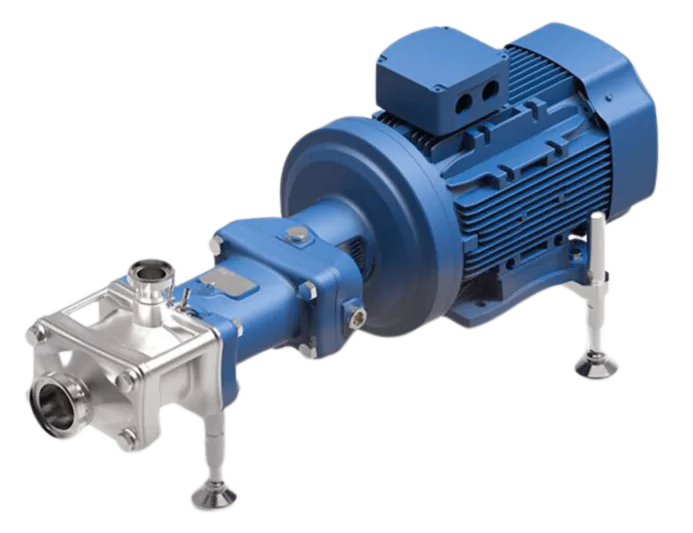

Twin NG 70

Twin NG 104

Twin NG 130

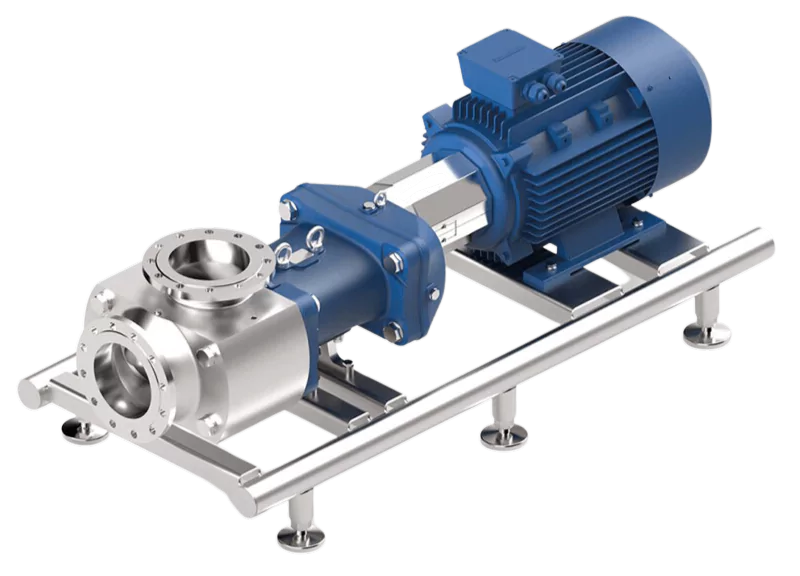

Twin NG 180

OUR RANGE OF AVAILABLE Wangen's Twin NG Pumps

The WANGEN Twin NG series offers innovative twin screw pump technology that tackles common pump issues, ensuring efficient operation and minimal downtime. With its ability to handle a wide range of fluid viscosities and its excellent CIP capability, it's a versatile solution for many applications. Check out our range of WANGEN Twin NG pumps to see how it can improve your operations.

Talk to Experts

Abaque Peristaltic Hose Pump HDX40 model

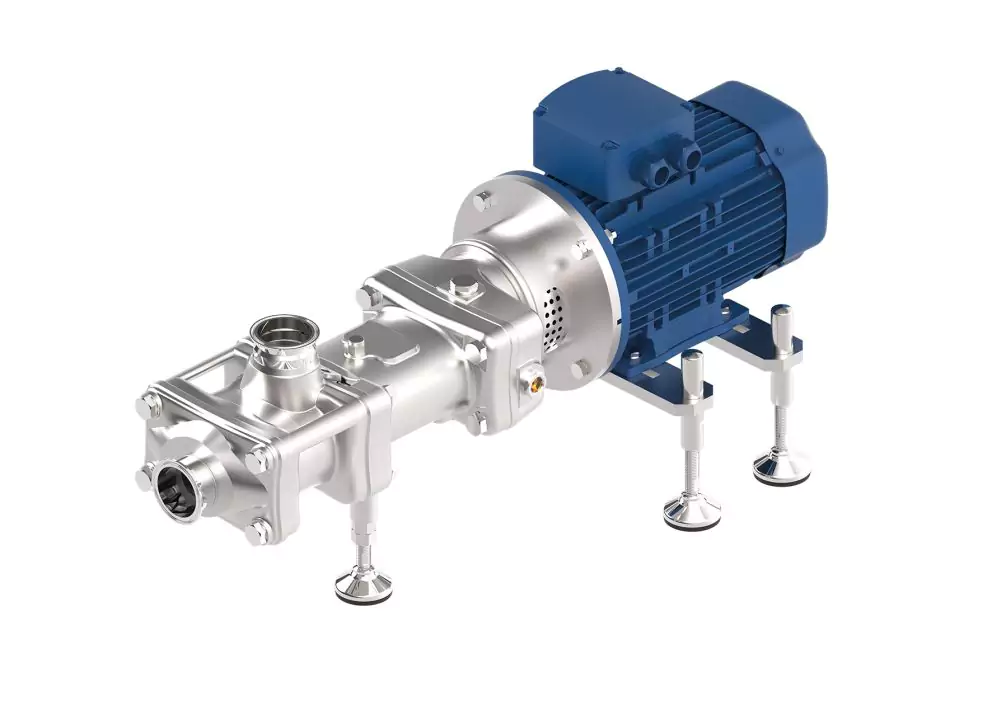

Twin NG 70

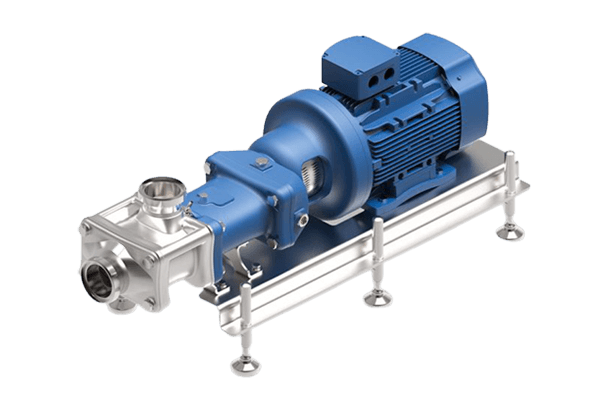

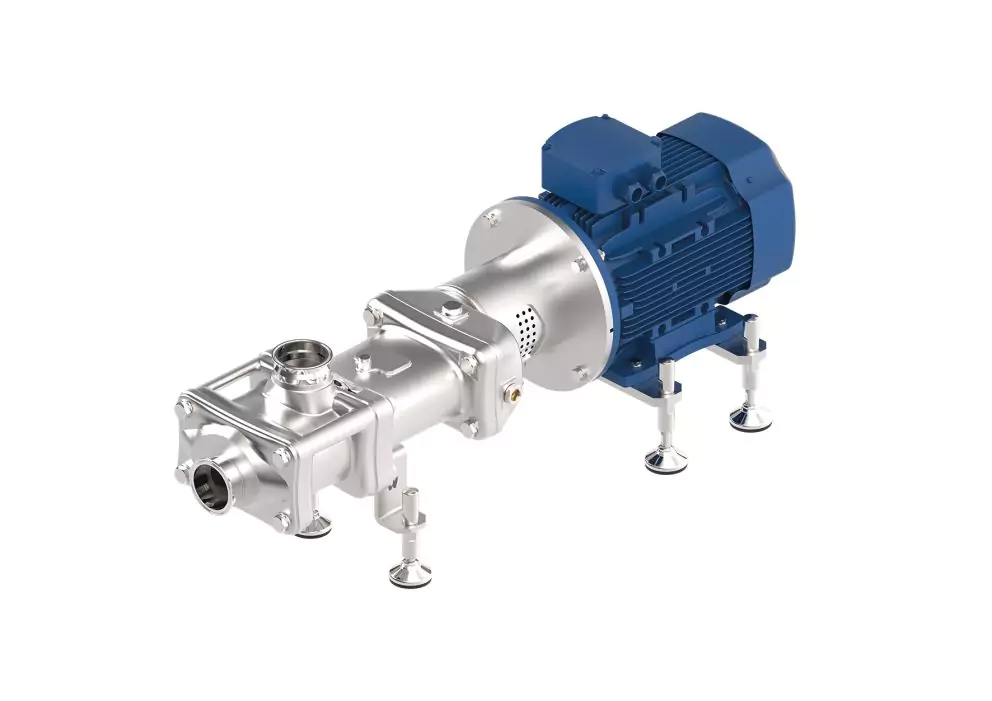

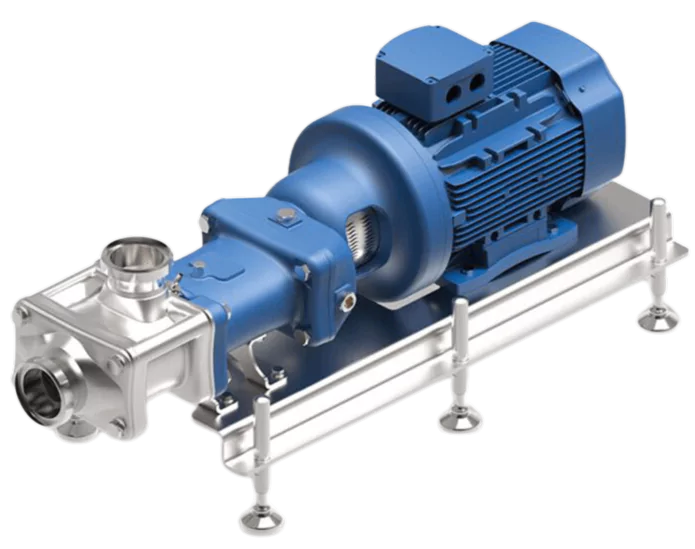

Twin NG 104

Twin NG 130

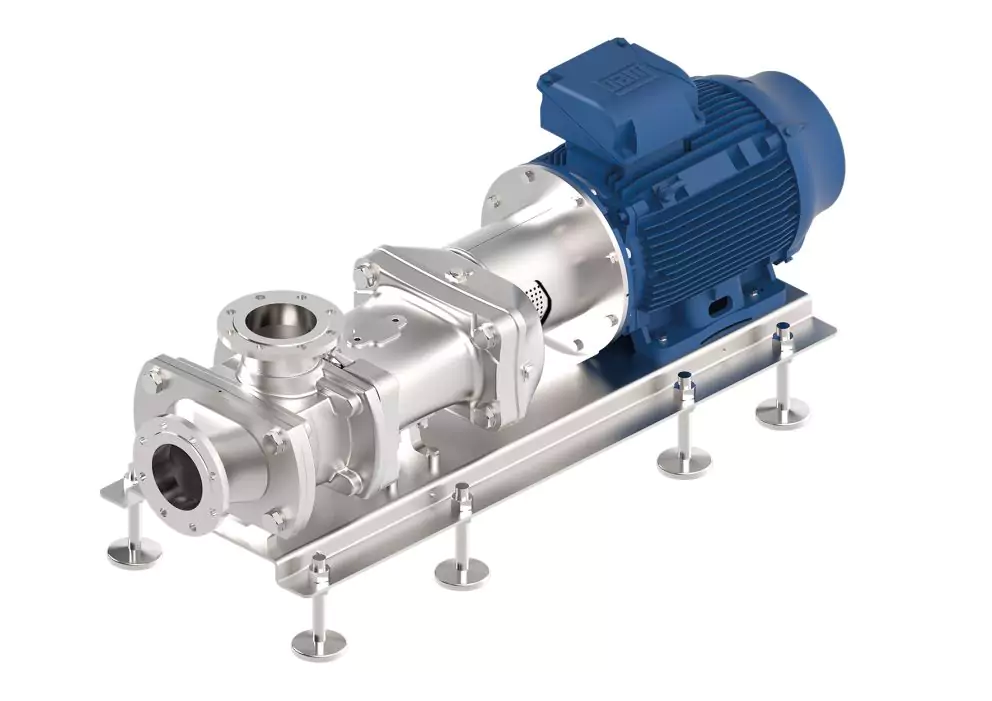

Twin NG 180

PRINCIPLE OF OPERATION

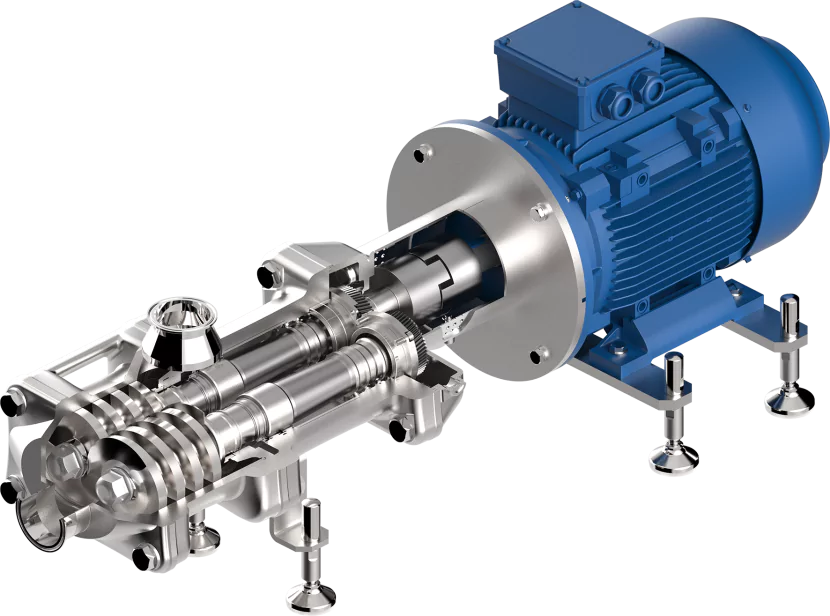

The Wangen Twin Screw Pumps function on the principle of positive displacement. A set of two spindles located inside a closed compartment helps pull the liquid from the suction side of the pump as they rotate in opposite directions. A small gap is maintained between the casing inside the compartment and the rotating spindles. The spindles are fitted with timing gears at their ends. Besides these, a motor is used to start these pumps. The spindles pull the liquid towards the centre while maintaining a perfect hydraulic balance. In this way, the fluid efficiently passes towards the discharge end of the pumps.

    MODEL/SIZE
    MAX SOLID PASSAGE
(mm)
    Max. pump volume (m³/h)
at a viscosity of 1 mPa·s
    Maximum peak
pressure (bar)



    Twin NG 70
    20
    25 (at 4000 rpm)
    30


    Twin NG 104
    25
    60 (at 3600 rpm)
    30


    Twin NG 130
    30
    100 (at 3000 rpm)
    25


    Twin NG 180
    40
    200 (at 2600 rpm)
    20


MODEL/SIZE	MAX SOLID PASSAGE (mm)	Max. pump volume (m³/h) at a viscosity of 1 mPa·s	Maximum peak pressure (bar)
Twin NG 70	20	25 (at 4000 rpm)	30
Twin NG 104	25	60 (at 3600 rpm)	30
Twin NG 130	30	100 (at 3000 rpm)	25
Twin NG 180	40	200 (at 2600 rpm)	20
