Our name comes from the company’s head office and main production site, which are located in Wangen in the Allgäu region of Germany. This is our home: in the southern part of Germany where three countries – Austria, Switzerland and Germany – come together at Lake Constance.

Progressing Cavity Pumps



Pure power: Due to the use of cardan joint in our progressing cavity pumps, a key advantage of our philosophy is clear here: Wangen pumps guarantee low-maintenance operation which is practically fault-free. For this reason, we only use top-quality and robust components.

Self-priming pumps

kb-50-s-grauguss

Quality characteristics of the WANGEN self-priming pumps are gentle pumping, a virtually gap and crevice-free design, high availability and little maintenance.

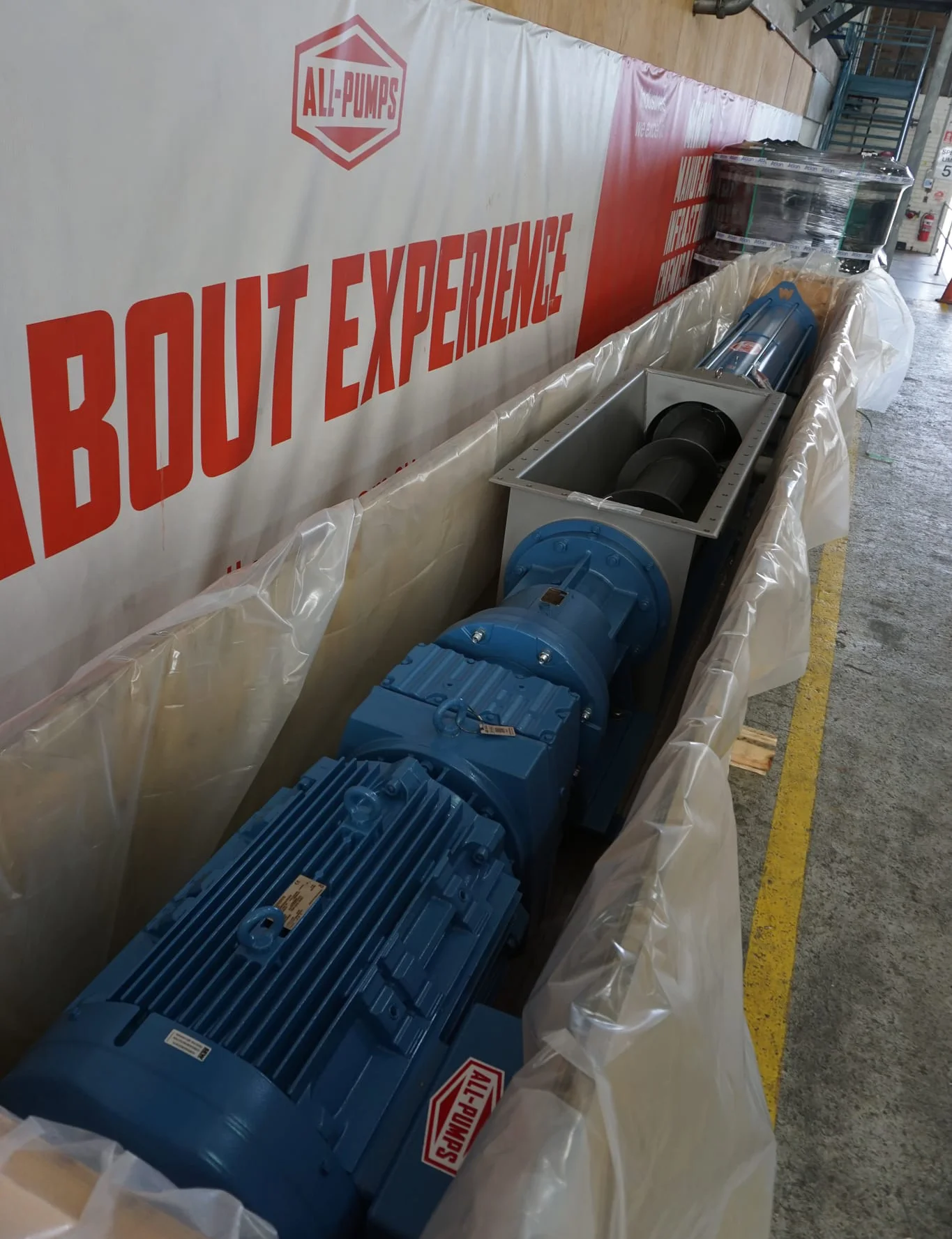

Hopper feed pump

kl-50-r_grauguss

No matter, what you throw in: WANGEN Hopper Feed Pumps impresses with high flow rates, even when handling abrasive or fibrous additives.

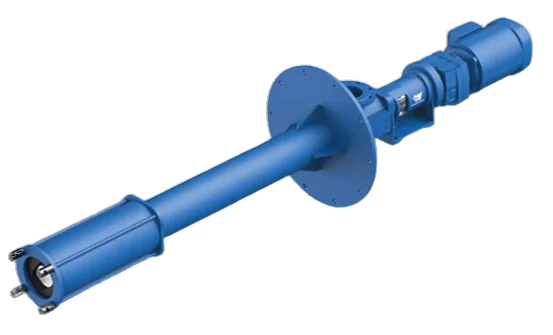

Immersion pump

kl-50-t-grauguss

With our immersion pump we get to the bottom of the object. And we do it with an in-depth carefulness, that leaves only a minimum of residues.

Hygienic progressing cavity pumps

kb-20-sl-edelstahl

The WANGEN hygienic progressing cavity pumps are a further development of our pump series especially for the food and beverage industry.

Sanitary twin screw pumps

Twins are a boon. This is also the case with our WANGEN Twin, which achieves top results for SIP and CIP cleaning. Due to its high rpm range the Wangen Twin screw pump can be used for both, pumping and cleaning.

Type WANGEN Twin NG

twin_104_NG_gross

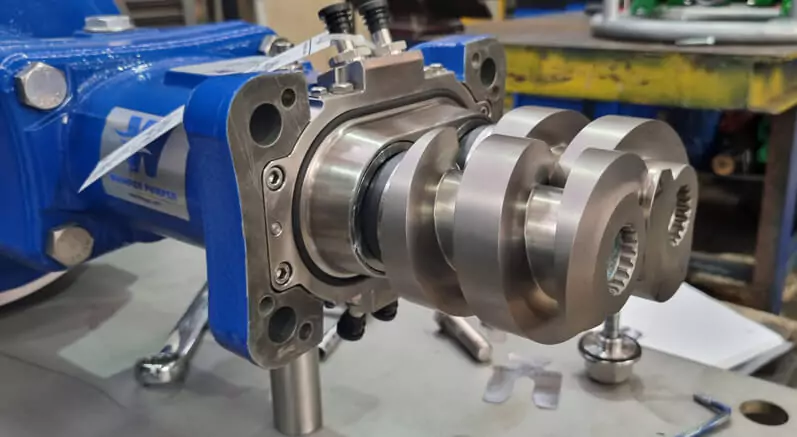

The new generation of the WANGEN Twin NG screw pump is part of the hygienic pumping solutions from WANGEN and was designed to reliably pump low to highly viscous, volatile or gaseous products and for applications where maximum hygiene and efficiency is required.The hygienic pump for food and beverages, chemicals and cosmetics.

  • Spindle change without re-synchronisation of the spindle shafts, enabled by WANGEN PUMPEN’s fast-X-change® technology.
  • Seal change simple and fast as a result of cartridge construction design.
  • Alignment of the coupling by a self-centring flange housing (lantern optionally available). As a result, no re-alignment of the coupling is needed, e.g. after service activities.



Benefits and Characteristics
  • Excellent price/performance ratio
  • Low Life Cycle Costs
  • High suction lift (self-priming)
  • High operational reliability
  • Compact design
  • Compact design avoids dead space and stagnant zones
  • Rigorous modular principle for high flexibility, low stocking of spare parts, short downtimes for maintenance and repairs
  • Almost pulsation-free conveyance
  • Optional heating or cooling jackets
  • Optionally with base plate or mobile
  • Gentle pumping
  • Special versions available for adapting to existing plants
  • Maintenance-friendly
  • Quick and easy manual cleaning
  • Eliminates the need for a separate centrifugal pump for CIP cleaning
  • Large viscosity range
  • High priming capacity
  • Low servicing costs
  • Top results for SIP and CIP cleaning
  • Can run dry

Type WANGEN VarioTwin

VarioTwin_104_grundrahmen_web_schatten
Gently feeding high-viscosity media: The WANGEN VarioTwin is an hygienic and patented add-on module to the WANGEN Twin screw pump, with hopper and screw conveyor.
Benefits and Characteristics
  • ‘Coreless’ screw for gentle product treatment of media.
  • Hygiene-optimised design; therefore, minimal dead spaces.
  • Cantilevered support system of the screw for maximum hygiene with minimal residues
  • Low space requirement due to compact design.
  • Drive independently controlled pump speed.
  • Low energy consumption due to energy-efficient
  • Materials are FDA-compliant, product-contacting

Modules

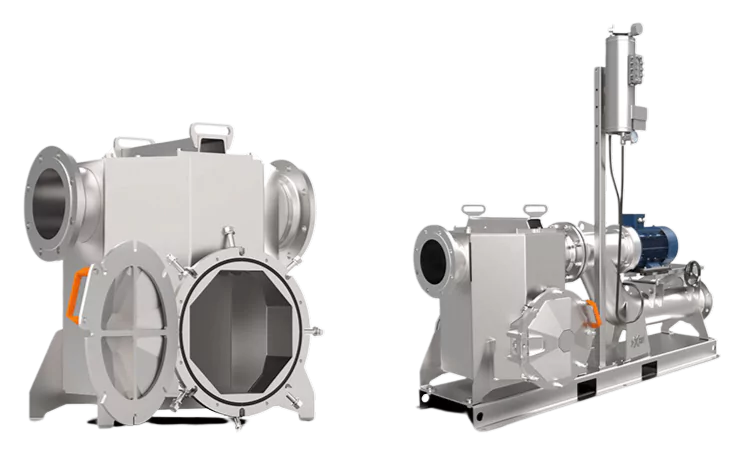

Type X-UNIT

X-UNIT_klein
The modular system for reliable protection of plant equipment:
X-TRACT (debris removal) + X-CUT (cutter) = X-UNIT

The WANGEN X-UNIT consists of the two modules X-TRACT and X-CUT. Both components are available separately and are optimally co-ordinated with each other as an X-UNIT.

Increased process safety through removal of system-harmful foreign bodies and debris with the aid of the foreign body separator X-TRACT and the cutting unit X-CUT. Optimum adaptation of the cutting unit to the medium easily possible.

Benefits and Characteristics
  • process-optimised adaption of the pumped media by simple change of the screen geometrie
  • flow-optimised catch container
  • foreign body removal through wheelbarrow possible with mounting stand
  • additional rinse connections available
  • no movable component parts necessary for separation of foreign bodies
  • Optimum adaption of the cutting unit to the media
  • High operational reliability
  • Standard flange and compact, space-efficient construction design
