Waukesha’s Universal Lobe Series

Waukesha’s Universal Lobe Series

Waukesha’s new and improved range of lobe pumps is designed to outperform competitors in many industrial setups. The Universal lobe pumps are low-cost solutions but highly efficient as they adapt some Universal II’s advanced technology. The Universal I Series highlights versatility, reliability and easy-to-disassemble design for easier COP. The Universal II Series comprises modified and high strength pumps for sanitary and industrial applications. The Universal III pumps are also known for their high sanitary features, making them ideal for handling fluids in the food, beverage, and pharmaceutical industries.

industrial

Know more about Waukesha
Universal Lobe Series

Design Advantages
  • Tighter clearance and higher efficiency with non-galling Waukesha “88” alloy rotors
  • Versatile 3-Way mounting of gearcase
  • No bearing in product zone, less wear, no contamination
  • Larger diameter shafts guarantee greater strength and durability
  • Greased lubed bearings for positive lubrication
  • Rotors locked with nuts allow safe bidirectional flow
Available Options

We customise pumps according to your specific application. Get in touch with us to get a full list of options.



  • Seal options
  • Cover and gearcase options
  • Rotor options
  • O-ring options
  • Spare parts
  • Mounting/base plate
Key Specifications
  • Capacity up to 119.2 m3/h
  • Pressures up to 34.5 bar

Universal 1 Series

  • Function: Sanitary Pumping, COP
  • Capacity up to 102.2 m3/h
  • Pressures up to 13.8 bar

Universal 2 Series

  • Function: Sanitary, Industrial
  • Capacity up to 102.2 m3/h
  • Pressures up to 34.5 bar

Universal 3 Series

  • Function: Sanitary, CIP Capable
  • Capacity up to 102.2 m3/h
  • Pressures up to 34.5 bar

Universal Lobe Series

  • Function: High Volume, CIP
  • Capacity up to 119.2 m3/h
  • Pressures up to 20.7 bar



Applications

Bakery and Confectionary

  • Batters
  • Frostings
  • Fats & Oils
  • Yeast
  • Syrups
  • Cream Fillings
  • Chocolate

Beverage

  • Beer, Wort, Soft Drinks
  • Fruit Drinks
  • Juice Concentrate

Canning

  • Baby Foods
  • Fruit Puree
  • Puddings
  • Jellies
  • Salad Dressings

Dairy

  • Cream
  • Milk Ice Cream Mix
  • Yogurt

Cosmetics

  • Face Creams & Lotions
  • Hair Styling Gels
  • Dyes & Alcohols

Chemical/Industrial

  • Solvents
  • Fuels
  • Lubricants
  • Soaps

UNIVERSAL 1

  • Pharmaceutical/Health Care
  • Pill Pastes
  • Syrups
  • Extracts
  • Emulsions
  • Slurries
  • Tooth Paste



unilobe
INDUSTRIAL

Our range of available
unilobe pumps

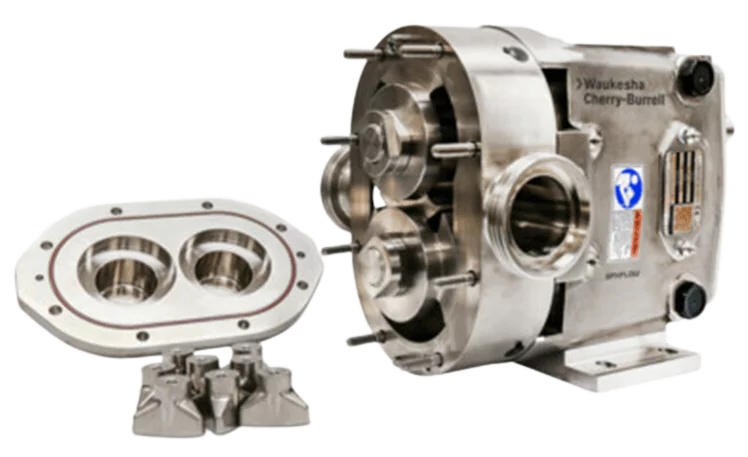

UNIVERSAL 1 SERIES

UNIVERSAL 2 SERIES

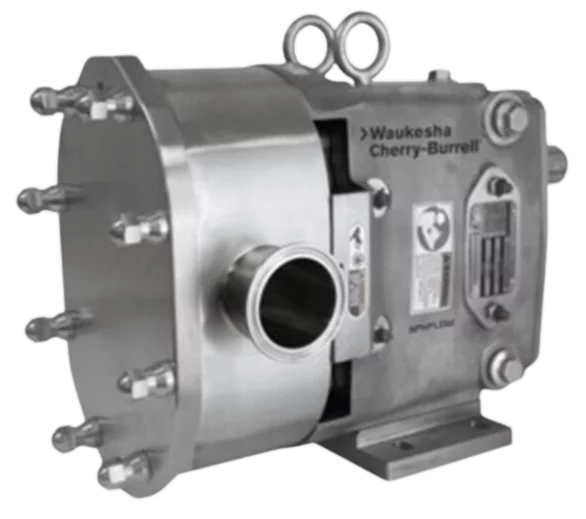

UNIVERSAL 3 SERIES

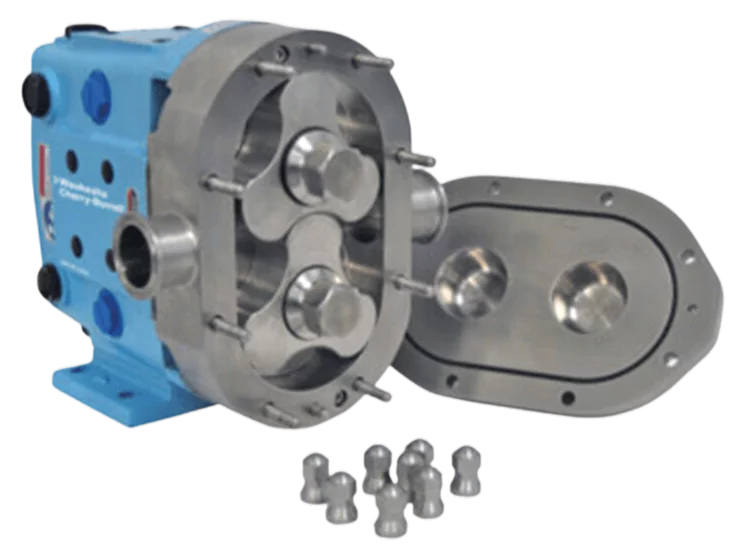

UNIVERSAL LOBE SERIES

PUMP

Principle of Operation

Waukesha lobe pumps are positive displacement pumps utilizing contra-rotating lobes. The rotors are held by a shaft that is mounted within an external gearbox and supported by bearings. The timing gears are also placed on the shafts.

As the timing gears rotate, they transfer the energy from the driveshaft to the driven shaft. This synchronizes the rotors so that they rotate without contact with each other. As the rotors pass the suction port, the cavity generated increases creating a pressure decrease, which induces the pumped medium to flow into the rotor case.

OBJECTIVES

SERVICING YOU ANYWHERE
IN AUSTRALIA

All-Pumps offers bespoke solutions to your manufacturing processes. Whether you need a new pump, replacement part, repair services, system design, or monthly maintenance, call our professionals!

Our customer support services set us apart, we take responsibility to give you the best experience possible.

How our experts can help you:

  • Design and cost a system or project
  • Customise and engineer solutions for your specific application
  • Provide spare parts and maintenance services
  • Conduct Site-Wide Pump Health Audits with our Nexus Program
  • Pump Manuals and Technical Guides

And so much more!
