Albany’s External Gear

Albany’s External Gear

The Gear type pump range, known as ‘G’ type, refers to Albany’s family of External Gear Pumps. They are available in horizontal, vertical or tank top mount variations. These pumps are often used as lubrication pumps in machine tools, in fluid power transfer units, and as oil pumps in engines. They have tighter internal clearances that allows a more reliable measurement of liquid passing through a pump and greater flow control.

industrial

Know more about Albany
External Gear Series

Design Advantages
  • Robust and very reliable
  • Require little maintenance
  • Compact construction but powerful pumping operation
  • Capability to handle a range of temperature and fluid types
  • Highly customisable
  • Precise dosing
Available Options

We customise pumps according to your specific application. Get in touch with us today to get a complete list of your options.



  • Options for Spur, Single, or Double Helical Gears
  • Extensive model options
  • Materials
  • Spare parts
  • Accessories
  • ATEX models
  • Mounting
Key Specifications

RANGE

MAX TEMP

DISCHARGE PRESS (BARg)

MAX CAPACITY (lph)

MOVING PARTS

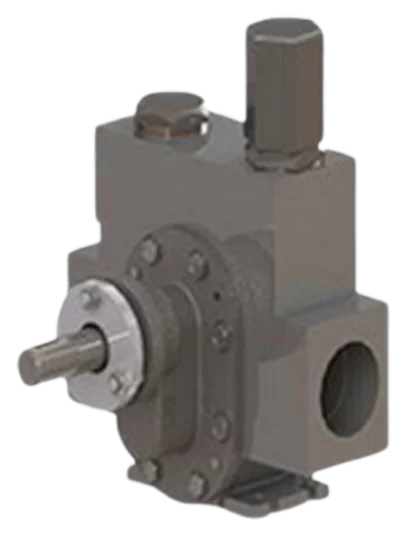

GA (General Application Pumps)

200°C (320°C with a steel casing)

25 BARg

136380

Two moving parts

GB (heated & Unheated Pumps)

220 °C

21 BARg



136380



Double helical gear

GC

Compressor/turbine Pumps



-ATEX COMPLIANT

-MECHANICAL SEAL WITH THROTTLE BUSH

-OPTION FOR RELIEF VALVE AVAILABLE

GD - DUPLEX PUMP SET

-Eexd Atex pump sets for hazardous areas

-Auto changeover control panels

-Flow rates between 4 and 100 litres per minute

-Pressure up to 10 bar

GE

Foam Concentrate Pumps

-Driven by Albany Pelton Wheel

-Viscosity range from 3 cps to 2000 cps

-VdS CEA approved

-Reversible flow

GF

Foam Concentrate Pumps for Low Viscosities



80 °C

18 BARg

78000

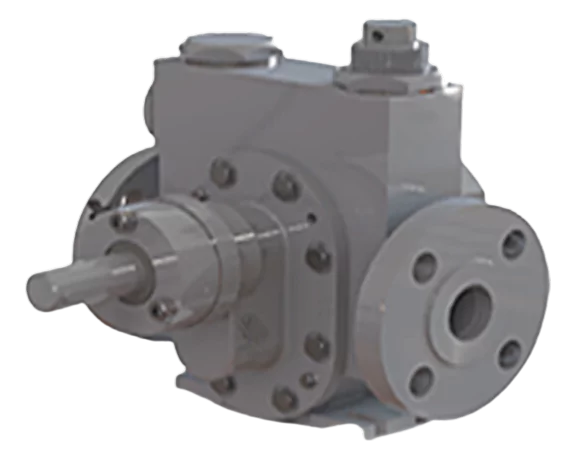

GG - OIL & GAS PUMPS

-Prime mover can be an electric motor or an air motor

-Features a mechanical seal with throttle brush

-ATEX compliant

-Can be used for a variation of solvents, oil and fuel

-3.1 material certification

- API 676 compliance option

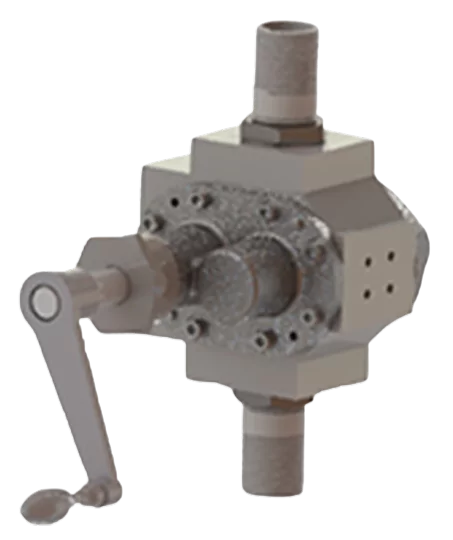

GH - HAND OPERATED PUMPS

Maximum working pressure and flowrate vary and are operator dependent.

Typical settings: Up to 90 L/min and up to two bar.

GJ – DISPENSING PUMPS

Up to 50 °C and options for 100 °C





7 bar

5400

Special Gear Profile

GN - ECONOMY HEAT & VENTILATION PUMPS

80 °C

Up to 10 bar depending on the available power supply



Duplex Pump Set

GO - VEHICLE PUMP

-Lightweight aluminum body

-Reversible flow

-Pulse free flow

-Mechanical seal varieties for solvents and other liquids

-Options for: stainless steel, ni-resist cast iron and all bronze materials



Double helical gears

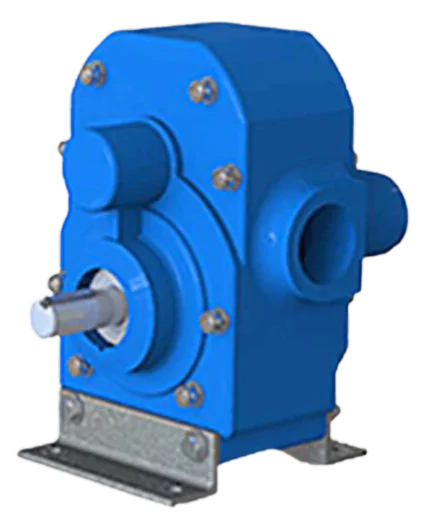

GP - PLASTIC PUMPS

80 °C



Composite construction

-NYRIM housing with reinforced stainless steel

Excellent corrosion and abrasion resistance

-Lightweight with a simple design

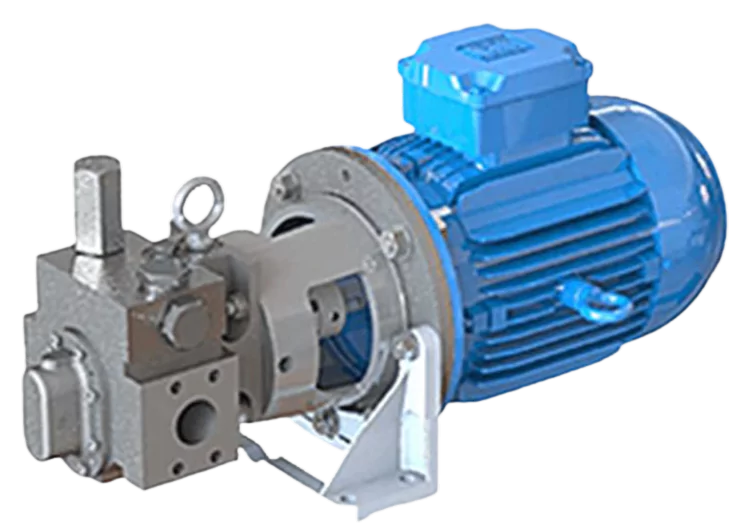

GR – REFRIGERATION PUMPS

180 °C

63 BARg

27000

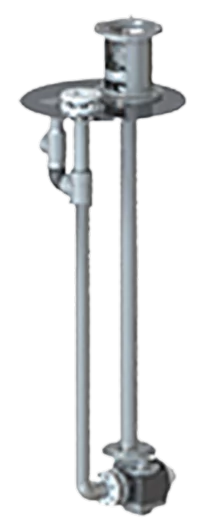

GS VERTICAL PUMPS

200 °C

15 BARg

60000

Option to put 1 or more pumps in one shaft

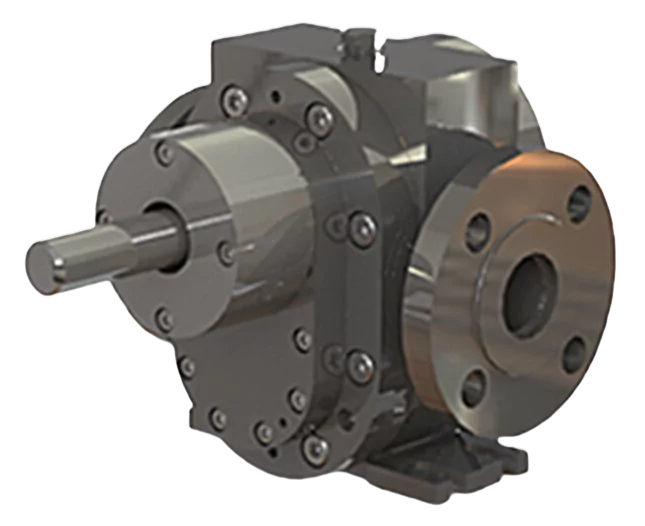

GT EXTREME LIFE PUMPS

220 °C

30 BARg

96000



GV – COMPACT PUMPS

120 °C

15 BARg

13020

Single unit or Duplex pump set

GX – CUSTOM GEAR PUMPS

220 °C

40 BARg

114000



Applications
  • Hot asphalt and molten Sulphur
  • Lubrication & fuel oils
  • High temperature liquids
  • Viscous resins
  • Fire foam compounds
  • Molasses
  • Fluids that cause corrosion
albany ex gear
INDUSTRIAL

Our range of available
External Gear pumps

GENERAL APPLICATION PUMP

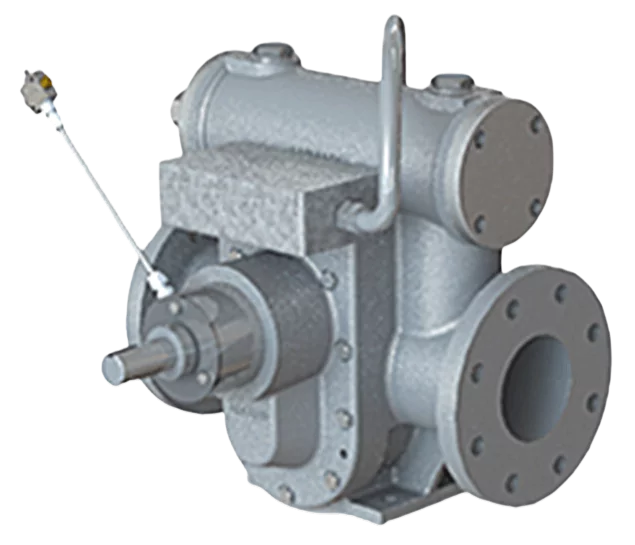

HEATED & UNHEATED PUMP

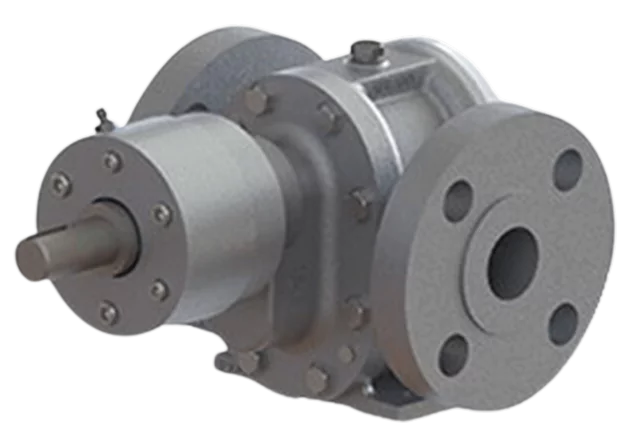

COMPRESSOR/TURBINE PUMP

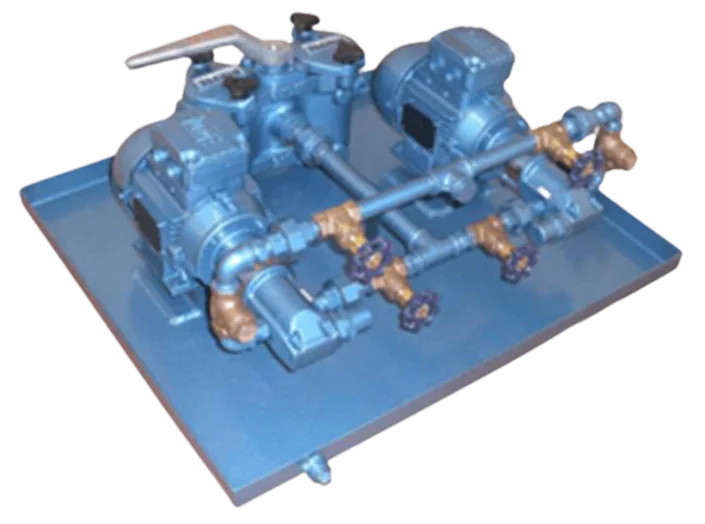

DUPLEX PUMP SET

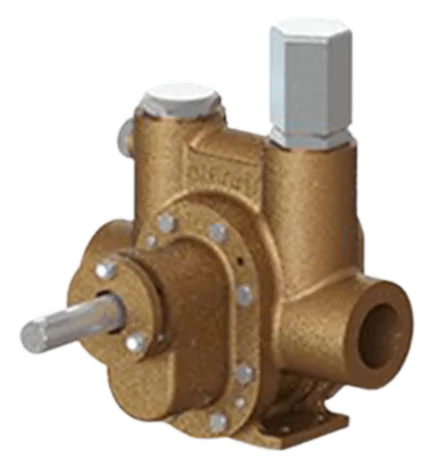

FOAM CONCENTRATE PUMP

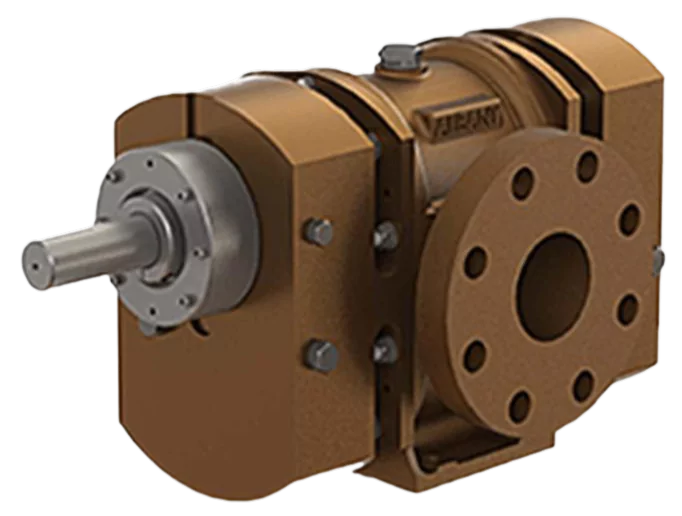

FOAM CONCENTRATE PUMP

FOR LOW VISCOSITIES

OIL & GAS PUMP

HAND OPERATED PUMP

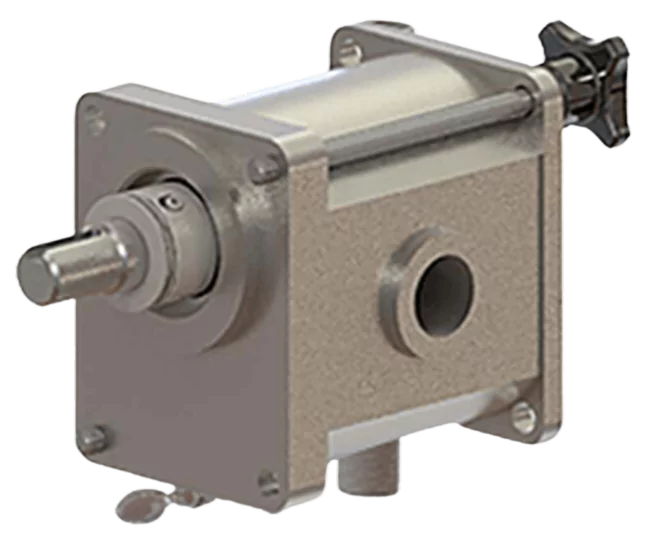

DISPENSING PUMP

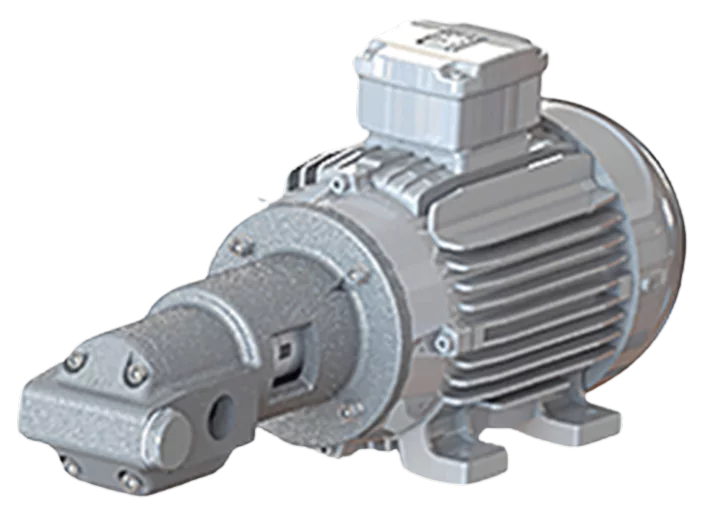

ECONOMY HEAT & VENTILATION PUMP

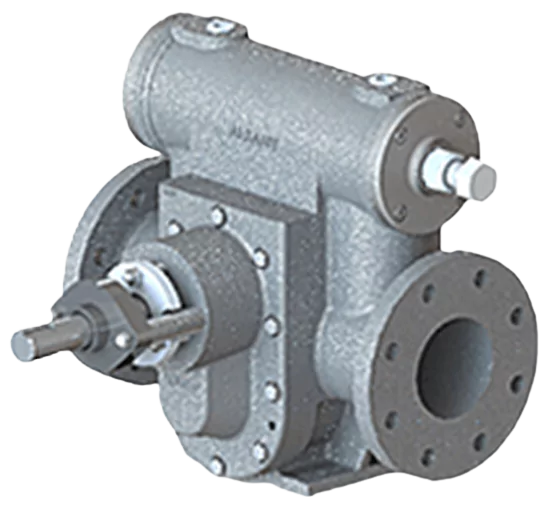

VEHICLE PUMP

PLASTIC PUMP

REFRIGERATION PUMP

VERTICAL PUMP

EXTREME LIFE PUMP

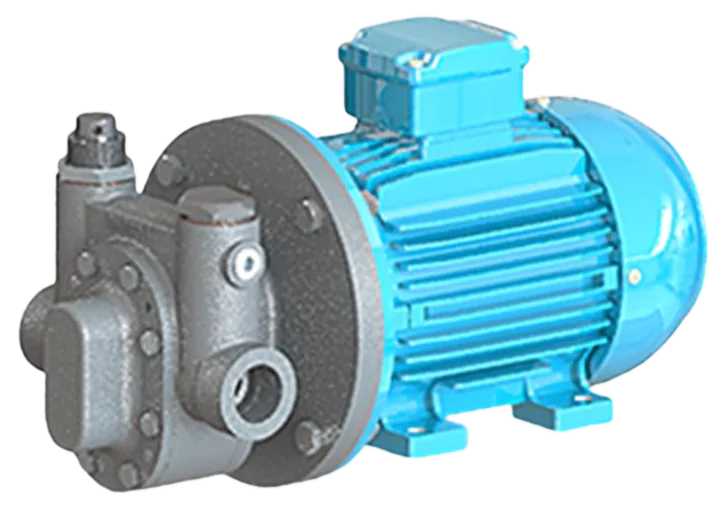

COMPACT PUMP

CUSTOM GEAR PUMP

PUMP

Principle of Operation

External gear pumps use two identical, interlocking gears supported by separate shafts. As these gears come out of mesh on the inlet side of the pump, they create an expanded volume. Liquid then flows into the cavities and is trapped by the gear teeth as the gears continue to rotate against the pump casing. The trapped fluid is then moved from the inlet to the discharge, around the casing. As the teeth of the gears become interlocked on the discharge side of the pump, the volume is reduced and the fluid is forced out under pressure.
