ARBO Magnetically Driven Pumps

The ARBO magnetically driven pumps are known for their high quality, reliability and durability. They are ideal for the transport and circulation of clean chemicals and other corrosive liquids. These pumps do not have a shaft seal – a common wear part in other pump types.

The pumps are fitted with a closed impeller (only the smallest type has an open impeller), offering optimum efficiency.

Features & Benefits

Know more about the features & benefits of using ARBO Magnetically Driven Pumps.

Permanent drive magnet on the drive shaft
Hermetically sealed liquid zone
High efficiency due to fine tolerances
High quality, reliability and durability
Short delivery time
Low energy consumption
Low maintenance costs

Available Options

We customise pumps according to your specific application. Get in touch with us to know your options.

Paint/coating for corrosive fluids
Mounting/baseplate
Spare parts

Key Specifications

Here are the key specifications of ARBO Magnetically Driven Pumps.

Maximum system pressure: 10 bar
Maximum flow rate: 60 m³ / h
Maximum head: 46 m
Maximum ambient temperature: -30 to 40 ° C
Maximum particle size: 50 Micron
Maximum viscosity: 200 mPas

Applications

Here is a list of industrial applications for which ARBO Magnetically Driven Pumps are commonly utilized.

Galvanizing plants
Wastewater treatment
Electroplating companies
Anodizing companies
Fish farms
Seawater aquariums
Desalination plants
Vapor washing installations

arbo-pumps-magnetically-driven-pumps-transp

OUR RANGE OF AVAILABLE ARBO MAGNETICALLY DRIVEN PUMPS

Talk to Experts

Abaque Peristaltic Hose Pump HDX40 model

AM MAGPRO SERIES

Up to flow rates of 130 m³/h
Up to 48 m delivery head

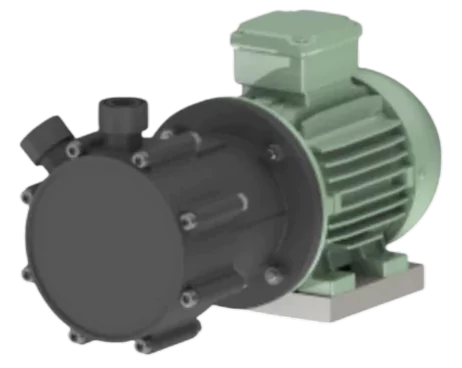

AMT MAGPRO TURBINE SERIES

Up to flow rates of 8,5 m³/h
Up to 46 m delivery head

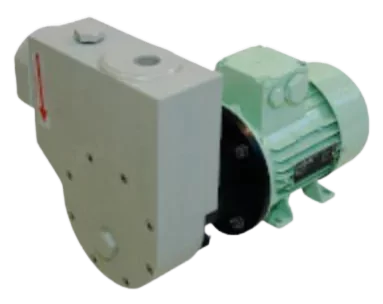

AMT SELF-PRIMING (ZA) SERIES

Up to flow rates of 8,5 m³/h
Up to 33 m delivery head
Up to 5 m suction lift

PRINCIPLE OF OPERATION

Mag-drive pumps or magnetic drive pumps are practically centrifugal pumps driven by a motor through magnetic coupling instead of a mechanical shaft. The pump works via a drive magnet that eliminates any shaft sealing required by the pump. Then the pumping action is the same as the conventional centrifugal pump, where fluid is moved from suction to discharge through centrifugal force.

Mag-drive pumps are sealless pumps, which is a great advantage as this design eliminates the risks of leaks. This makes mag-drive pumps perfect for pumping hazardous fluids that should not leak into the environment and ultra-pure liquids and hard-to-seal products.
