Aro's Air Operated Diaphragm

ARO’s air operated diaphragm pumps come with proven performance in the field, making them one of the highly preferred transfer equipment in many industries. They boast great versatility in ﬂuid handling for numerous applications.

The company has been recognized for years as an industry leader in producing efficient and reliable AOD pumps with variable ﬂow rates and an enormous range of materials and porting. This makes sure that ARO can provide the right pump for unique transfer requirements.

Features & Benefits

Know more about the features & benefits of using Aro's Air Operated Diaphram.

Convoluted diaphragms oﬀering long product life
Sealless Design
Low Material Shear
Can Run Dry Without Damage
Portable and easy to maintain
Self-priming capabilities

Available Options

We customise pumps according to your specific application. Get in touch with us to know your options.

Variety of sizes and materials: metallic and non-metallic
ATEX certification available
Specialty pump models for EXP and PRO Series
Automation for EXP pumps
Spare parts and accessories
Baseplate/mounting

Applications

Here is a list of industrial applications for which Aro's Air Operated Diaphram are commonly utilized.

Food Processing
Cosmetics
Pharmaceutical
Chemical Additives
Adhesives (Food grade)
Paint
Abrasive
Slurries
Waste treatment
Dewatering

Different options for a Peristaltic hose pumps tubing

EXP (EXPERT)

PRO

OUR RANGE OF AVAILABLE ARO AOD PUMPS

Talk to Experts

Abaque Peristaltic Hose Pump HDX40 model

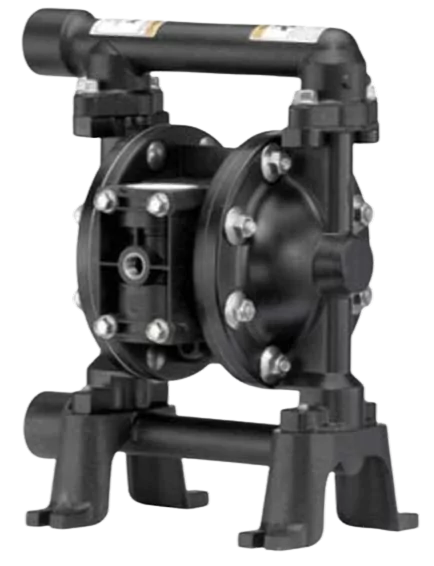

EXP (EXPERT)

1079 lpm | 860 kPa (0.86 MPa)

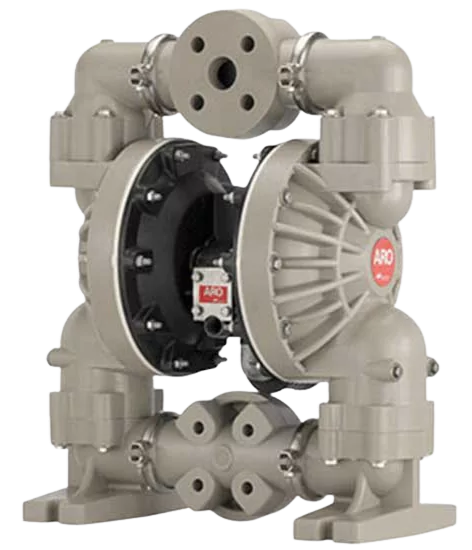

PRO

897 lpm | 830 kPa (0.83 MPa)

PRINCIPLE OF OPERATION

Air-operated double diaphragm pumps are driven by air compressors. Air is supplied through the air port, causing the connecting shaft to move to the left and right, alternately. As the shaft pushes the diaphragm to the left, that diaphragm is placed in its discharge stroke. The check valve seating on the discharge port opens to let the fluid out. Meanwhile, the right diaphragm is placed in its suction stroke. The check valve at the suction port then opens to let the fluid in. As soon as the left diaphragm reaches its maximum discharge stroke, the connecting shaft pushes to the right, now putting the right diaphragm in suction and the left in the discharge position.


    Series
    EXP (Expert)
    PRO

    Max Capacity
    1079 lpm
    897 lpm

    Max DIS Pressure
    860 kPa (0.86 MPa)
    830 kPa (0.83 MPa)

    Max Dry Suction Lift
    6.3 m
    8.3 m

    Max Solid
    9.5 mm
    9.5 mm

    Models
    14 sizes 8 non-metallic 6 metallic
    9 sizes 4 non-metallic 5 metallic

Series	EXP (Expert)	PRO
Max Capacity	1079 lpm	897 lpm
Max DIS Pressure	860 kPa (0.86 MPa)	830 kPa (0.83 MPa)
Max Dry Suction Lift	6.3 m	8.3 m
Max Solid	9.5 mm	9.5 mm
Models	14 sizes 8 non-metallic 6 metallic	9 sizes 4 non-metallic 5 metallic
