Aro’s Peristaltic

Aro’s Peristaltic

ARO’s peristaltic pump offering through the brand Albin is designed and manufactured for diverse industries in order to create better products and production processes. Because only the inside of the hose and hose inserts are in contact with the fluid, aggressive and contaminated fluids can be processed without the damage experienced by other pumping technologies. Peristaltic pump replacement hoses are offered in a wide range of materials: natural rubber (NR), NBR, NBR Food, EPDM, Hypalon, FKM, and NR FDA.

industrial

Know more about Aro
peristaltic Series

Design Advantages
  • Handle fragile fluids with little wear
  • Provide high levels of volumetric accuracy
  • Can pass solids approximately 20% of the hose inner diameter
  • Dry-run capability that allows tank and line stripping
  • Seal-less design that eliminates leaks and contamination
  • Self-priming up to 9.80 meters
Key Specifications

MODELS

ALP

AD

ALX

ALH

Capacity

up to 10000 lph

7800 lph

150000 lph

88000 lph

Viscosity

up to 15,000 cps

up to 3,000 cps

up to 12,000 cps

up to 60,000 cps

Temperature of pumped liquid

up to 135℃

up to 60℃

up to 60℃

up to 85℃

Differential pressure

up to 4 bar

up to 7 bar

up to 7.5 ba

up to 15 bar

Discharge pressure

up to 4 bar

up to 7 bar

up to 7.5 bar

up to 15 bar

Achievable suction

up to 0.6 bar

up to 0.7 bar

up to 0.6 bar

up to 0.9 bar

Applications
  • Effluent processing
  • Mining waste/wake transfer
  • Mud slurry transfer
  • Municipal waste transfer
  • Sea tanker offloading
  • Sand slurry transfer
  • Tailings transfer
  • Thickener underflow feed
  • Fish boat offloading
aro peristaltic
INDUSTRIAL

Our range of available
Peristaltic pumps

ALP

AD

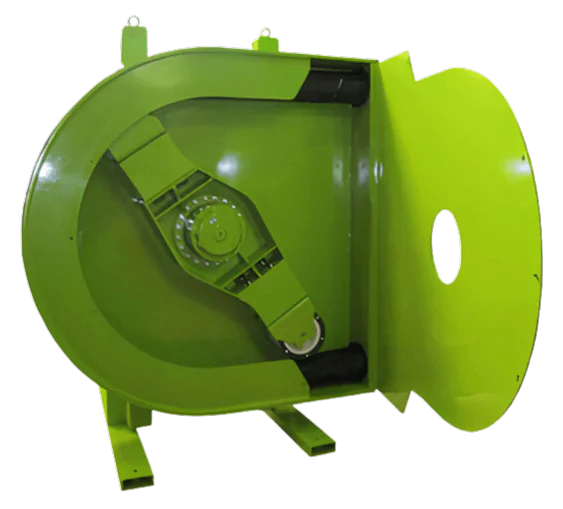

ALX

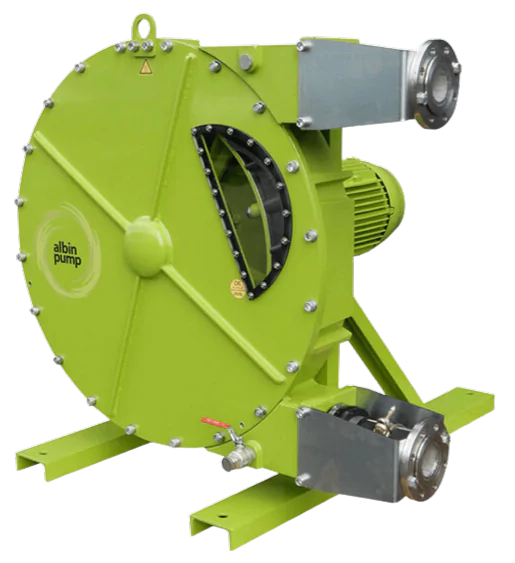

ALH

PUMP

Principle of Operation

Peristaltic pumps operate in the principle of compressing and decompressing fluid. It utilizes “shoes” or rollers that are fixed onto the rotor of the pump, which press the fluid through the pump. After a fixed volume of fluid (which is defined by the distance between the two rollers or shoes) is drawn into the pump tube, it is trapped by the roller or shoes, rotated, and expelled out of the pump when the next roller or shoe passes over the tube. As the rollers start to make another rotation, a new vacuum is formed, causing more fluid to be drawn into the pump.

The complete closure of the tube when it is squeezed between the rollers and the track is what gives the peristaltic pump its positive displacement action.
