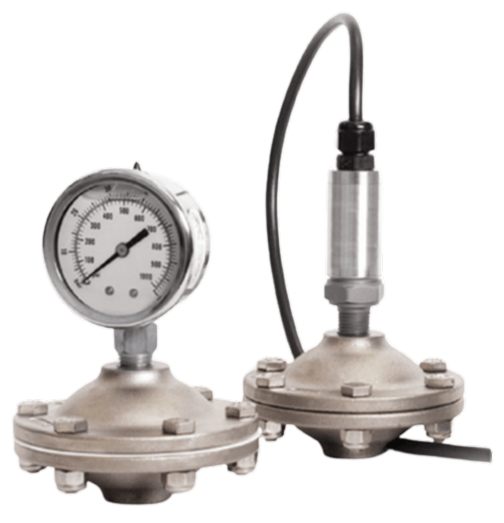

Blacoh Sentry Inlet Stabiliser

Blacoh Sentry™ Inlet Stabilisers are protective devices installed at the inlet of air-operated diaphragm pumps. They are engineered to balance the load on the diaphragm by accumulating fluid during suction and smoothing out pressure spikes. This ensures a consistent flow and pressure as the fluid enters the pump.

By reducing strain on the diaphragm, these stabilisers significantly enhance the pump’s efficiency and extend its diaphragm life.

Features & Benefits

Know more about the features & benefits of using Blacoh's Sentry Inlet Stabiliser.

Helps AODD pumps run more efficiently, minimising energy loss and maximising output
Cushions pressure spikes, reducing stress on the diaphragm and extending its life
Protects system components from excess stress and vibration
Eliminates acceleration head loss and cavitation
Smoothens inlet fluid flow and ensures complete pump chamber fill during suction

Available Options

Get a full list of your options and available accessories for Blacoh Pulsation Dampeners when you get in touch today!

Available in chargeable and automatic air control
Available in plastic and metal construction

Key Specifications

Here are the key specifications of Blacoh's Sentry Inlet Stabiliser.

Sizes: 12.7mm to 76.2 mm
Connection: Flange and FNPT
Capacity: Up to 37.85 li
Body Material: Polypropylene and Stainless Steel
Bladder Material: Buna-N, EPDM, PTFE and Viton
Temperature Range: -51°C to 176.67°F

Applications

For pressure fluctuation and head losses of the following industries:

Food & beverages
Dairy
Oil, fat, sauce and mayonnaise
Brewing and beverages
Bakery and confectionery
Pharmaceutical
Chemical
Water and wastewater treatment
Transportation

Principle of Operation

As the inlet ball valves close in an AODD pump, the fluid flow stops abruptly, causing a pressure spike known as "water hammer." The inlet stabiliser absorbs this pressure spike along with the accompanying surge of liquid. By maintaining consistent suction pressure and flow, the inlet stabiliser helps ensure the pump operates at peak performance.

370IN3 SENTRY™ I

85IN3 SENTRY™ II

10IN3 SENTRY™ III

1155IN3 SENTRY™ IV

2310IN3 SENTRY™ V

NEW! SENTRY™ Automatic Inlet Stabiliser

Inlet sizes: 0.5" (15mm), 0.75" (20mm), 1" (25mm), 1.5" (40mm) Tri-clamp
Inlet types: FNPT, BSP, ANSI Flange, DN Flange, Socket Weld, Tri-Clamp, Union
Pressure ratings: 150 psi (10.3 bar), PVDF 250 psi (17.2 bar), 1000 psi (68.9 bar)
Air controls: Chargeable
Certifications: ATEX, NSF, CRN, PED, ARRA, 3.1 Cert, Material Cert, Cert of Origin, Hydrostatic, Dye Penetrant,
Radiography, PMI, Bolt Tensile, Customer Specified

Inlet sizes: 0.5" (15mm), 0.75" (20mm), 1" (25mm), 1.5" (40mm) Tri-clamp
Inlet types: FNPT, BSP, ANSI Flange, DN Flange, Socket Weld, Tri-Clamp, Union
Pressure ratings: 150 psi (10.3 bar), PVDF 250 psi (17.2 bar), 1000 psi (68.9 bar)
Air controls: Chargeable
Certifications: ATEX, NSF, CRN, PED, ARRA, 3.1 Cert, Material Cert, Cert of Origin, Hydrostatic, Dye Penetrant,
Radiography, PMI, Bolt Tensile, Customer Specified

Inlet sizes: 0.375" (10mm), 0.5" (15mm), 0.75" (20mm) Tri-clamp
Inlet types: FNPT, BSP, ANSI Flange, DN Flange, Socket Weld, Tri-Clamp, Union
Pressure ratings: 150 psi (10.3 bar), PVDF 200 psi (13.7 bar), 1000 psi (68.9 bar)
Air controls: Chargeable
Certifications & testing: ATEX, NSF, CRN, PED, ARRA, 3.1 Cert, Material Cert, Cert of Origin, Hydrostatic, Dye
Penetrant, Radiography, PMI, Bolt Tensile, Customer Specified

Inlet sizes: 3" (80mm), 4" (100mm), 6" (150mm)
Inlet types: FNPT, ANSI Flange, DN Flange, Tri-Clamp
Pressure ratings: 150 psi (10.3 bar), 275 psi (18.9 bar)
Air controls: Chargeable
Certifications: ATEX, PED, ARRA, 3.1 Cert, Material Cert, Cert of Origin, Hydrostatic, Dye Penetrant, PMI, Bolt Tensile,
Customer Specified

Inlet sizes: 3" (80mm), 4" (100mm), 6" (150mm)
Inlet types: FNPT, ANSI Flange, DN Flange
Pressure ratings: 275 psi (18.9 bar)
Air controls: Chargeable
Certifications: ATEX, PED, ARRA, 3.1 Cert, Material Cert, Cert of Origin, Hydrostatic, Dye Penetrant, PMI, Bolt Tensile,
Customer Specified

Inlet sizes:1.5", 2"
Inlet types: FNPT, BSP, ANSI Flange, Tri-Clamp
Pressure ratings: 150 psi (10.3 bar)
Air controls: Automatic
Certifications & testing: 3.1 Cert, Material Cert, Cert of Origin, Hydrostatic, Dye Penetrant, Radiography, PMI, Bolt
Tensile, Customer Specified
