Mono

Mono is a brand under the globally acclaimed engineering company and manufacturer National Oilwell Varco (NOV). For over 80 years, Mono has been spearheading the market for progressing cavity pumps. They have a strong presence in 7 countries on 4 continents and many industries rely on Mono for their reliable, cost-effective, and resilient PC pumps.

Mono also invented the EZstrip™ Maintain-In-Place products to provide industry owners with convenient maintenance and cleaning solutions.

Features & Benefits

Know more about the features & benefits of using Mono.

Robust and proven design for hygienic and industrial applications
Reduced cost of ownership over the pump’s life
Variable speed control for efficient, slow pumping
Process control for accurate dosing
Detachable titanium Flexishaft® for easy disassembly
Excellent solid and shear sensitive product handling

Available Options

We customise pumps according to your specific application. Get in touch with us to know your options.

ATEX compliant pumps upon request
Range of stator and rotor materials
Complete system or fit on trolley
Spare parts
Baseplate

Key Specifications

Here are the key specifications of Mono.

Flows up to 1937 GPM
Pressure up to 1050 psi

Applications

Here is a list of industrial applications for which Mono are commonly utilized.

Industry

Water and wastewater
Paper and pulp
Chemical and pharmaceutical
Food and beverage
Mining and mineral processing
Solar and agricultural
Oil and gas

Media

Slurries
Viscous
Shear sensitive
Two or tri-phase mixtures

Compact C Range

Dosing Pump

Epsilon Range

Epsilon Vertical Pump

EZSTRIP™ Mine Dewatering

Widethroath W Range

EZSTRIP™ Transfer Pump

EZSTRIP™ Cake Pump

OUR RANGE OF AVAILABLE MONO PUMPS

Talk to Experts

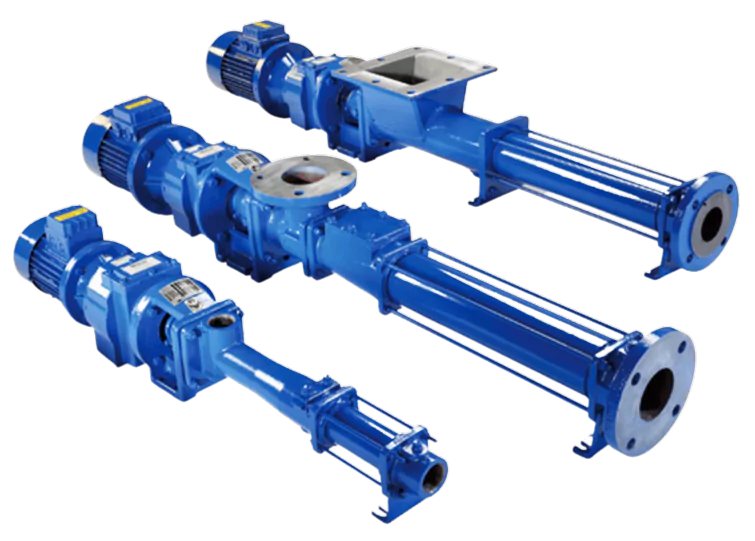

Compact C Range

UP TO 439.9 M3/H
UP TO 24.1 BAR

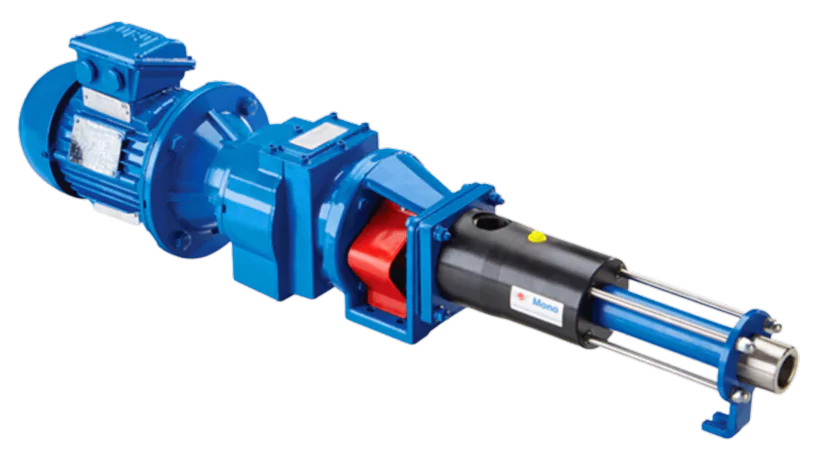

Dosing Pump

UP TO 1.25 M3/H
UP TO 72 BAR

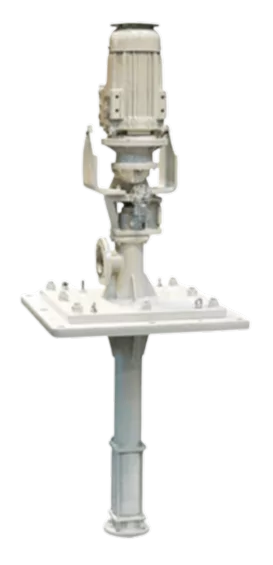

Epsilon Range

UP TO 420 M3/H
UP TO 72.4 BAR

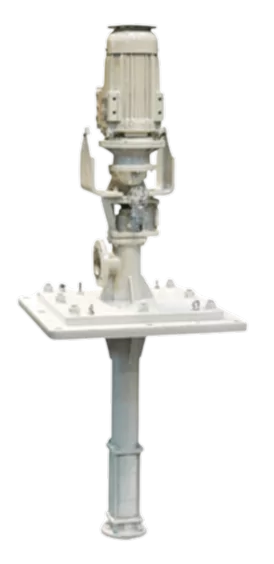

Epsilon Vertical Pump

UP TO 51.10 M3/H
UP TO 9 BAR

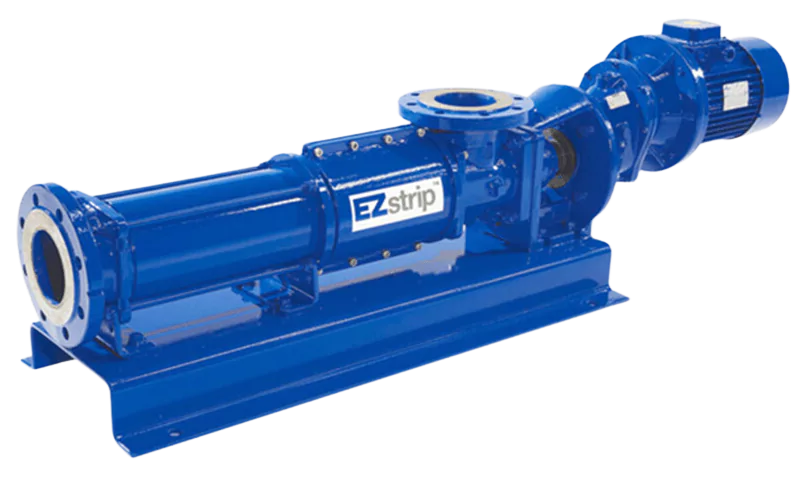

EZSTRIP™ Mine Dewatering

UP TO 72 M3/H
UP TO 36 BAR

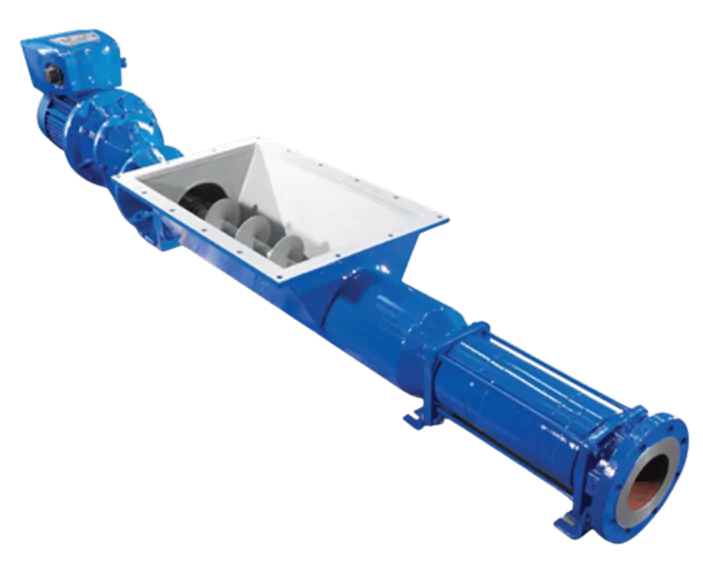

Widethroath W Range

UP TO 214.9 M3/H
UP TO 48.3 BAR

EZSTRIP™ Transfer Pump

UP TO 224.9 M3/H
UP TO 12.1 BAR

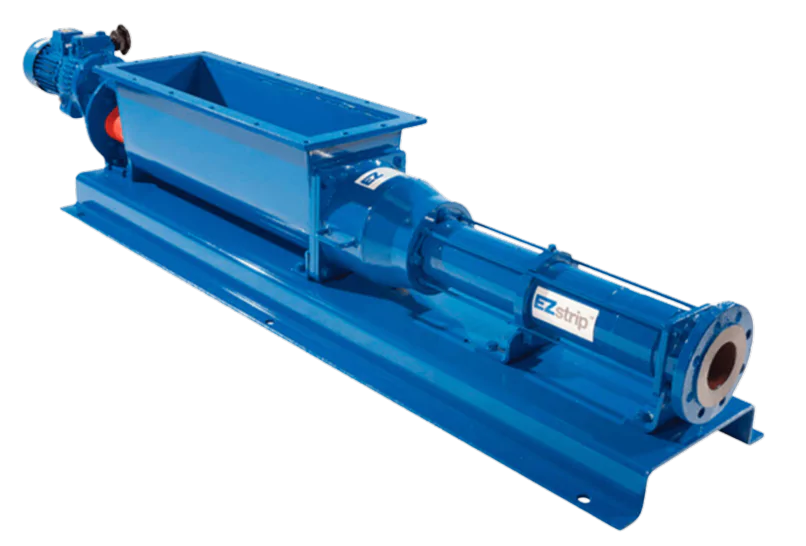

EZSTRIP™ Cake Pump

UP TO 41.9 M3/H
UP TO 24.1 BAR

PRINCIPLE OF OPERATION

Progressive cavity pumps are positive displacement types and are capable of pumping at extremely low flow rates and high pressure. The rotor is the component that moves the fluid from the inlet to the discharge. It takes the form of a corkscrew that rotates inside a hole or threaded stator.

The rotor helix is shaped off-set to the stator creating cavity spaces in the assembly which are formed by temporary seals as the rotor contacts the surface of the stator. As the rotor begins to move in an eccentric fashion, the cavities form, draw in product and are ‘progressed’ along the assembly and the product is expelled through the discharge port.
