PowerFlo

The Powerflo air operated diaphragm pumps are known for their robust construction, high efficiency, and more affordable price tag than competitor brands.
The Powerflo air operated diaphragm pumps are known for their robust construction, high efficiency, and more affordable price tag than competitor brands. These AODD pumps are truly versatile, being engineered using different materials and come in many sizes. This means that they have a pump for all kinds of fluids. They are wear-resistant, submersible, capable of dry-running, continuously adjustable, resistant to dry running and freezing, and have a gentle displacement action for shear-sensitive products. And by utilising flap valves instead of ball valves, Powerflo AODD pumps can handle larger solids, making them the ideal equipment to use in the food and beverage, mining, and wastewater treatment industries.
Talk to our experts
The Powerflo air operated diaphragm pumps are known for their robust construction, high efficiency, and more affordable price tag than competitor brands.

KNOW MORE ABOUT
POWERFLO PUMPS

Abaque Peristaltic Pump HD25 model

Features & Benefits

  • Modular lube-free air valve for higher efficiencies
  • Unique top inlet and bottom discharge orientation
  • Easy and quick air valve replacement
  • Lower air consumption and noise levels
  • Largest chemical compatibilities
  • Beaded gasket allows better containment and faster installation

Available Options

  • Roll frame
  • Spare parts
  • Accessories
  • Mounting/baseplate
  • Aluminum and Polypropylene models available

Key Specifications

Note: for both Aluminum and Polypropylene : Same specifications
2 models same specs

MATERIALS

  • Diaphragm: Hytrel
  • Flap valve: Nitrile
  • Seals: Nitrile

PERFORMANCE

  • Suction lift: 7.62 m
  • Solid passage: 47 mm

Applications

WASTEWATER

  • Thickened
  • Clarified
  • Digested sludge
  • Waste and grit

MINING

  • Water evacuation
  • Lagoon sludges
  • Belt head cleanup dewatering
  • Mine face dewatering
  • Drift dewatering
  • Muck/slime/slurry

OIL AND GAS

  • Compression skid
  • Lube oil transfer
  • Glycol transfer
  • Sump
  • Flare knockout
  • Tank bottom recirculation

CHEMICAL

  • Corrosive chemcials
  • Toxic chemicals

OUR RANGE OF AVAILABLE POWERFLO PUMPS

Abaque Peristaltic Hose Pump HD100 model

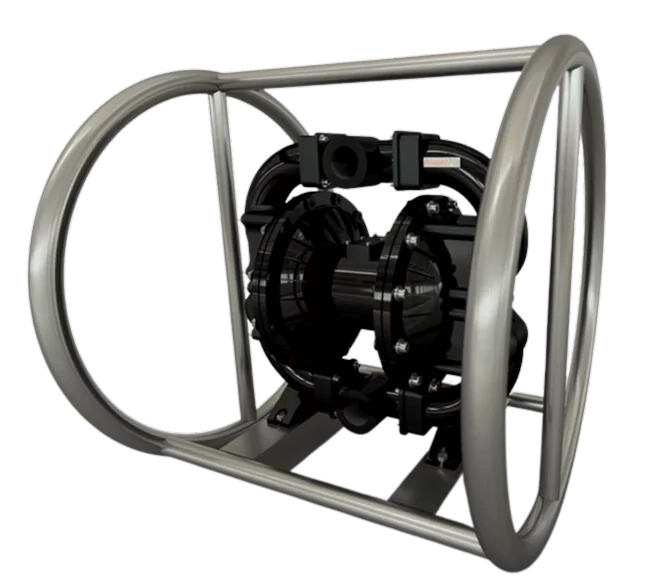

ALUMINUM PUMP

Air Inlet: 13mm | Fluid Inlet/Outlet: 51mm
Abaque Peristaltic Hose Pump HD 10 or HD20 model

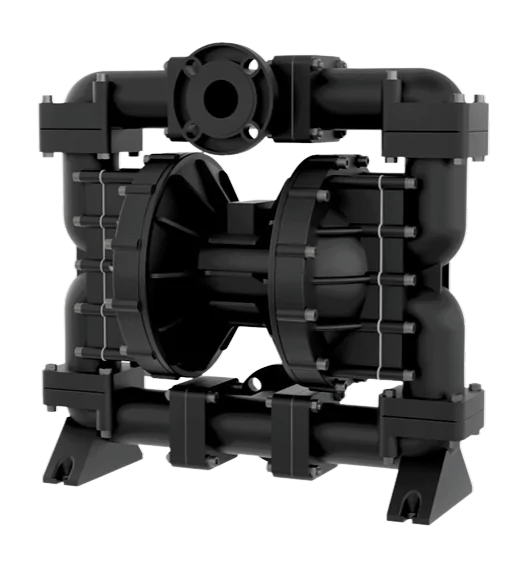

POLYPROPYLENE PUMP

Air Inlet: 13mm | Fluid Inlet/Outlet: 51mm

BROCHURES & MANUALS

PF50 Air-Operated Diaphragm

PF50 Air-Operated Diaphragm

PRINCIPLE OF OPERATION

Powerflo AODD pumps are powered by compressed air. This compressed air is supplied to the pump through a common air vent. The air pressure pushes the shaft to the right or to the left to create suction and discharge strokes. At suction, the diaphragm is pulled by the shaft to the center. This causes the check valve at the suction port on the suction chamber to lift to let the fluid in. Simultaneously, the opposite diaphragm is placed in its discharge stroke. The check valve at the discharge port is lifted to let the fluid out. This cycle repeats as the shaft transitions the air pressure from the first diaphragm at suction to the opposite diaphragm.
