Sandpiper Air Operated Diaphragm Pump

Sandpiper is a brand by Warren Rupp. It was introduced in 1968 and has since established a reputation as the pioneer and global leader in designing and manufacturing the original air-operated double-diaphragm (AODD) pumps. The Sandpiper S20 pump (non-metallic AODD) and Sandpiper S30 pump (metallic AODD) are among the brand’s most in-demand products. These models are recognized as top-quality acid pumps and fuel transfer pumps.

This award-winning brand also boasts its Signature Series of AODD pumps including Standard Duty, Containment Duty, Heavy Duty Ball and Heavy-Duty Flap Valve pumps, Special Duty and Natural Gas Pumps.

Sandpiper Product Catalogue

HDB Series Heavy Duty Ball Valve Data Sheet

HDF Series Heavy Duty Flap Valve Data Sheet

S30 Non-Metallic Standard Duty Data Sheet

Features & Benefits

Know more about the features & benefits of using Sandpiper Air Operated Diaphragm Pumps.

Dry-run capable without damaging the pump
Effectively pumps solids without problems
Self-priming and submersible
Deadheads safely without damaging the product
Sealless design means lower maintenance costs
Variable flow and head pressures without controls

Available Options

We customise pumps according to your specific application. Get in touch with us to know your options.

Material and valve variations
Intellirupp device
Air filter/regulators
Liquid level controllers
Leak detector
Mounting options
Spare parts and repair kits

Key Specifications

Here are the key specifications of Sandpiper Air Operated Diaphragm Pumps.

FLOWS UP TO 63.6 m3/h or 1,060 Liters/minute
MAX SOLIDS UP TO 18 mm

Applications

Liquids, viscous fluids, and media with smaller solid particles in:

Ceramics
Chemical
Construction
Food and Beverage
General Manufacturing
Marine
Mining
Oil and Gas
Paints and Coatings
Pharmaceutical
Wastewater Treatment

Different options for a Peristaltic hose pumps tubing

Heavy Duty Flap Valve

Heavy Duty Ball Valve

Containment Duty Ball Valve

Standard Duty Ball Valve Metallic

Standard Duty Ball Valve Non-Metallic

OUR RANGE OF AVAILABLE SANDPIPER DIAPHRAGM PUMPS

Talk to Experts

Abaque Peristaltic Hose Pump HDX40 model

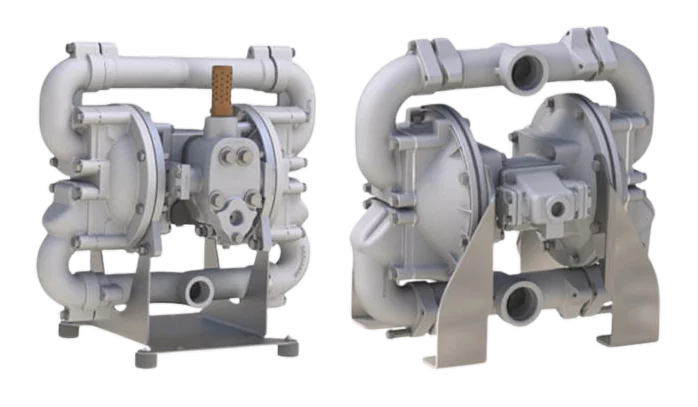

Heavy Duty Flap Valve

FLOW UP TO 70.41 M3/H

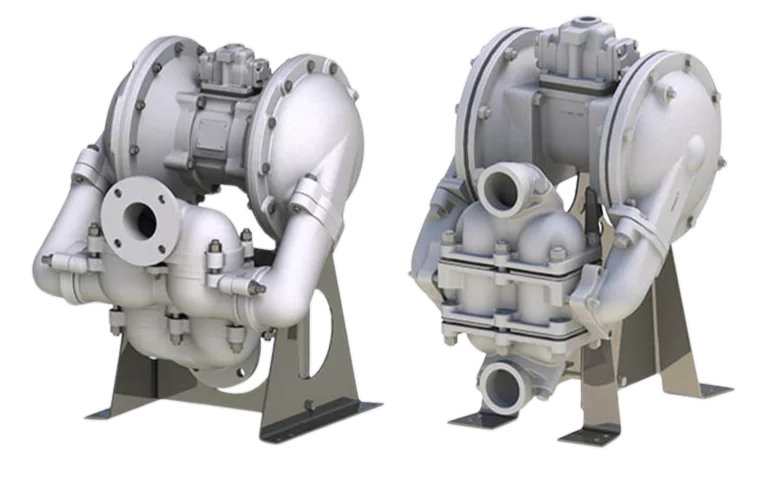

Heavy Duty Ball Valve

FLOW UP TO 68.14 M3/H

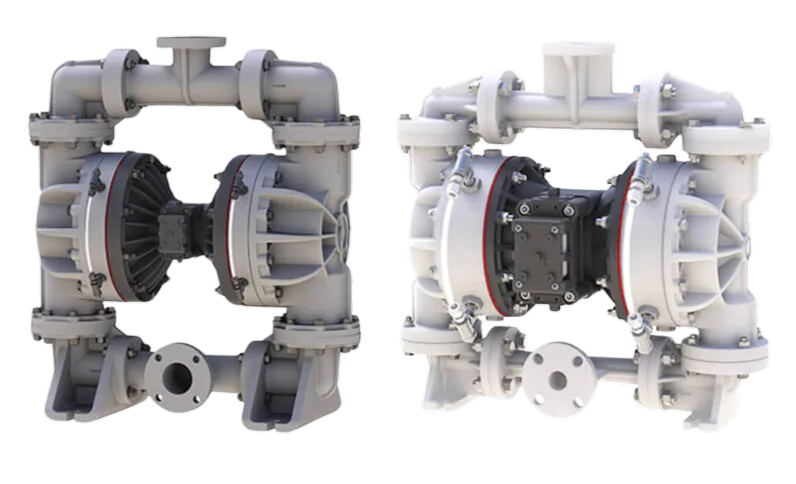

Containment Duty Ball Valve

FLOW UP TO 59.1 M3/H

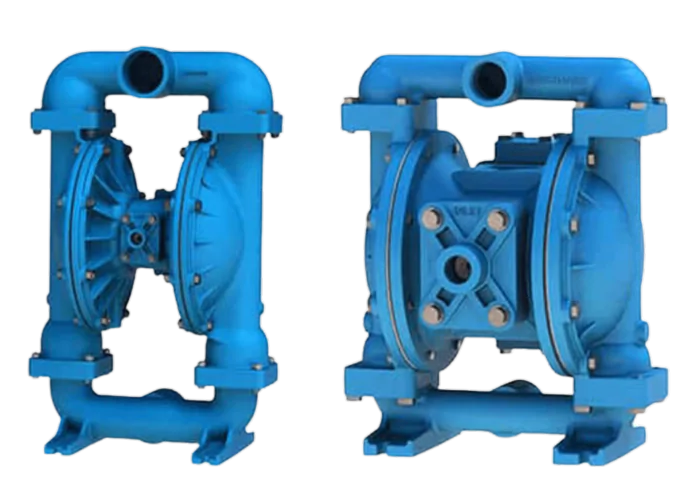

Standard Duty Ball Valve Metallic

FLOW UP TO 64.73 M3/H

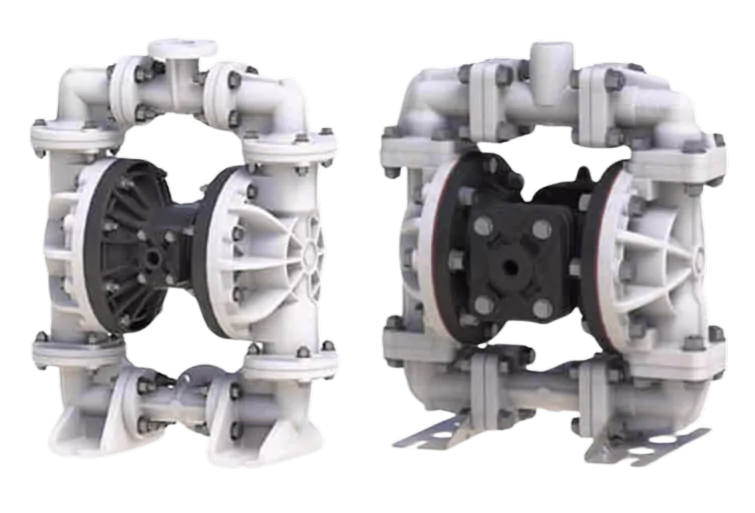

Standard Duty Ball Valve Non-Metallic

FLOW UP TO 63.6 M3/H

PRINCIPLE OF OPERATION

Industrial Pneumatic Diaphragm Pump

Sandpiper AODD pumps use compressed air to initialise pumping. They use flexible diaphragms that are positioned in opposite chambers. Both chambers have common inlet and outlet ports. A shaft in between the diaphragms acts as their driving mechanism. Finally, valves or balls are placed at the openings of the chamber, acting as gates on the suction and discharge sides.

First, compressed air enters the pump and pushes the link shaft to the right and the left. This allows the diaphragms to move simultaneously where one is in its discharge stroke while the other is in its suction stroke.
