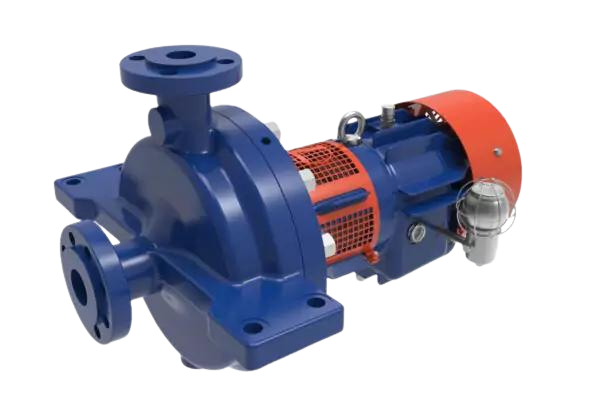

Gabbioneta R OH2 TYPE API 610 Centrifugal Pumps

Trillium Flow Technologies
The all-around Gabbioneta R range process pumps provide superior efficiency for more than 100 different hydraulic configurations suitable for a wide operating range. These overhung, radially split, centerline-supported, heavy duty process pumps are designed in a back pull-out configuration for easy maintenance and centerline feet mounting for high temperature stability. Several options are available for the R OH2 pumps to fulfill requirements of different applications, such as coke crusher, steam jackets, casing insulations, semi-open impellers in case of high viscosity liquids or presence of solids, and inducers in case of low NPSH.

KNOW MORE ABOUT Gabbioneta R OH2 TYPE API 610 Centrifugal Pumps

GABBIONETA R OH2 BROCHURE
Download Brochure

Design Features

  • Fully API 610 compliant
  • Integral case connections to avoid non-destructive testing
  • Heavy-duty shaft to minimise rotor defection and maximise uptime
  • API 682 compliant seal chamber
  • Single impeller with optimised hydraulics to minimise NPSH requirements
  • Heavy-duty case suitable for 2x API nozzle loads
  • Back pull-out design for simple maintenance and to allow quick hydraulic re-rates
  • Double volute to minimise radial thrust on most sizes (over 2” discharge)

Available Options

  • All API material options: S-4, S-5, S-6, S-8, C-6, A-8, D-1, D-2
  • High-temperature alignment options
  • Bearing arrangements to accommodate oil mist, purge mist and various cooling configurations.
  • Magnetic coupling options are also available
  • Specialist options: inducer, high-temperature alignment
  • Spare parts
  • Custom mounting/baseplate

Key Specifications

  • Capacity: up to 4,000 mÂł/hr
  • Head: up to 400 m
  • Temperature: up to 427°C
  • Speed of rotation: up to 4,000 RPM

Applications

  • High-temperature refining
  • Hydrocarbon transfer
  • Petrochemical plants
  • Booster applications
