Hibar style pumps
Hibar style pumps – which include but are not limited to the previous and existing Hibar style pumps, newly configured pumps, and complete filling systems – are manufactured by Hife Systems Ltd.. Hife provides complete design, engineering and manufacturing of specialised dispensing piston pumps used by battery manufacturers worldwide. Their dispensing pumps have a robust construction and are designed for spill-less and accurate filling of batteries with electrolytes. Recently, Hife has expanded into other industries, such as cosmetics, food, detergents, and pharmaceutical. The company also continues to provide Hibar replacement parts.
Talk to our experts

KNOW MORE ABOUT HIFE SYSTEMS PUMPS

Hife systems dispensing pump ceramic 3 way valve assembly

Features & Benefits

  • High accuracy dispensing of ±0.5% or better for small volumes of liquids
  • 316L stainless steel construction and other material options
  • Pneumatic and servomotor drive systems available
  • Pump size is easily changed by replacing the pump head and plunger
  • Servomotor models can be maintained and controlled remotely
  • Available in check and rotary valves for handling low to high-viscosity fluids
  • Wide range of wetted part materials to handle different kinds of fluids
  • Precise dispensing volume adjustment and speed control

Available Options

We customise pumps according to your specific application. Contact us today to get a complete list of your options.

  • Drive system options
  • Material options
  • Nozzle options
  • Fittings
  • Mounting
  • Spare parts

Key Specifications

  • FLOWS UP TO 36000 LPH
  • PRESSURES 1.6 MPa
  • SUCTION LIFT UP TO 9.5 metres
  • VISCOSITIES 352,000 SSU

Applications

  • Battery filling
  • Dispensing various types of fluids in:
  • Food manufacturing
  • Beverage
  • Chemical
  • Pharmaceutical
  • Cosmetics
  • Homecare
  • Medical

OUR RANGE OF AVAILABLE HIFE SYSTEMS PUMPS

Dispensing Pumps & Nozzles

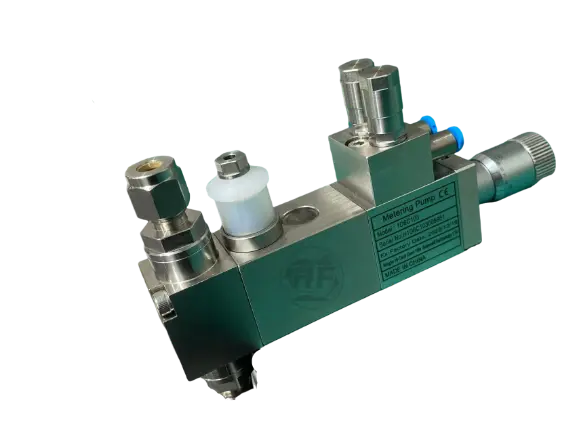

HIFE MD SERIES DISPENSING PUMP

The Hife MD Series Check Valve Dispensing Pumps are designed for injecting low to medium viscosity fluids under 20,000 cps. They are designed to pump small volumes of fluids without particles in the technical, food, cosmetic and pharmaceutical industries.

Features

  • Configurable inlet and outlet fittings
  • Wet cup seal maximises seal life and allows easy and inexpensive replacement
  • High accuracy dispensing of ±0.5% or better

Key Specifications

  • Available in 6 pump models/sizes
  • Maximum dispensing volume: Up to 0.45 ml
  • Maximum viscosity: < 20,000 cps
  • Stroke length: Up to 6.4 mm
  • Pneumatic drive only
  • Check valve only

HIFE B SERIES DISPENSING PUMP

The Hife B dispensing pumps are available in check valve (CV) and rotary valve (RV) configurations. The CV models are suitable for dispensing fluids without particles in low to medium-viscosity applications not exceeding 20,000 cps (without particles). The RV models, however, are ideal for medium to high-viscosity duties over 20,000 cps and can dispense fluids with or without particles. Hife B series pumps can be pneumatically or servo motor-driven.

Features

  • Configurable inlet and outlet fittings
  • Wet cup seal maximises seal life and allows easy and inexpensive replacement
  • High accuracy dispensing of ±0.5% or better
  • RV models come with high-speed rotary actuators and precision ceramic rotary valves

Key Specifications

  • 58 pump models available
  • Maximum dispensing volume: Up to 40 ml
  • Maximum viscosity: < 20,000 cps (CV) or > 20,000 cps (RV)
  • Stroke length: Up to 50.8 mm
  • Pneumatic and Servo drive
  • Check valve and Rotary valve

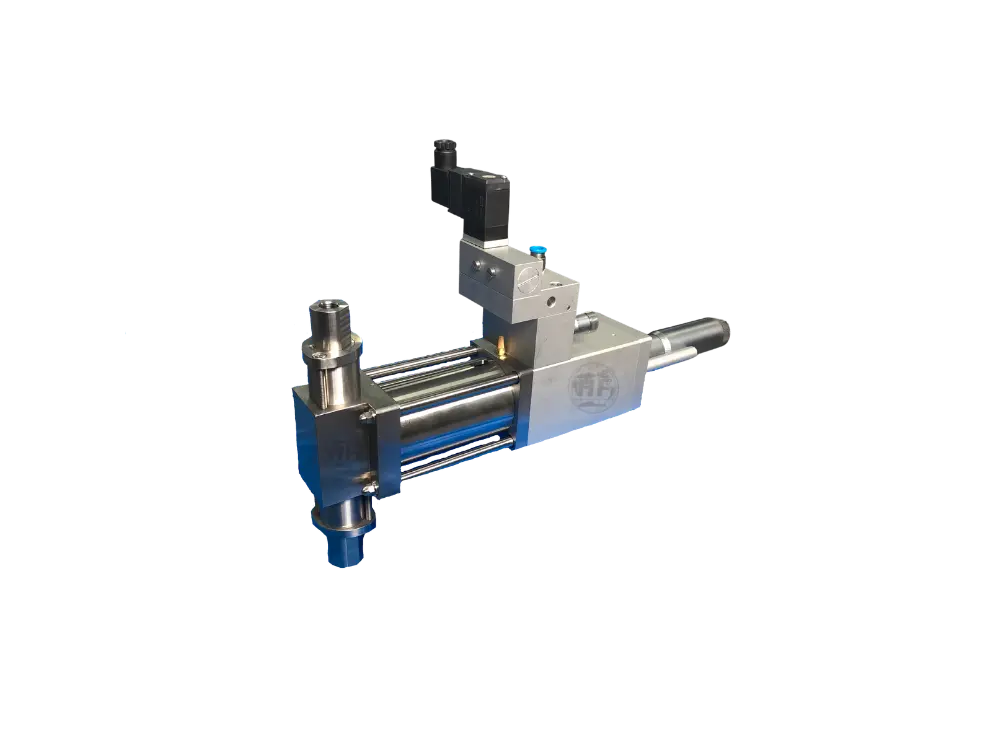

HIFE 4H SERIES DISPENSING PUMP

Hife 4H dispensing pumps are available in rotary or check valve configurations and are either pneumatic or servo motor powered. The 4H pumps are suitable for slightly larger volumes, pumping up to 250 ml of fluid. CV models are used for fluids without particles with viscosities less than 20,000 cps. Meanwhile, the RV models are designed for metered dispensing of medium to high viscosities up to over 20,000 cps.

Features

  • Configurable inlet and outlet fittings
  • High accuracy dispensing of ±0.5% or better
  • Pneumatic-driven pumps offer smooth speed control and precise volumetric control
  • Pneumatic models with internal full-stroke sensor
  • Servo-driven pumps with programmable servo speed profiling

Key Specifications

  • 44 pump models available
  • Maximum dispensing volume: Up to 250 ml
  • Maximum viscosity: < 20,000 cps (CV) or > 20,000 cps (RV)
  • Stroke length: Up to 50.8 mm
  • Pneumatic and Servo drive
  • Check valve and Rotary valve

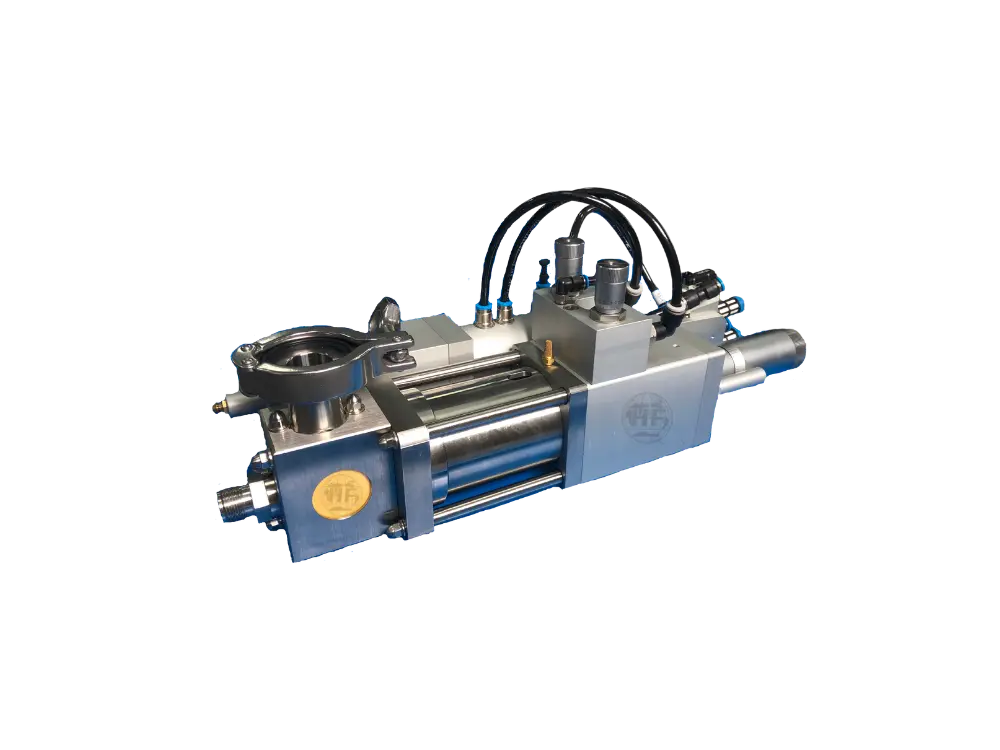

HIFE FC SERIES DISPENSING PUMP

Hife FC dispensing pumps are easy to disassemble and clean. The FC Series is offered in Check Valve (CV) for fluids with viscosities less than 20,000 cps with no particulates and in Rotary Valve (RV) models for fluids with particulates and viscosities over 20,000 cps.

Features

  • Configurable inlet and outlet fittings
  • High accuracy dispensing of ±0.5% or better
  • Offers smooth speed control and precise volumetric control

Key Specifications

  • 24 pump models available
  • Maximum dispensing volume: Up to 40 ml
  • Maximum viscosity: < 20,000 cps (CV) or > 20,000 cps (RV)
  • Stroke length: Up to 50.8 mm
  • Pneumatic and Servo drive
  • Check valve and Rotary valve

HIFE 4H SERIES DISPENSING PUMP

Hife 4H dispensing pumps are available in rotary or check valve configurations and are either pneumatic or servo motor powered. The 4H pumps are suitable for slightly larger volumes, pumping up to 250 ml of fluid. CV models are used for fluids without particles with viscosities less than 20,000 cps. Meanwhile, the RV models are designed for metered dispensing of medium to high viscosities up to over 20,000 cps.

Features

  • Configurable inlet and outlet fittings
  • High accuracy dispensing of ±0.5% or better
  • Pneumatic-driven pumps offer smooth speed control and precise volumetric control
  • Pneumatic models with internal full-stroke sensor
  • Servo-driven pumps with programmable servo speed profiling

Key Specifications

  • 44 pump models available
  • Maximum dispensing volume: Up to 250 ml
  • Maximum viscosity: < 20,000 cps (CV) or > 20,000 cps (RV)
  • Stroke length: Up to 50.8 mm
  • Pneumatic and Servo drive
  • Check valve and Rotary valve

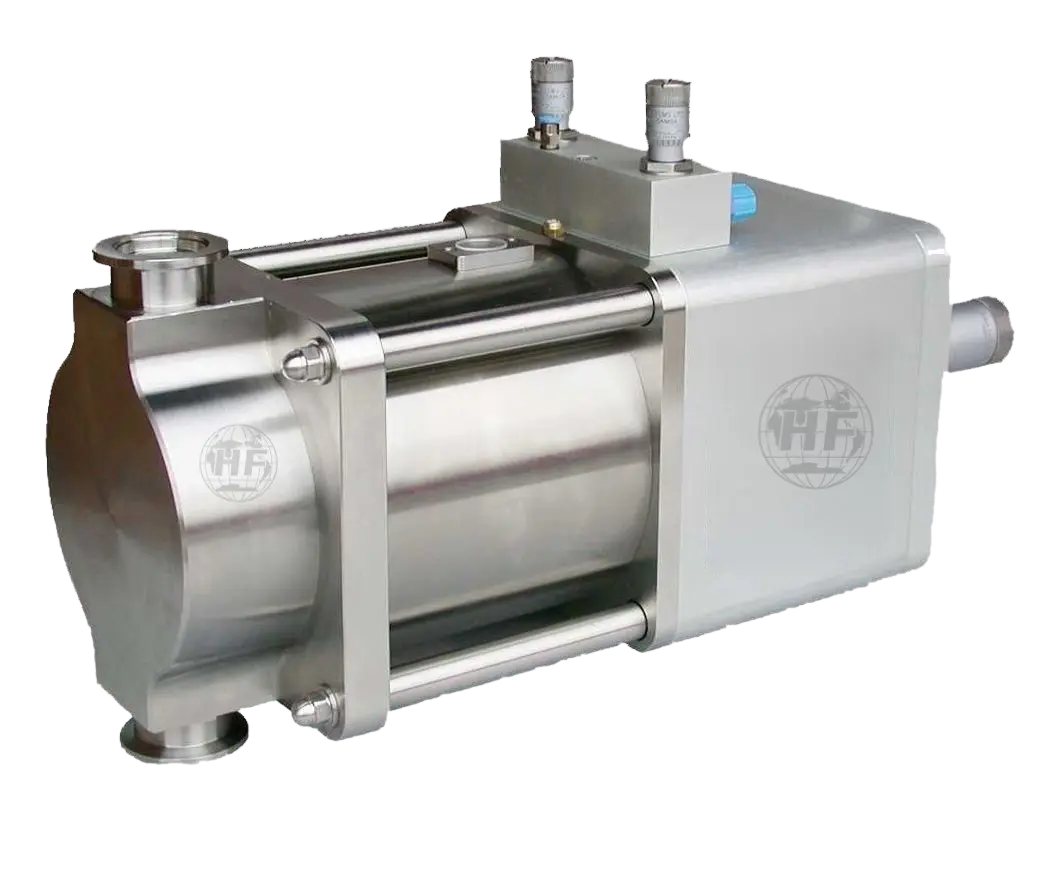

HIFE 5H SERIES DISPENSING PUMP

Hife 5H Series pumps are specifically designed for large-volume dispensing, metering from 100-2000 ml of fluid. Available in check valve (CV) and rotary valve (RV) configurations, 5H pumps can handle low to high viscosities, ranging from 1 to over 20,000 cps.

Features

  • Configurable inlet and outlet fittings
  • High accuracy dispensing of ±0.5% or better
  • Pneumatic-driven pumps offer smooth speed control and precise volumetric control
  • Pneumatic models with internal full-stroke sensor
  • Servo-driven pumps with programmable servo speed profiling

Key Specifications

  • 44 pump models available
  • Maximum dispensing volume: Up to 250 ml
  • Maximum viscosity: < 20,000 cps (CV) or > 20,000 cps (RV)
  • Stroke length: Up to 50.8 mm
  • Pneumatic and Servo drive
  • Check valve and Rotary valve

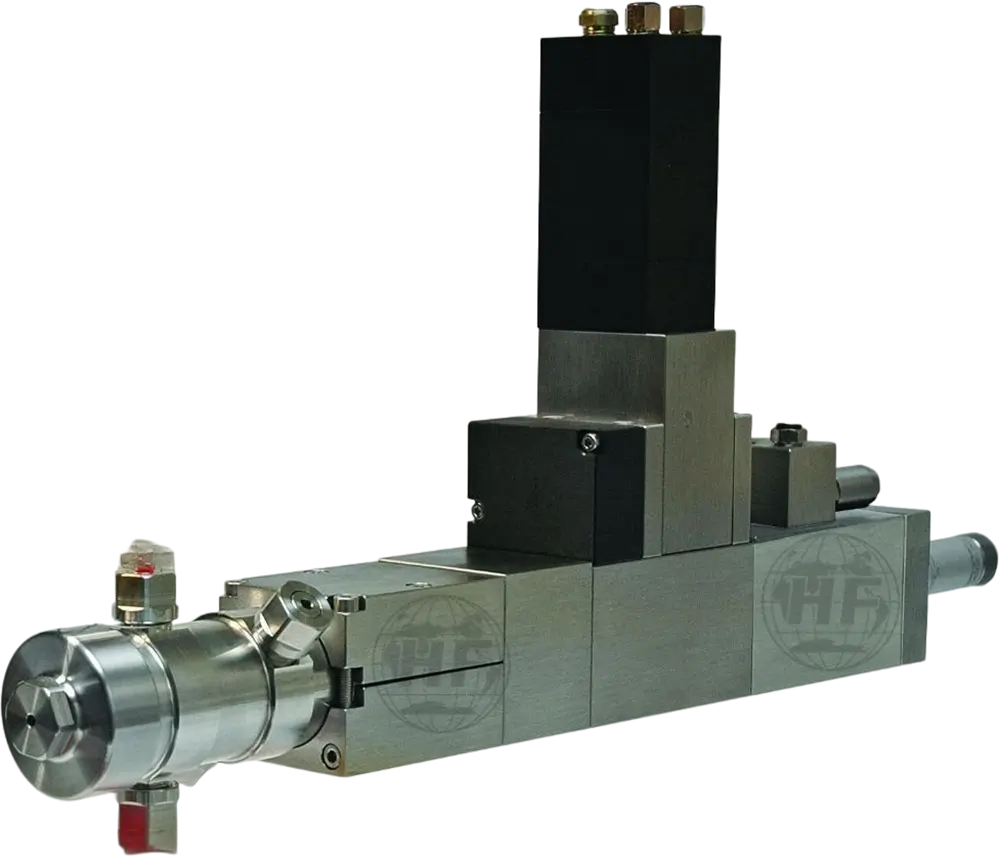

HIFE RP SERIES DISPENSING PUMP

The Hife ‘RP’ Series Sealless Precision Metering Pumps are specifically designed to meet the stringent requirements of the pharmaceutical industry. The pumps feature close-fitting sealless ceramic pistons and cylinders engineered for pharmaceutical liquid dispensing applications. RP pumps are also designed to pump low to high-viscosity fluids up to 100,000 cps.

Features

  • Easy to clean and maintain without the dynamic seals
  • Configurable inlet and outlet fittings
  • High accuracy dispensing of ±0.5% or better
  • Pneumatic-driven pumps offer smooth speed control and precise volumetric control

Key Specifications

  • 12 pump models available
  • Maximum dispensing volume: Up to 40 ml
  • Maximum viscosity: > 20,000 cps
  • Stroke length: Up to 50.8 mm
  • Pneumatic and Servo drive
  • Rotary valve only

HIFE RP SERIES DISPENSING PUMP

The Hife ‘RP’ Series Sealless Precision Metering Pumps are specifically designed to meet the stringent requirements of the pharmaceutical industry. The pumps feature close-fitting sealless ceramic pistons and cylinders engineered for pharmaceutical liquid dispensing applications. RP pumps are also designed to pump low to high-viscosity fluids up to 100,000 cps.

Features

  • Easy to clean and maintain without the dynamic seals
  • Configurable inlet and outlet fittings
  • High accuracy dispensing of ±0.5% or better
  • Pneumatic-driven pumps offer smooth speed control and precise volumetric control

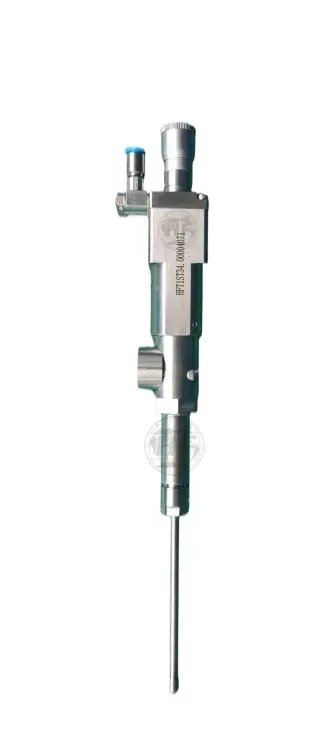

ViscositiesFill Tube SizesFill Tube LengthPitch
Small Diameter Shut-off NozzlesAll viscosities over 20,000 cps with or without particles4.76 mm to 12.7 mmStandard and Custom Lengths from 38.1 mm to 1066 mm25.4 mm
Large Diameter Shut-off NozzlesMedium viscosities over 20,000 cps with or without particles12.7 mm to 38.1 mmStandard and Custom Lengths from 38.1 mm to 1066 mm36.3 mm

PRINCIPLE OF OPERATION

The pumping action of a hose pump is achieved by compressing a circular loop of elastomeric hose with two diametrically opposed rotating shoes. With this rotational motion, fluid is pushed ahead inside a hose compressed and relaxed by shoes mounted on a rotor. When each shoe reaches the end of the loop, the reinforced tube immediately returns to its original shape, ensuring suction and priming, creating a strong vacuum pulling more fluid inside.
