The new SaniForce pump systems are designed to save you time and money by pumping the most difficult materials – quickly and safely. GRACO’s range of drum unloaders is the excellent alternative to strenuous manual scooping. Additionally, its container evacuation systems can handle viscosities up to 2,000,000 cps with a 99% evacuation rate without heating or diluting contents.

For different applications, Graco drum pumps can include an elevator or other bin evacuation options with follower plates and inflatable seals for maximum evacuation efficiency and easy change out of drums and containers.

Design Advantages

  • Field-tested performance – Evacuation rate of up to 99% for medium to high viscosity materials.
  • Faster pumping – Evacuates medium to high viscosity products in less than 5 minutes for a 208-liter drum.
  • Hygienic transfer – Option of including automated controls removes operator interaction, thus preserving product quality and safety.
  • Quick disassembly – Sanitary flange clamps allow quick disassembly for easy cleaning and sanitising, thus minimising downtime.
  • Configurable – Customise your SaniForce Drum Unloading System to suit the exact requirements of your application

Available Options

All-Pumps can customise pumps according to your requirements and specific applications. Get in touch with us today to find the right pump!

  • Portable/mobile models and fixed systems
  • Process automation options
  • 3A Approved models available
  • Food and Pharma grade models available
  • Spare parts
  • Mounting options

Key Specifications

  • Flows up to 34.7 lpm
  • Pressures up to 313.7 bar
MODELS Maximum Fluid Flow Rate @ 60 cpm (l/min)
Maximum Working Pressure (bar)
Motor Series
Hydra-Clean® 23:1 Cart Mount Pneumatic Pressure Washer Package 34.7 156.9 Dura-Flo 2400 Pump
Hydra-Clean® 30:1 Cart Mount Pneumatic Pressure Washer Package 25.9 211.3 Dura-Flo 1800 Pump
Hydra-Clean® 30:1 Cart Mount Pneumatic Pressure Washer Package with Hose Reel 25.9 211.3 Dura-Flo 1800 Pump
Hydra-Clean® 40:1 Cart Mount Pneumatic Pressure Washer Package 17.4 275.8 Dura-Flo 900 Pump
Hydra-Clean® 12:1 Cart Mount Pneumatic Pressure Washer Package 33 86.2 Displacement Pump
Hydra-Clean® 12:1 Wall Mount Pneumatic Pressure Washer Package 33 86.1 Displacement Pump
Hydra-Clean® 23:1 Wall Mount Pneumatic Pressure Washer Package 34.7 156.9 Dura-Flo 2400 Pump
Hydra-Clean® 30:1 Wall Mount Pneumatic Pressure Washer Package 25.9 211.3 Dura-Flo 1800 Pump
Hydra-Clean® Wall Mount Hydraulic Pressure Washer Package - 313.7 Dura-Flo Displacement Pump 1000

Applications

FOOD and BEVERAGE

Juices and flavoured drinks, Salad dressings & condiments, Sauces, Edible oils, Snack food flavourings, Frostings, Beer & wine, Caramels & chocolate syrups, Jams & fruit fillings, Tomato paste, Peanut butter, Meat, Poultry, Yogurt, Cottage cheese, Ice cream ingredients



PHARMACEUTICAL

Medical creams & lotions, Organic reagent, Blood products, Bio pharmaceuticals, Alcohol, Solvent transfer



PERSONAL CARE

Lotions & creams, Cosmetics, High care food

Talk to our experts
Graco Husky AODD Air diaphragm pump 205
All-Pumps offers a complete range of Graco’s drum unloaders, pump elevators, bin evacuation systems, and pump spare parts. Pumping thin or thick materials for food manufacturing, pharmaceutical, or other sanitary fluid, Graco ensures your business will achieve:
Worker Safety
Food Safety
Fast Pumping
Easy Cleaning
Low Maintenance Cost
Easy Reparability

GRACO SANIFORCE DRUM AND BIN UNLOADING RANGE

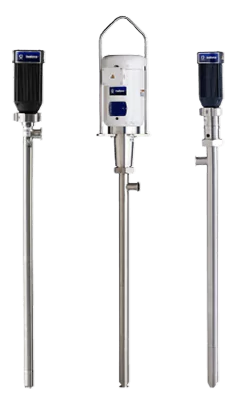

SANIFORCE DRUM PUMPS

The SaniForce range of drum pumps utilise both centrifugal and positive displacement principles and are ideal for moving low to medium viscosity products. They feature lightweight, portable, and easy-to-use electric pumps that can be conveniently positioned on top of the drums that need to be unloaded.
Parts & Features
Application
  • Simple knockdown design
  • Plug and play
  • Fruit juice concentrates
  • Edible oils Condiments & dressings
  • Lotions & creams
Model Viscosity Flow
Centrifugal type  Up to 1,000 cps Up to 132 lpm
Centrifugal with washdown motor  Up to 50,000 cps  Up to 132 lpm
Progressive cavity  Up to 100,000 cps  Up to 26 lpm

SANIFORCE PISTON PUMPS

Optimise the transfer of any low to medium viscosity ingredient with Graco’s range of piston pumps. These powerful and durable pumps effectively help reduce ingredient waste, boost transfer time, and eliminate safety concerns that leader to worker injury.
Parts & Features
Application
  • Removable FDA-compliant shroud
  • Fluid pressures up to 83 bar
  • Quick knockdown lowers
  • Three pump lengths for pails, drums, and bins
  • Flowable lotion
  • Tomato paste
  • Peanut butter
  • Caramel and corn syrup
Model Viscosity Flow
SaniForce 2:1  Up to 50,000 cps  Up to 5.7 lpm at 60 cpm 
SaniForce 6:1  Up to 100,000 cps  Up to 15 lpm at 60 cpm
SaniForce 5:1  Up to 100,000 cps  Up to 53 lpm at 60 cpm 
SaniForce 12:1  Up to 100,000 cps  Up to 32 lpm at 60 cpm 

SANIFORCE ELEVATORS

The SaniForce Elevator system is the best alternative to unloading less than two containers of medium viscosity ingredients per hour, usually required in small to medium-sized facilities. It is designed to lower pumps into bins, drums, and totes and lift them out after transferring ingredients.
Parts & Features
Application
  • Safe and ergonomic design
  • Designed to lower pumps into and lift pumps out of drums, bins, and totes
  • Flowable lotion
  • Fruit juice concentrates
  • Condiments & dressings
Model Viscosity Flow
2:1 Ratio SaniForce Elevator with Cart & Handle Up to 150,000 cps  53 lpm
5:1 Ratio SaniForce Elevator with Cart & Handle  Up to 150,000 cps  53 lpm
6:1 Ratio Elevator with Cart & Handle Up to 150,000 cps  53 lpm

SANIFORCE PAIL UNLOADERS

Graco SaniForce pail unloaders make it simple to transfer medium and high viscosity fluids from ingredient pails. They eliminate strain and injuries caused by the repetitive carrying and unloading of pails, thus reducing production delays. Their sanitary design makes them ideal for most food, beverage and personal care applications.
Parts & Features
Key Specifications
Application
  • Portable and quick to assemble and disassemble
  • Safer and faster container change-out
  • One size follower plate and seal accommodate 5 or 7 gallon pails
  • Max Viscosity : Up to 100,000 cps 
  • Max Flow : 15 lpm
  • Icing, frostings & fondants
  • Caramels & chocolate
  • Fruit Paste & fillings Cosmetics

SANIFORCE DRUM UNLOADERS

The Graco SaniForce 2.0 Drum Unloader systems use either a piston or diaphragm pump. Both can evacuate medium to high viscosity ingredients from 55-gallon drums without diluting or heating them. Standard with an inflatable ram plate seal, the SaniForce Sanitary Drum Unloader also allows for quick replacement of the empty container. Finally, the modular design of the Graco drum unloading solutions allow a great amount of flexibility when building a system.
Parts & Features
Application
  • Sanitary flange clamps for quick disassembly
  • Liner guard prevents bags from entering pump
  • One-size follower plate and seal accommodate straight-sided and tapered drums
  • Tomato paste
  • Cosmetics
  • Peanut butter
  • Jams and jellies
  • Toothpaste
Model Viscosity Flow
SaniForce Piston Pump Drum Unloaders: SaniForce 5:1, 6:1 or 12:1 Piston Pumps Up to 1,000,000 cps  53 lpm 
SaniForce Diaphragm Pump Drum Unloaders: SaniForce 1590, 2150, or 3150 HS Diaphragm Pumps Up to 100,000 cps  568 lpm

SANIFORCE BIN EVACUATION SYSTEMS

Graco bin evacuation systems are designed with out-of-the-box features and components that protect food from contamination. They are equipped with a pump ram with follower plate and inflatable seal that protects ingredients from exposure to external contamination and bacteria, thus ensuring maximum safety compared to dumping and scooping. Graco bin evacuation systems are the perfect solutions for medium to high viscosity ingredients.
Parts & Features
Key Specifications
Application
  • Sanitary flange clamps for quick disassembly
  • Liner guard prevents bags from entering pump

Available with diaphragm or piston pumps

Available with:

  • SaniForce 5:1
  • 12:1 Piston Pumps
  • SaniForce 3150 HS Diaphragm Pump
  • Max Viscosity : Up to 1,000,000 cps
  • Max Flow : 64 to 1,135 lpm
  • Tomato paste
  • Cosmetics
  • Peanut butter
  • Jams and jellies
  • Toothpaste

Brochures & Manuals

PRINCIPLE OF OPERATION

AIR OPERATED DIAPHRAGM PUMPS
PISTON PUMPS
ELECTRIC DRUM PUMPS
Graco Air operated double diaphragm (AODD) pumps use compressed air as a power source. The compressed air is shifted from one chamber and then to the other side by a linked shaft. This movement allows the chambers to move simultaneously. This back-and-forth motion forces liquid out of one chamber and into the discharge piping while the other chamber is being filled with liquid at the same time. These pumps use reciprocating elastomeric diaphragms and check valves to pump fluid. The liquid chambers are filled and emptied by fluid that is drawn through a common inlet and discharged through a single outlet.
A piston pump’s working principle is similar to a positive displacement pump’s, operating with assistance from a pumping mechanism force to increase the volume of the liquid. Graco’s piston pumps are lift type. In this type of pump, the piston’s upward stroke causes the fluid to be drawn to the lower portion of the cylinder with the help of a control device called valve. Meanwhile, the downward stroke lets the fluid flow to the upper cylinder portion with the help of control devices which are arranged in the piston. After fluid is drawn upward, it is released outside the pump from the higher portion of the cylinder through a spout.
Electrically operated drum pumps work by fitting into the top opening of a drum by way of its narrow tube, which houses a vertical shaft. The drum pump consists of a small motor attached to the shaft, which runs on an AC or DC electric motor. The motor turns on the drum pump via a switch. When the pump is actuated, its pumping mechanism comes from the base of the tube, which sucks up the content. The base of the tube relies on either a small centrifugal pump impeller or a rotor. Because of its modern design and quick transfer action, Graco electric drum pumps are the pump of choice in chemical plants, manufacturing plants, food and pharmaceutical processing plants, automotive shops, and other processing plants.
