Roto’s Standard PC Pumps

Roto’s Standard PC Pumps

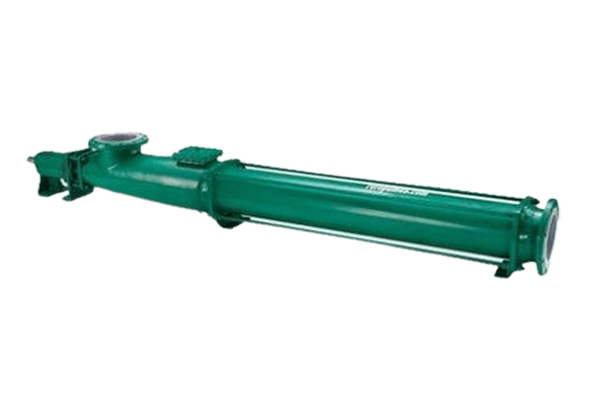

Roto’s standard progressing cavity pump range features the Xtra Value Series. These pumps are made to handle difficult fluids with ease. They are designed and engineered based on the modular concept but incorporated with next-generation pumping elements such as innovative rotor, stator, solid shaft and double sealed Cardan Universal joints to enhance their performance and lengthen their service life. Available in bareshaft and close-coupled configuration, the Roto Xtra Value pumps are highly dependable and preferred by many industries.

industrial

Know more about Roto
Standard Pc Series

Design Advantages
  • Compact and robust construction
  • Lower maintenance costs
  • Uniform, metered, and non-pulsating flow
  • Self-priming, works on snore, doesn’t need a foot valve
  • Non-clog and can handle solids in suspension
  • Reversible, silent, zero product contamination
Available Options

We customise pumps according to your specific application. Get in touch with us today to get a complete list of your options.



  • 6 and 8 stage variations
  • Material options
  • Shaft sealing
  • Spare parts
  • Accessories
  • Baseplate
Key Specifications
  • Max capacity: 420 m3/h
  • Max pressure: 48 bar
  • Max Viscosity: 3000000 cst

SERIES

Capacity (m3/hr)

Pressure (bar)

Viscosities

Solid Handling

Small Capacity RD

17

48

30000cst

Up to 7%

Medium to Large Capacity RM

250

48

30000cst

Up to 7%

Extra Large Capacity RL

420

6

15000cst

Up to 7%

Widethroat WM

150

48

125000cst

Up to 12%

KM Widethroat with Bridgebreaker

100

48

3000000cst

Up to 40%

DM Series

86

24

5000cst

Up to 7%

Applications

Paper Industry

  • Pulp making process
  • Pulp preparation
  • Papermaking process
  • Paper coating process
  • Sample fluids: Sodium hydroxide, Sodium sulphide, Sizing chemicals, Talkum, Starch, China Clay

Sugar Industry

  • Cane-sugar production
  • Flocculants
  • Lime slurry
  • Magma
  • Beet root-sugar production
  • Juice cleaning
  • Crystallisation
  • Molasses separation

Agriculture

  • Agricultural slurries
  • Animal feed transfer
  • Grain mash
  • Liquid manure
  • Surface water transfer
  • syrup

Paint, Varnish, Ink

  • acrylic solution
  • caustic soda lye
  • coloring agent
  • lacquer
  • latex
  • oil based paint
  • oil paste

Mining

  • cement grout
  • dirty water
  • coal water mixture
  • clay and mineral
  • dewatering
  • mortar with fine
  • rock dust

Chemical

  • acetone
  • acids
  • adhesive
  • cyanide
  • detergent
  • nitric acid
  • resin
STANDARD PC
INDUSTRIAL

Our range of available
Chemsafe pumps

SMALL CAPACITY RD

MEDIUM TO LARGE CAPACITY RM

EXTRA LARGE CAPACITY RL

WIDETHROAT WM

KM WIDETHROAT WITH BRIDGEBREAKER

DM SERIES

PUMP

Principle of Operation

Progressive Cavity Pumps

ROTO’s PCP pump comprises a precision-machined single external helix metallic rotor that rotates inside an internal double helix elastomer stator. The special construction and material of this pump allow it to create a sealing line along the axis of the rotor that is maintained in both static and dynamic conditions. As the rotor turns within the stator and fluid enters the pump, cavities are formed and progress as fluid is moved from the suction to the discharge side.
